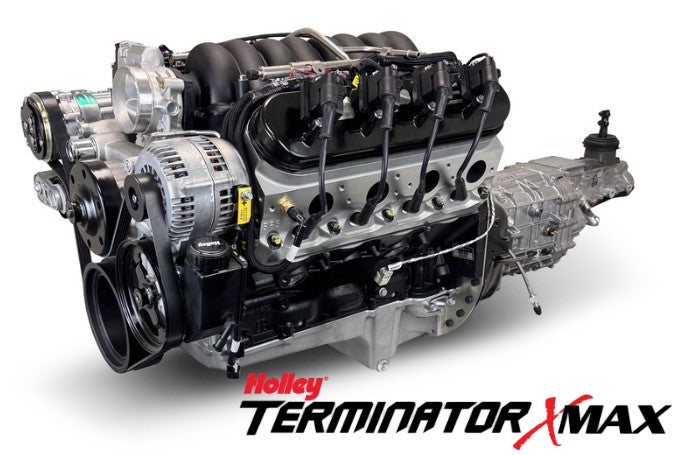

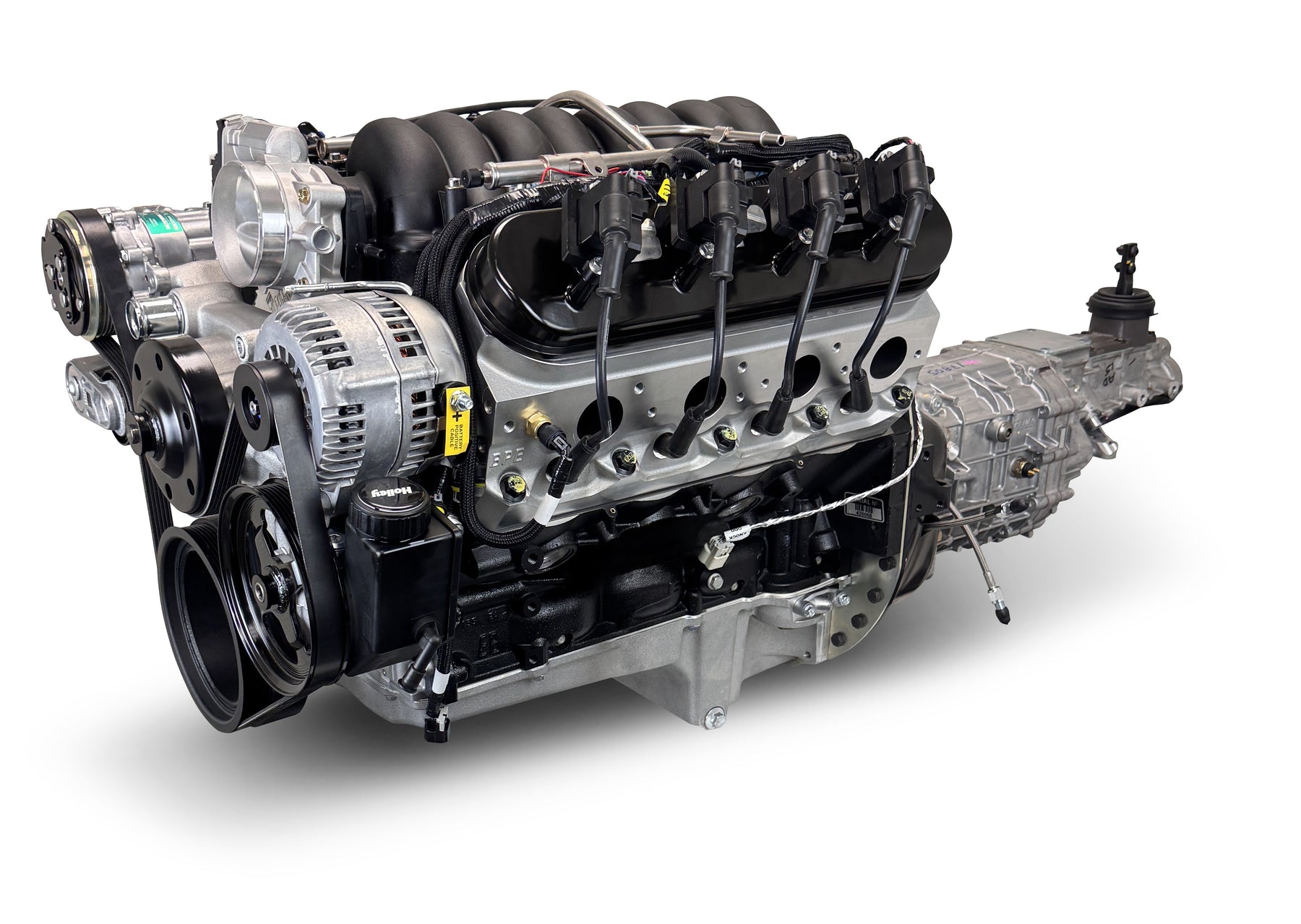

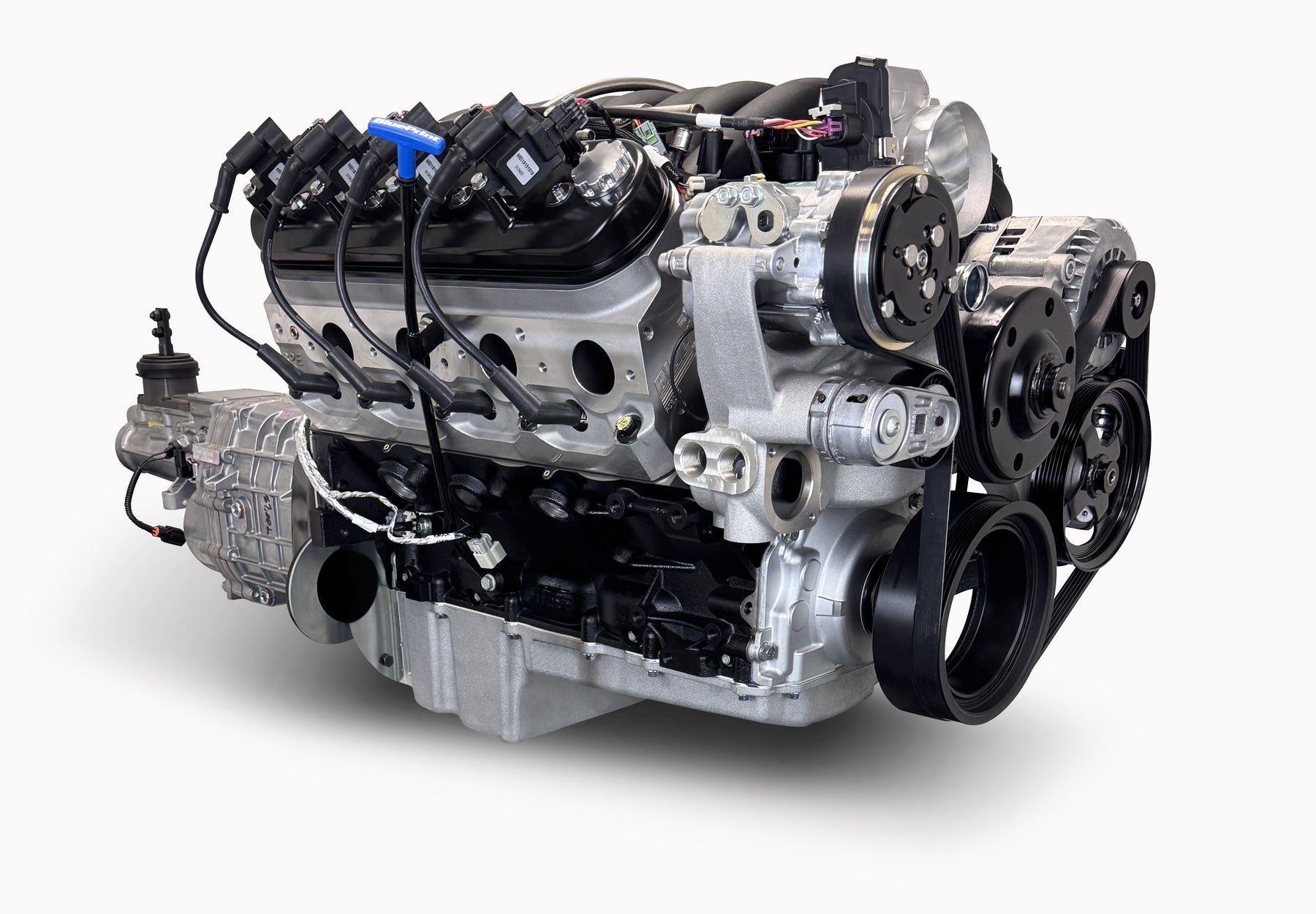

GM LS Compatible 376 c.i. Engine and TKX Manual Transmission - 530 Horsepower - Standard Edition Builder Series - Natural Pulley Kit - Holley Terminator X EFI System

SKU: BLS3763KTKX

GM LS Compatible 376 c.i. Engine and TKX Manual Transmission - 530 Horsepower - Standard Edition Builder Series - Natural Pulley Kit - Holley Terminator X EFI System

SKU: BLS3763KTKX

Horsepower & Torque: 530 Horepower / 495 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.7:1

Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust and 225 Intake / 238 Exhaust Duration @ .050 – 113 LSA

Pistons: Hypereutectic

Crankshaft: Nodular Iron Crank - 3.622" Stroke and 6.098" Rods

Fuel Injection: Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System

/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 530 Horsepower / 495 ft. lbs. Torque
  • Compression Ratio: 10.7:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Hypereutectic Pistons
  • Nodular Iron Crankshaft

Block:

  • BluePrint Engines High Strength Cast Iron (LSX Style) Block
  • Increased Deck Thickness and Strength Webbing
  • Utilizes OEM LS3 Front and Rear Covers
  • Improved Water Jacket Design
  • Extended Cylinder Skirt
  • 1-Piece Rear Main Seal
  • Priority Main Oiling
  • 6-Bolt Main

 Rotating Assembly:

  • Nodular Iron Crankshaft
  • 3.622" Stroke
  • 6.098" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 72cc chamber
  • 2.165" Intake - 1.600" Exhaust Valves
  • 259cc Intake - 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .612 Intake - .585 Exhaust Lift
  • 225 Intake - 238 Exhaust Duration
  • @.050-113 Degree Lobe Separation, 110 ICL

Also Includes:

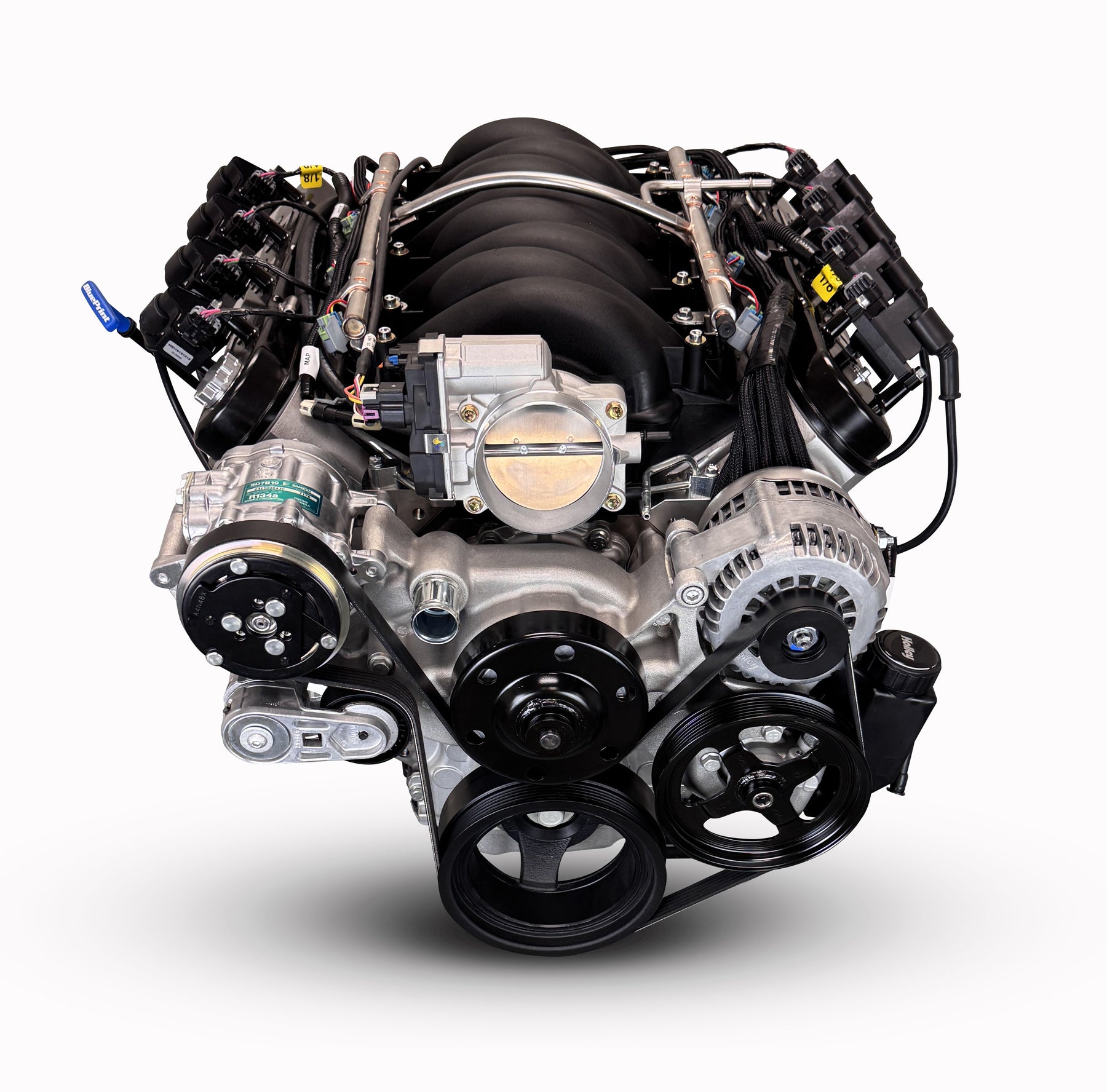

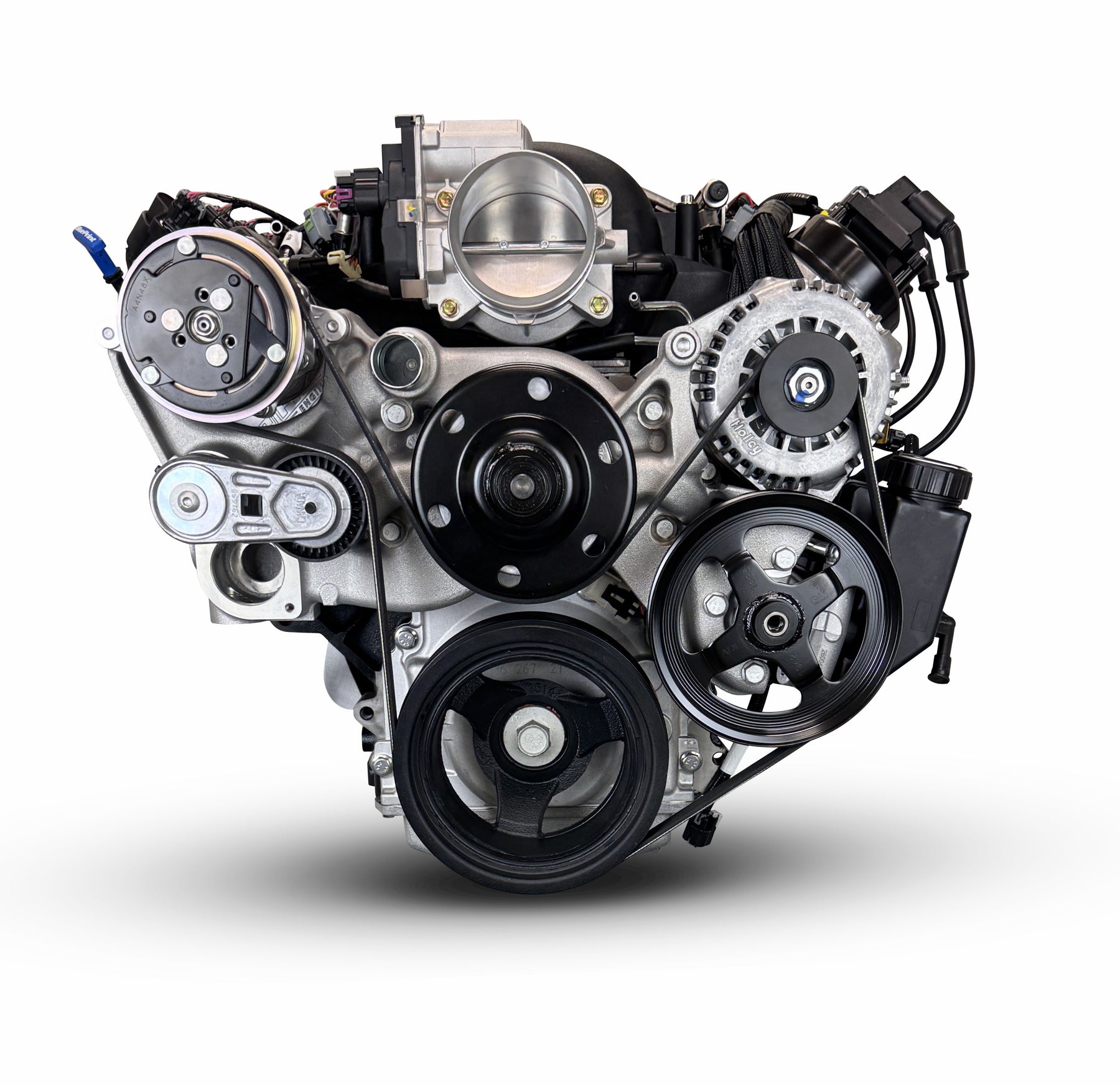

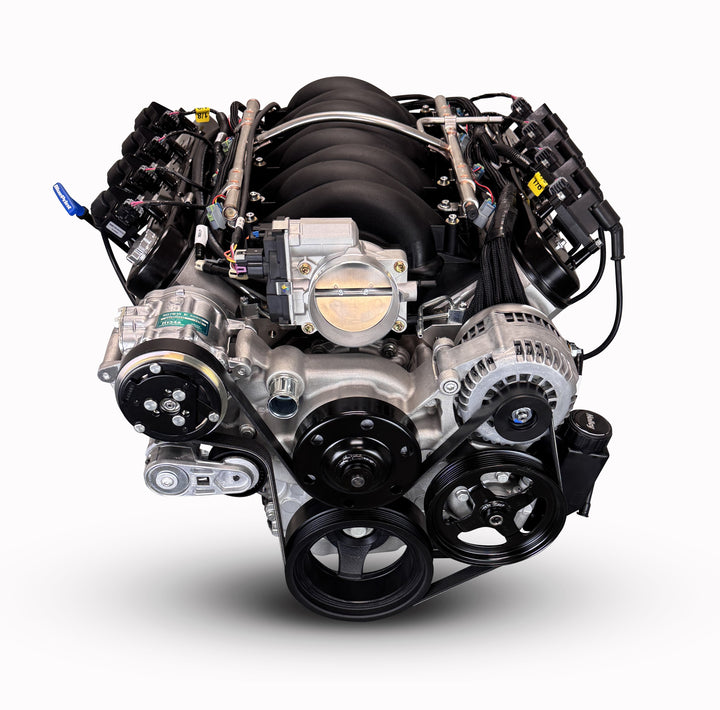

  • Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor

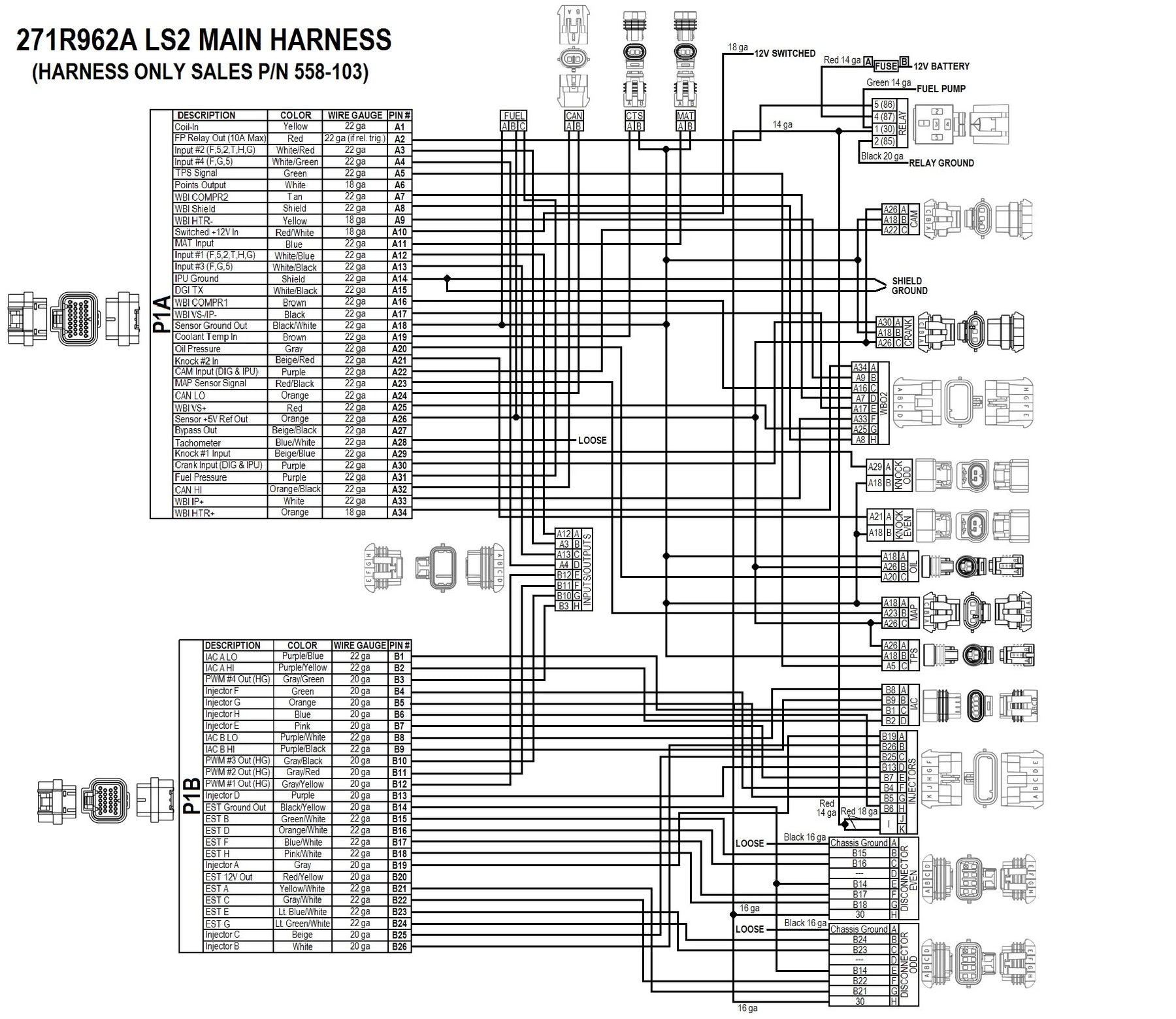

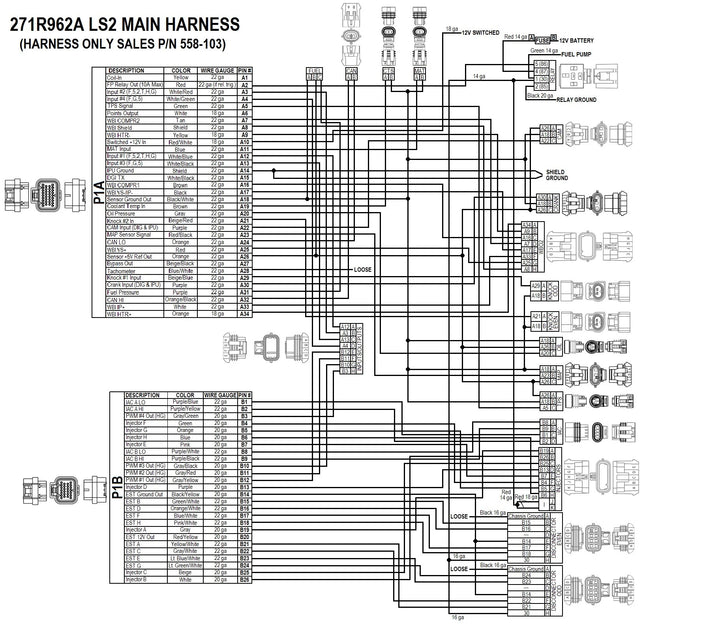

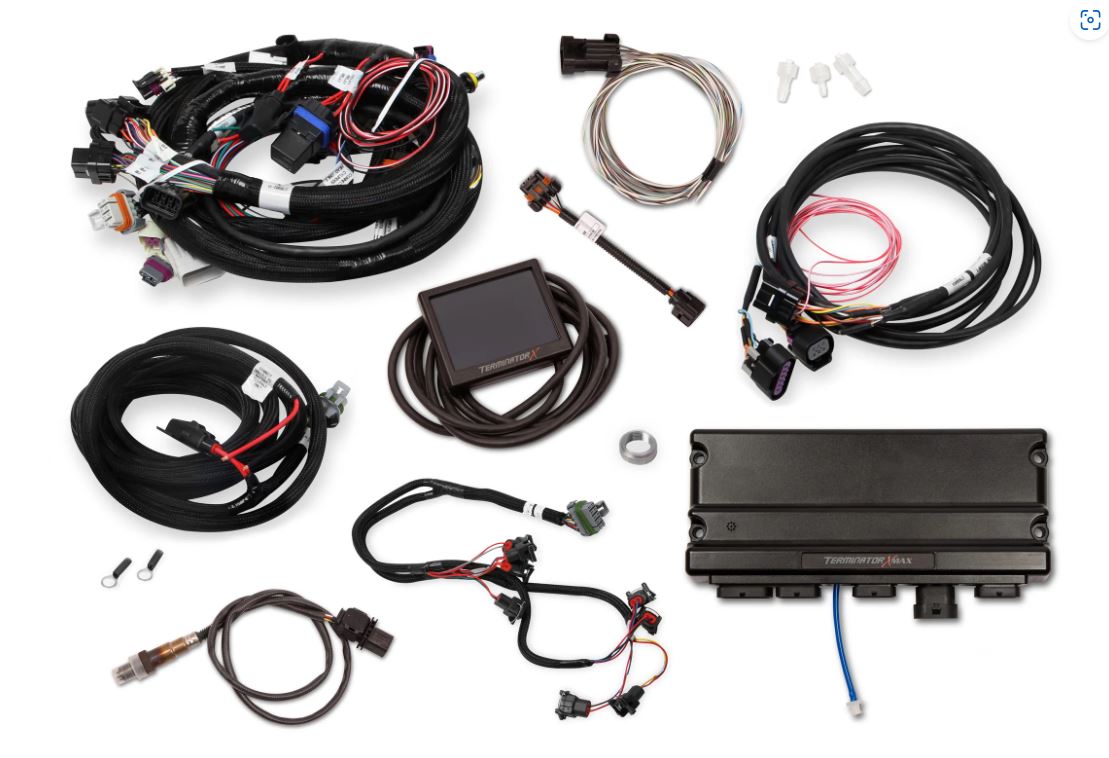

  • Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System (550-931)
  • BluePrint Engines Fuel Injectors and Rail
  • Low Profile Swap Oil Pan - BPP81073
  • DBW Throttle Body - BPP12191019
  • Loaded Intake Manifold
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Coil Packs

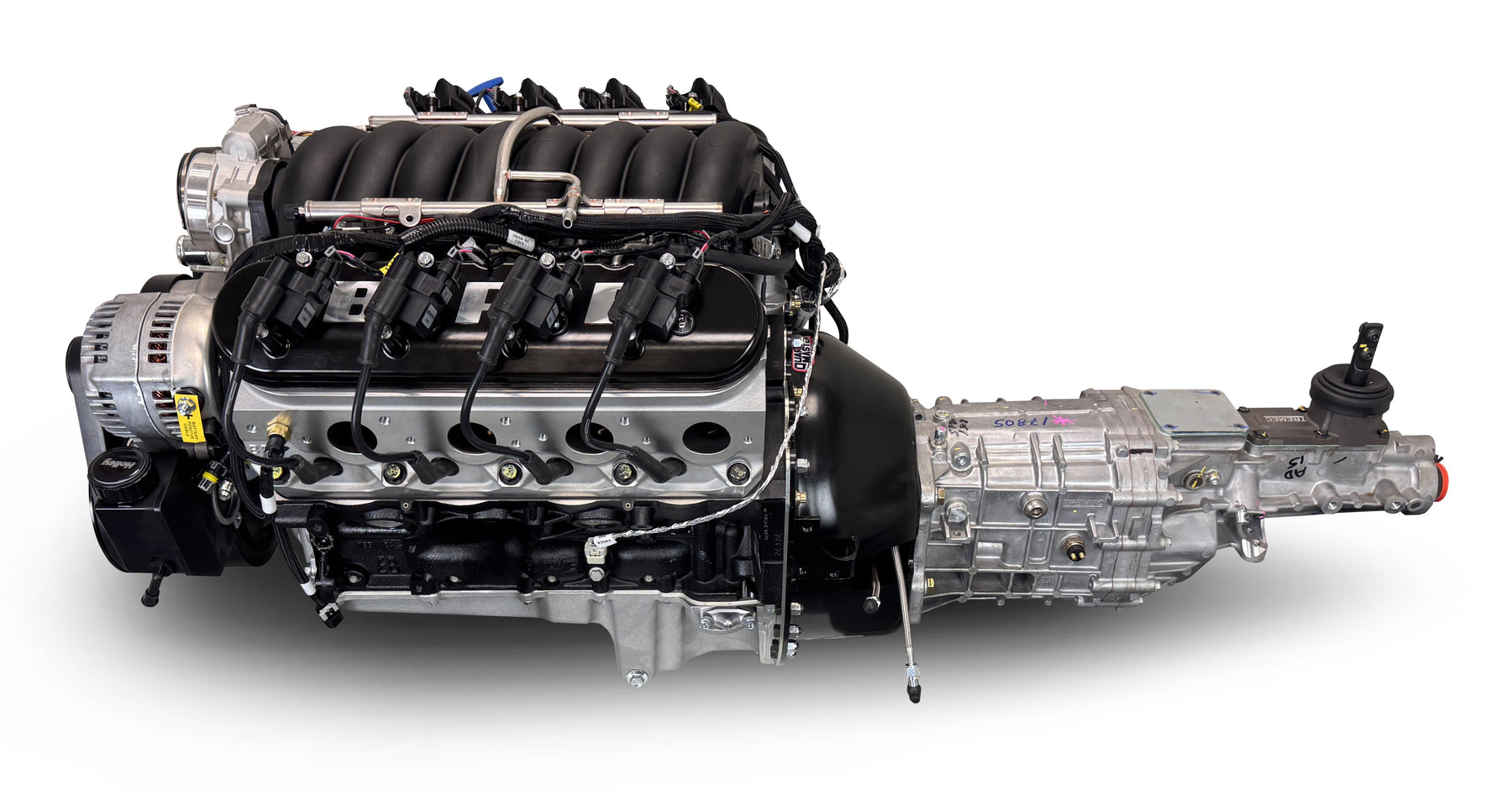

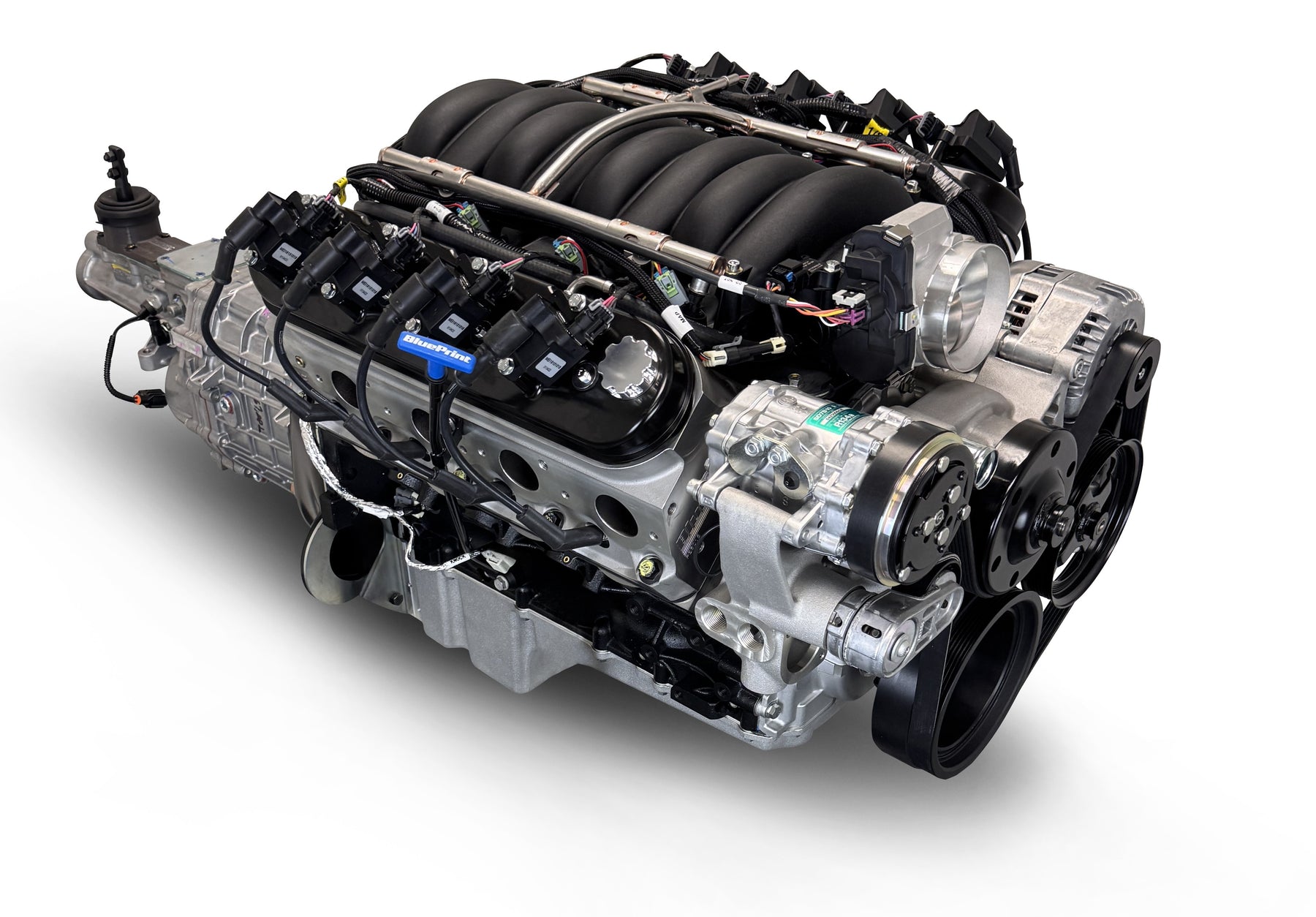

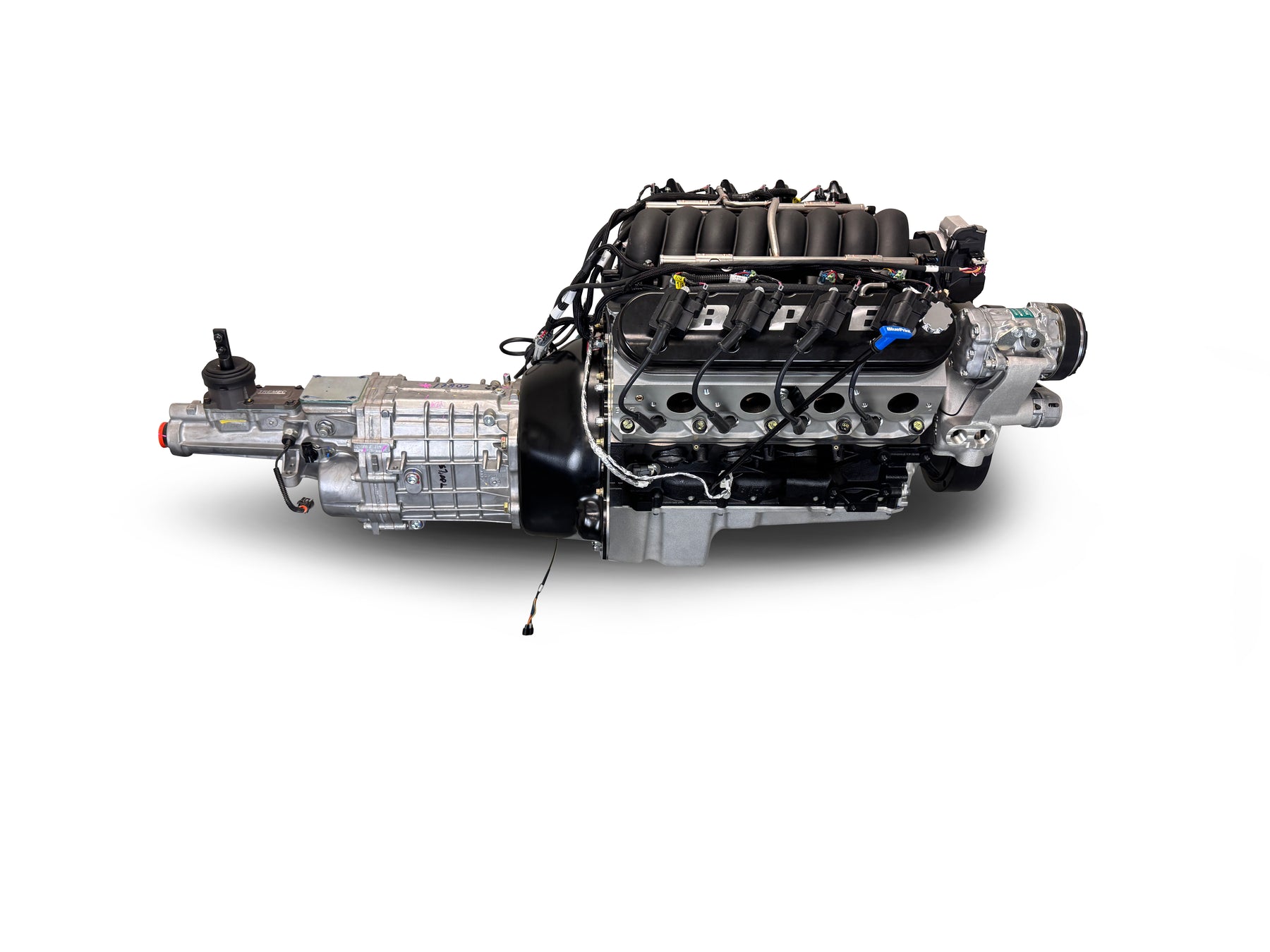

Assembled with Complete TKX Five Speed Transmission Package:

  • Mcleod Super Street Pro Twin Disc Clutch
  • Hydraulic Throw Out Bearing
  • Bell Housing
  • Billet Flywheel
  • Starter
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.68:1

Notes:

  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
  • Engine/Trans Package Ships assembled


    Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    Part Number: BLS3763KTKX

    Fuel Delivery Type: Fuel Injection

    Spark Plug: Champion 3015

    Spark Plug Gap: .040"

    Harmonic Balancer: Non-Weighted

    Flexplate/Flywheel: Non-Weighted

    Stall Converter: 2200+

    Intake Manifold: N/A

    Fuel Recommendation: 91 Octane

    Timing (Initial/Total Advance): 34° Total Timing

    Firing Order: 1,8,7,2,6,5,4,3

    Recommended Oil Filter: BPPB160

    Recommended Break in Oil: BPP710

    Recommended Oil: BPP10W30

    Engine features a 58x reluctor wheel and 4x cam sensor. Knock sensor provision located on side of block. Cam sensor located in timing cover. utilizes EV6 type injector

    Header Partners:
    Click here for our Header Partners and recommendations.

    Click here to download a copy of the Installation Guide that came with your BluePrint engine.

    BETTER THAN THE REST.

    The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

    We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

    For a detailed overview of our warranty, click here.

    IT ALL COMES DOWN TO RESULTS.

    We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

    BRAGGING RIGHTS INCLUDED!

    A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

    This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
