BLUEPRINT ENGINES BUILDER SERIES Mopar 408CI Stroker Crate Engine and 727 Auto Transmission | Small Block Chrysler | Roller Cam | Deluxe Dressed w/ Pulleys - Polished

$15,599.00

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
Part # BC408K727

Description

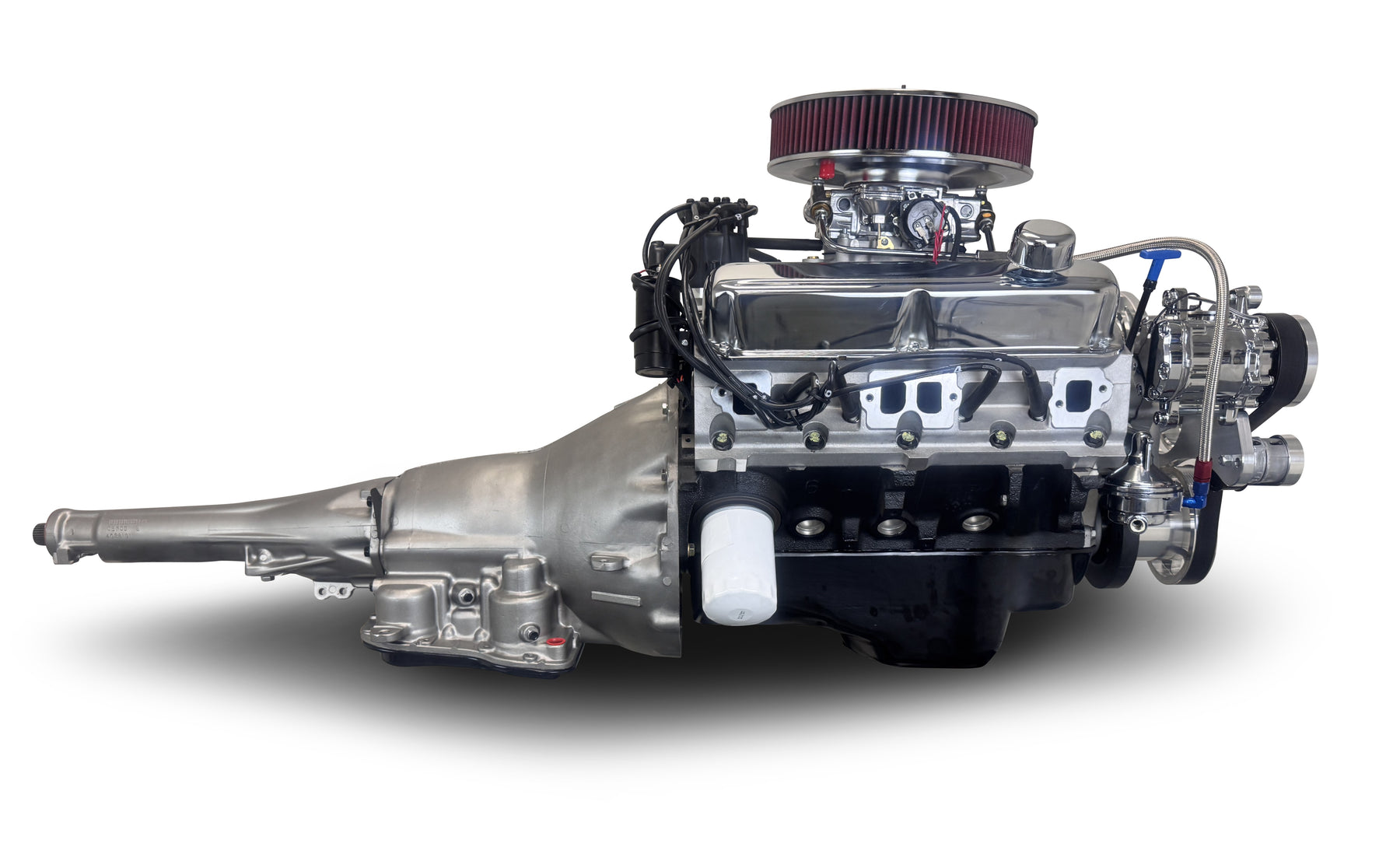

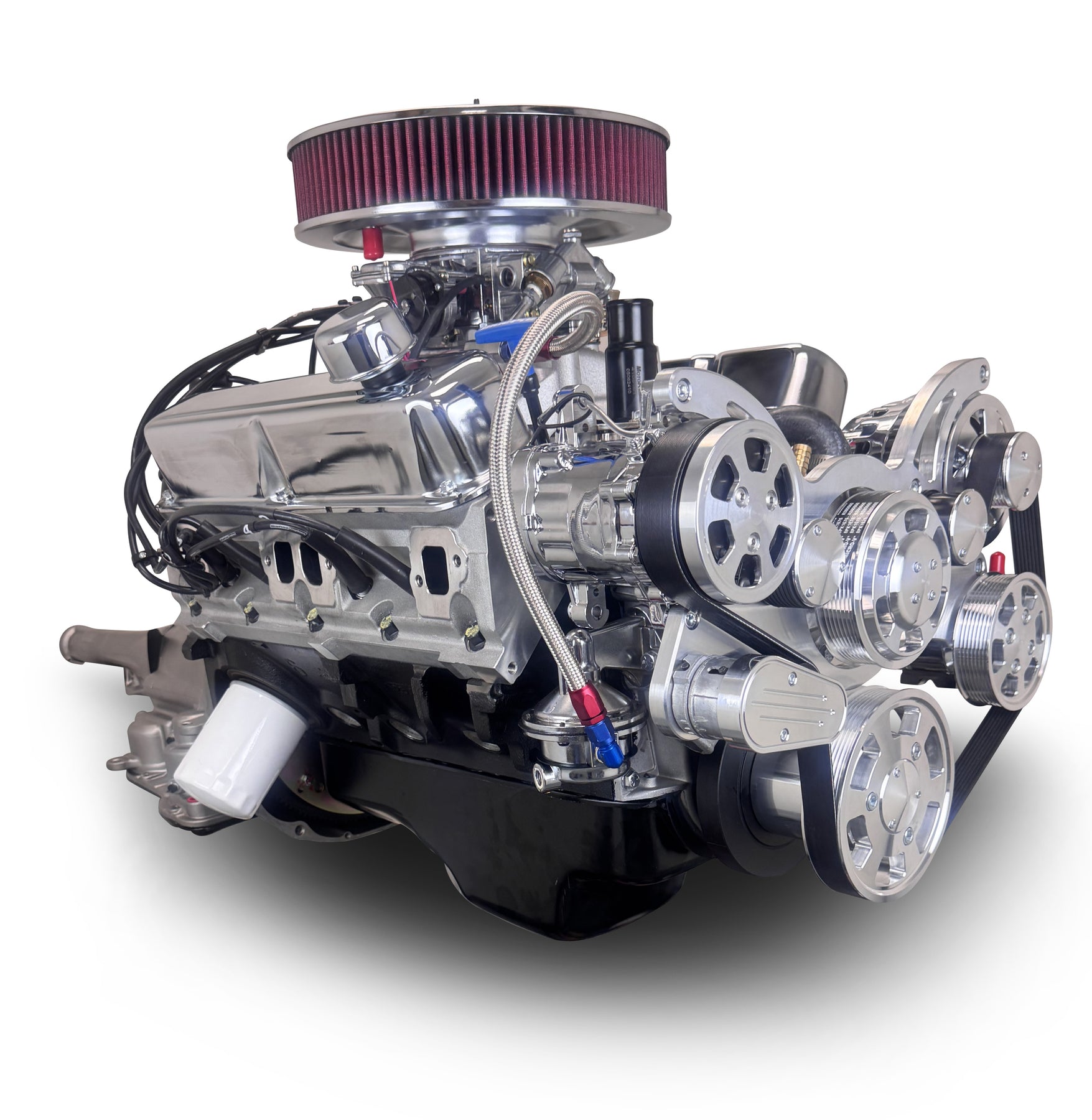

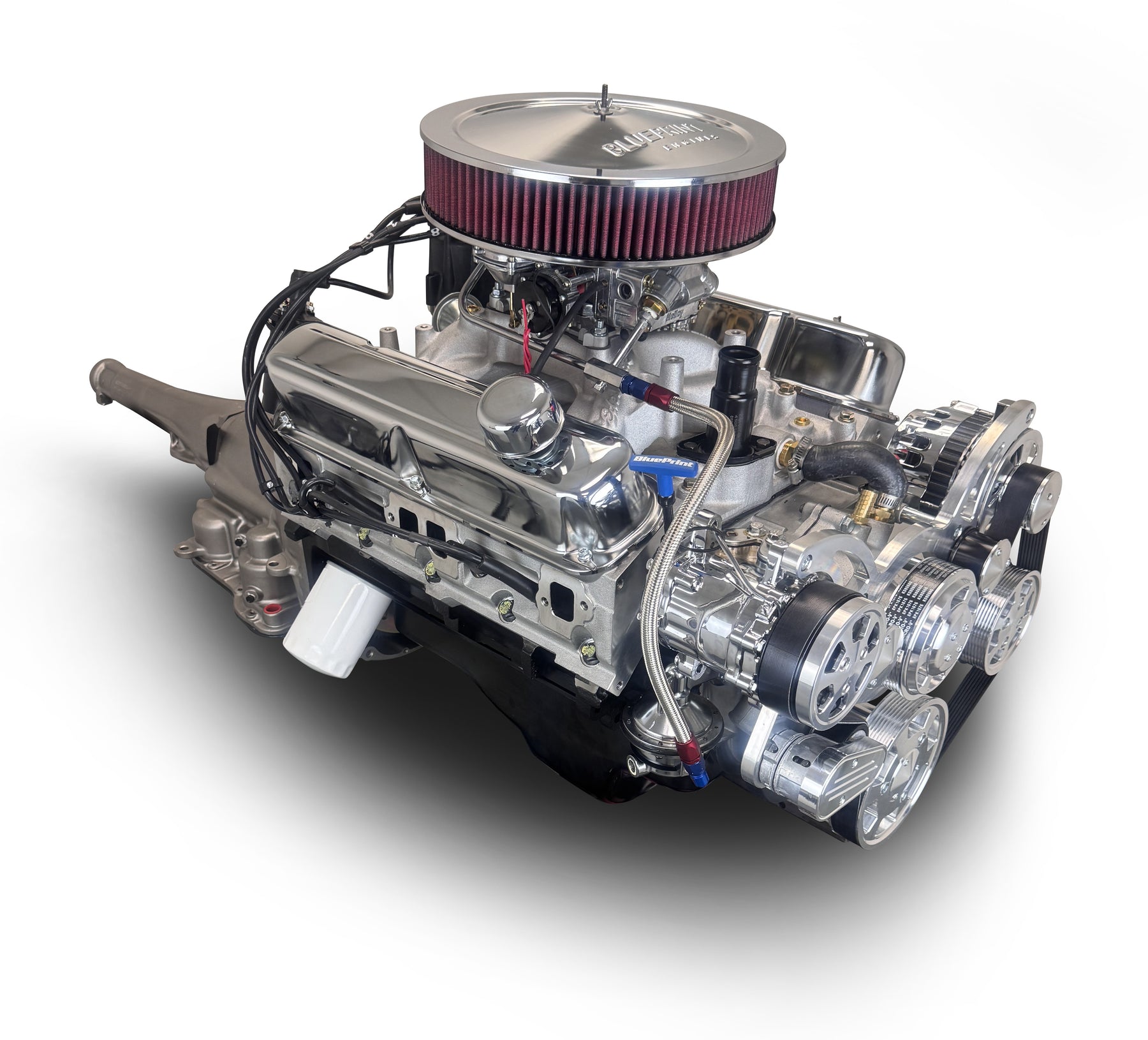

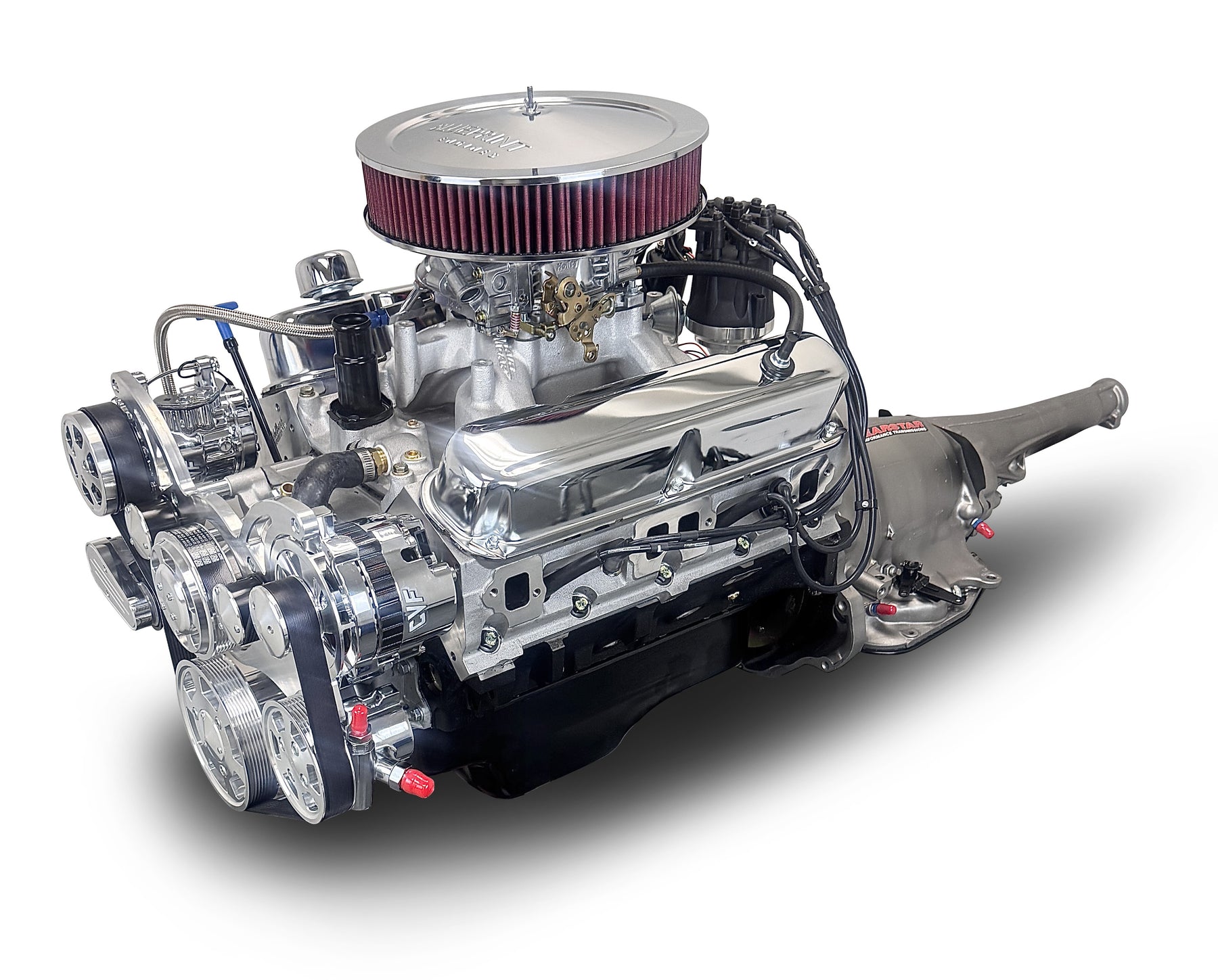

Complete Mopar 408 Stroker, with Polished Accessory Drive and 727 transmission

Dyno Tested Warranty
  • HP & Torque: 465 HP / 494 FT LBS
    Compression Ratio: 10:1
    Aluminum Heads
    Roller Cam
    Cast Steel Crank
    Forged Pistons

Block:

  • Hand picked seasoned Magnum block
    Square and parallel decked
    Align honed main bearing bore
    Cylinders honed on computer controlled machine to within .0002 straightness and roundness
    Cylinders are sonic tested for thickness
    2-Bolt Main
    4.000" Bored .040" over
    2-Piece Rear Main Seal
    Mech fuel pump provision: Yes

Rotating Assembly:

  • New Steel crankshaft
    4.000" Stroke
    Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
    Forged pistons
    External

Cylinder Heads:

  • BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
  • Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
  • Aluminum Roller Rockers
  • 2.02" intake/1.60" exhaust valves
    176cc intake/75cc exhaust runners

Cam Specs:

  • Cam Type: Roller
    .580 Intake .577 Exhaust
    235 Intake / 242 Exhaust duration
    @ .050 - 110 degree lobe separation

Ignition Timing:

  • 34 degrees total at 4000 RPM

Also Includes:

  • Valve covers
  • oil pan and timing cover
  • water pump
  • plugs and wires
  • distributor
  • waterneck and thermostat
  • fuel pump and fuel line
  • harmonic balancer,
  • air cleaner.
  • Complete Billet front accessory drive with A/C, P/S, and WP.
  • installed performance 727 transmission with 2200-2600 Stall
  • 10 inch torque converter
  • Performance Build Transmission.
    Dyno test results shipped with engine
  • Starter Motor

Warranty:

  • 30 month / 50,000 mile

Notes:


  • Holley Sniper can be added for an additional $800. Contact your sales rep.
  • Non A/C front accessory drives are also available.


This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
Part # BC408K727

Description

Complete Mopar 408 Stroker, with Polished Accessory Drive and 727 transmission

Dyno Tested Warranty
  • HP & Torque: 465 HP / 494 FT LBS
    Compression Ratio: 10:1
    Aluminum Heads
    Roller Cam
    Cast Steel Crank
    Forged Pistons

Block:

  • Hand picked seasoned Magnum block
    Square and parallel decked
    Align honed main bearing bore
    Cylinders honed on computer controlled machine to within .0002 straightness and roundness
    Cylinders are sonic tested for thickness
    2-Bolt Main
    4.000" Bored .040" over
    2-Piece Rear Main Seal
    Mech fuel pump provision: Yes

Rotating Assembly:

  • New Steel crankshaft
    4.000" Stroke
    Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
    Forged pistons
    External

Cylinder Heads:

  • BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
  • Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
  • Aluminum Roller Rockers
  • 2.02" intake/1.60" exhaust valves
    176cc intake/75cc exhaust runners

Cam Specs:

  • Cam Type: Roller
    .580 Intake .577 Exhaust
    235 Intake / 242 Exhaust duration
    @ .050 - 110 degree lobe separation

Ignition Timing:

  • 34 degrees total at 4000 RPM

Also Includes:

  • Valve covers
  • oil pan and timing cover
  • water pump
  • plugs and wires
  • distributor
  • waterneck and thermostat
  • fuel pump and fuel line
  • harmonic balancer,
  • air cleaner.
  • Complete Billet front accessory drive with A/C, P/S, and WP.
  • installed performance 727 transmission with 2200-2600 Stall
  • 10 inch torque converter
  • Performance Build Transmission.
    Dyno test results shipped with engine
  • Starter Motor

Warranty:

  • 30 month / 50,000 mile

Notes:


  • Holley Sniper can be added for an additional $800. Contact your sales rep.
  • Non A/C front accessory drives are also available.


Customer Reviews

Based on 1 review Write a review

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.



Part Number: BPC4083CT

Fuel Delivery Type: Carbureted, 750cfm

Spark Plug: BPP7938 NGK 7938 BKR5E

Spark Plug Gap: .035"

Harmonic Balancer: 360 EXTERNALLY BALANCED '93-'97, 7.25" Diameter

Flexplate/Flywheel: Pre-Magnum, Weighed 360

Stall Converter: 2000-2400 rpm

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Recommended Break in Oil : BPP710 (Click Here)

Recommended Service Oil : BPP10W30 (Click Here)

Recommended Oil Filter ; BPP51515 (Click Here)

Total Oil capacity with production oil pan, and Correct BPP51515 Filter : 5 Quarts



Header Partners: HUSLER 770-664-8880   Sanderson 650-583-4590   Lemons 805-239-8998

Click here for more Header Info.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.
