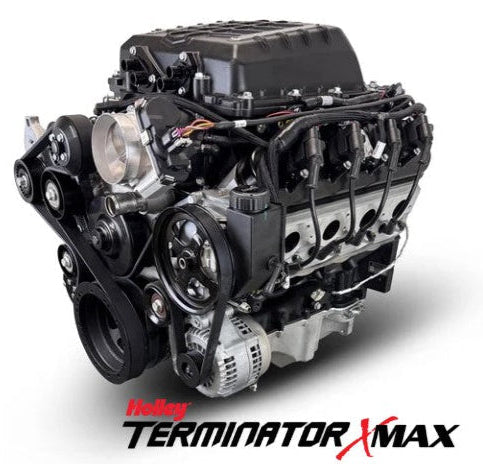

Description:
- Horsepower & Torque: 700 Horsepower / 640 FT LBS
- Compression Ratio: 9.5:1
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron 6.2L Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 4.070" Bore
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Forged Crankshaft
- 3.622" Stroke
- 6.125" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 70cc Chamber
- 2.165" Intake / 1.600" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Cam Type: Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation
Also Includes:

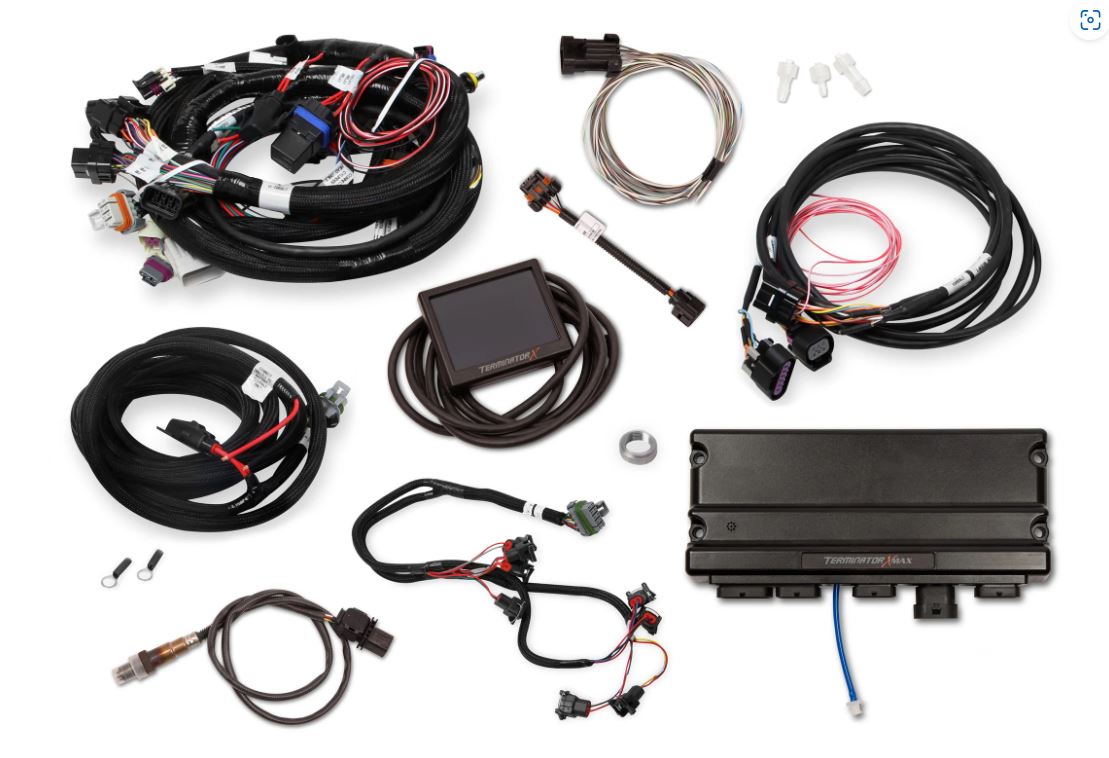

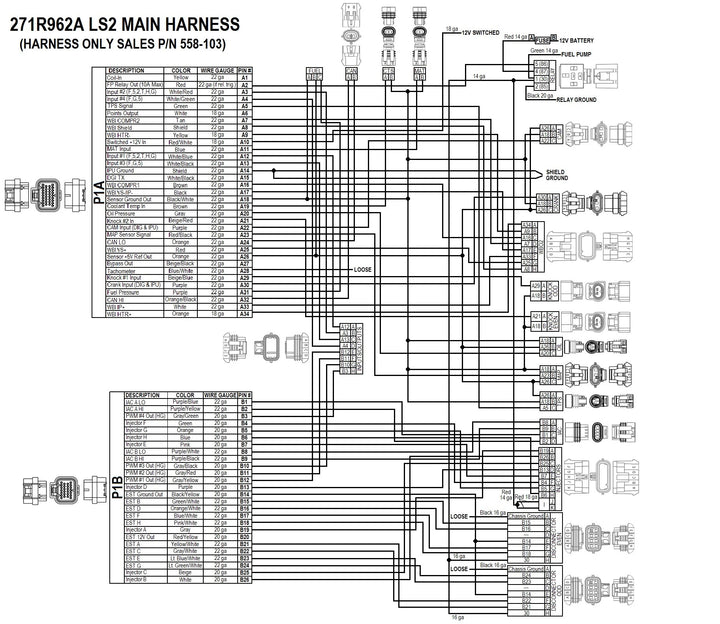

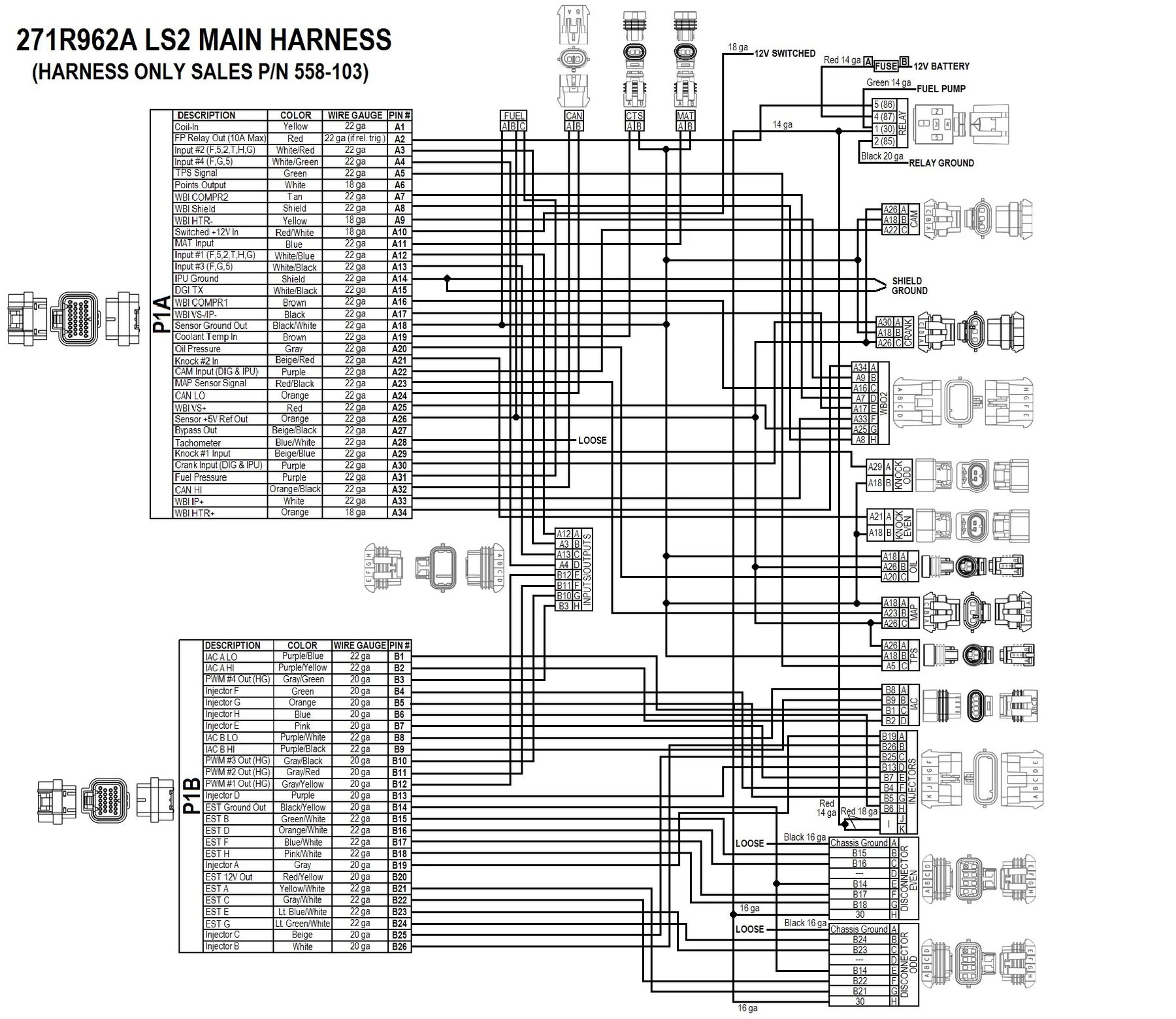

- Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
- Magnuson TVS2650 Super Charger
- Coil Packs
- Valve Covers
- Oil Pan
- All Sensors Required for Engine to Run
- Drive by Wire Throttle Body
- Throttle Pedal
- Timing Cover
- Spark Plugs & Wires
- Harmonic Balancer
- Front Accessory Drive with Power Steering Pump, Water Pump, Alternator, and Air Compressor
Notes:
- Not for use in pollution-controlled vehicles.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.


BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
