GM Small Block Compatible 400 c.i. Engine and 700R4 Automatic Transmission - 500 Horsepower - Standard Edition Builder Series with Polished Pulley Kit - Carbureted

SKU: B400K700

Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.3:1

Camshaft: Hydraulic Roller Cam - .555 Intake / .576 Exhaust and 236 Intake / 242 Exhaust Duration @ .050 – 110 LSA

Pistons: Forged

Crankshaft: Forged Crank - 3.750" Stroke and OEM Type 5.700" Rods

/
  • Secure payments
  • Financing available at checkout with Affirm

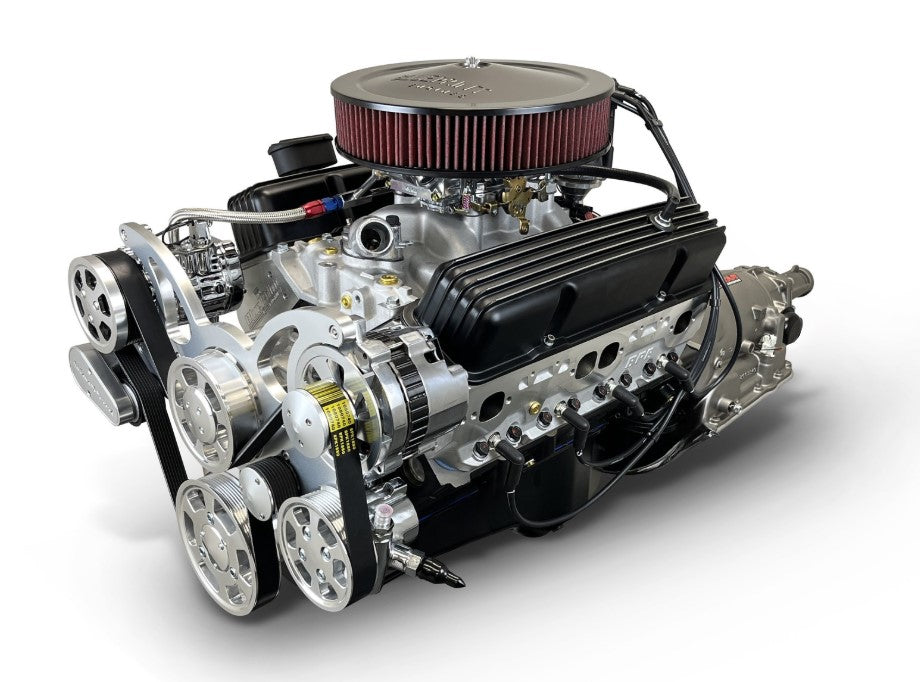

**This package features a carbureted engine and automatic transmission. EFI and manual transmission pictured as rep image.

Description:

  • Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque
  • Compression Ratio: 10.3:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.125" Bore
  • 1-Piece Rear Main Seal
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage

Rotating Assembly:

  • New BluePrint Forged Crankshaft
  • 3.750" Stroke
  • Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Forged Pistons
  • Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP8103
  • 64cc Chamber
  • 2.08" Intake / 1.60" Exhaust Valves
  • 220cc Intake / 67cc Exhaust Runners

Cam Specs:

  • Cam Type: Roller
  • .555 Intake / .576 Exhaust Lift
  • 236 Intake / 242 Exhaust Duration
  • @ .050-110 Degree Lobe Separation

Ignition Timing:

  • 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

  • Holley 850cfm Double Pumper Carburetor w/ Manual Choke
  • Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
  • Intake Manifold Dual Plane, Satin Aluminum
  • Valve Covers
  • Oil Pan
  • Timing Cover
  • Fuel Pump
  • Spark Plugs and Wires
  • Thermostat and Thermostat Housing
  • Oil Filter
  • Plug Wire Separators

Assembled with Complete 700r4 Automatic Transmission Package:

  • 700R4 Complete Package
  • 2200-2400 Stall Torque Converter
  • Flex Plate
  • Starter

Notes:

  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
  • Package Ships assembled as pictured.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM


Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: B400K700

Fuel Delivery Type: 850 CFM Carburetor

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP350 - Non Weighted, 8" diameter

Flexplate/Flywheel: Weighted, 1 pc RMS

Stall Converter: 2400+

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Notes: Recommended break in oil for your BluePrint Crate Engine:BPP710, Not for EGR

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
