Ford SB Compatible 347 c.i. Engine - 415 HP - Deluxe Dressed with Polished Pulley Kit - Fuel Injected
Ford SB Compatible 347 c.i. Engine - 415 HP - Deluxe Dressed with Polished Pulley Kit - Fuel Injected
Ford SB Compatible 347 c.i. Engine - 415 HP - Deluxe Dressed with Polished Pulley Kit - Fuel Injected

Ford SB Compatible 347 c.i. Engine - 415 HP - Deluxe Dressed with Polished Pulley Kit - Fuel Injected

SKU: BP3479CTFK

Ford SB Compatible 347 c.i. Engine - 415 HP - Deluxe Dressed with Polished Pulley Kit - Fuel Injected

SKU: BP3479CTFK

HP & Torque: 415 HP / 415 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050 - 112° LSA

Pistons: Forged

Crankshaft: Steel Crank - 3.400" Stroke and Forged 5.400" Rods

Regular price $10,449.00
/
  • Secure payments

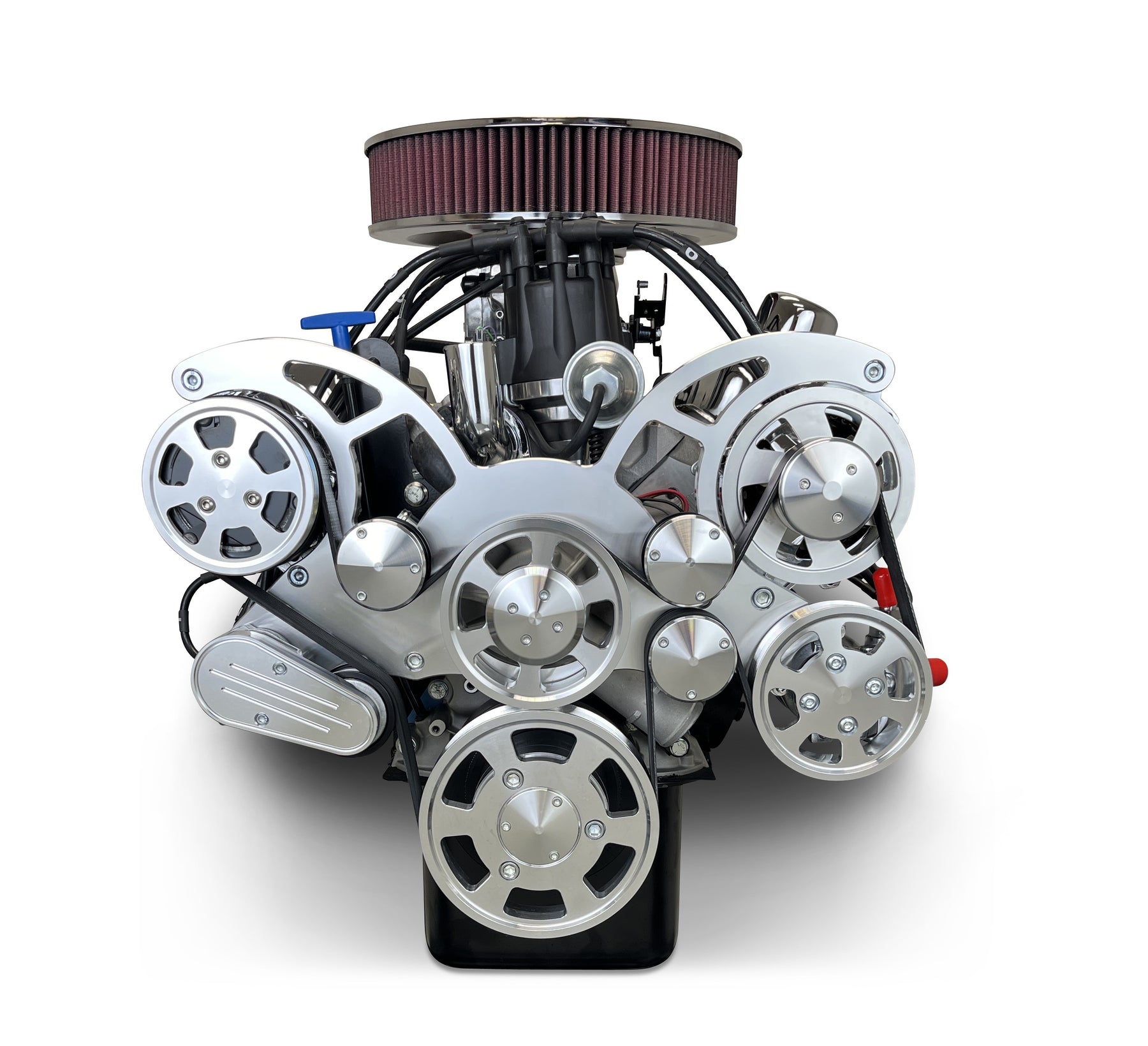

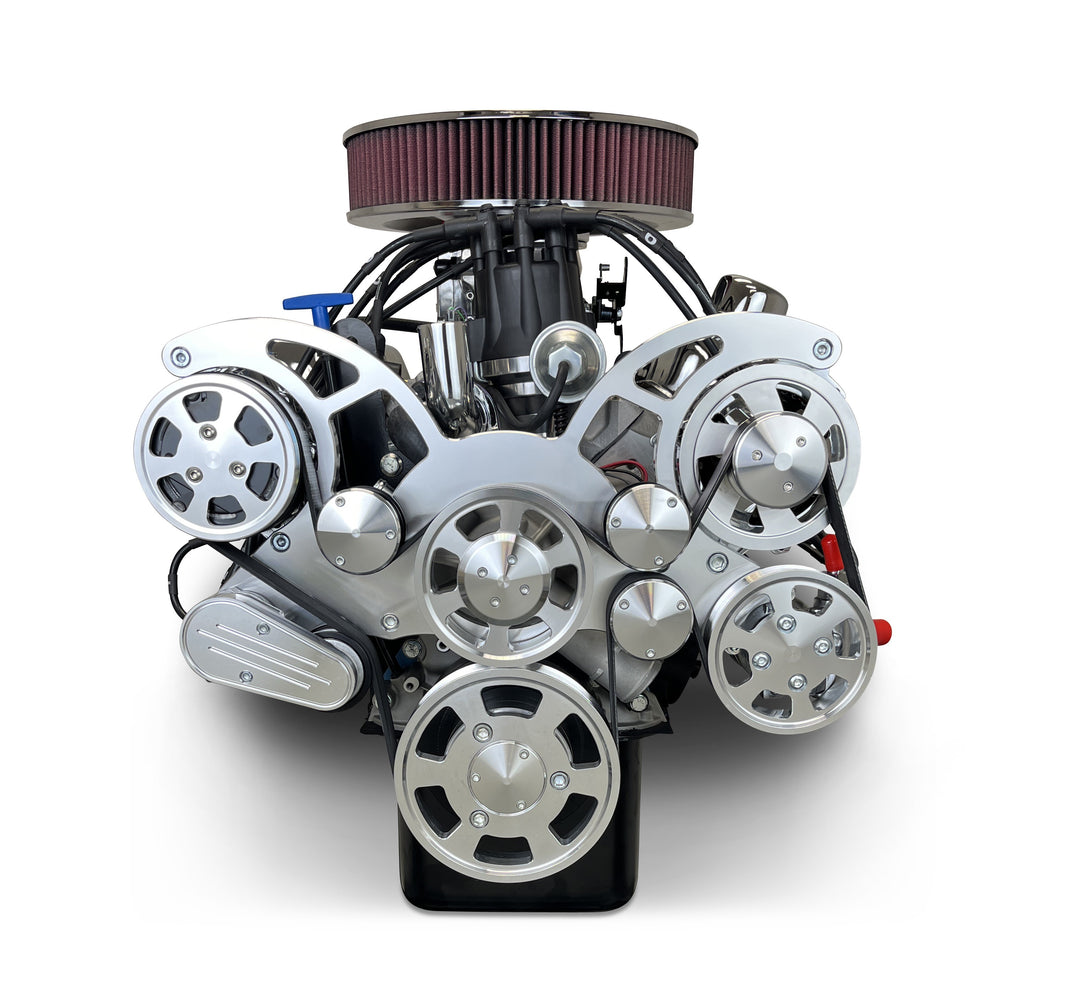

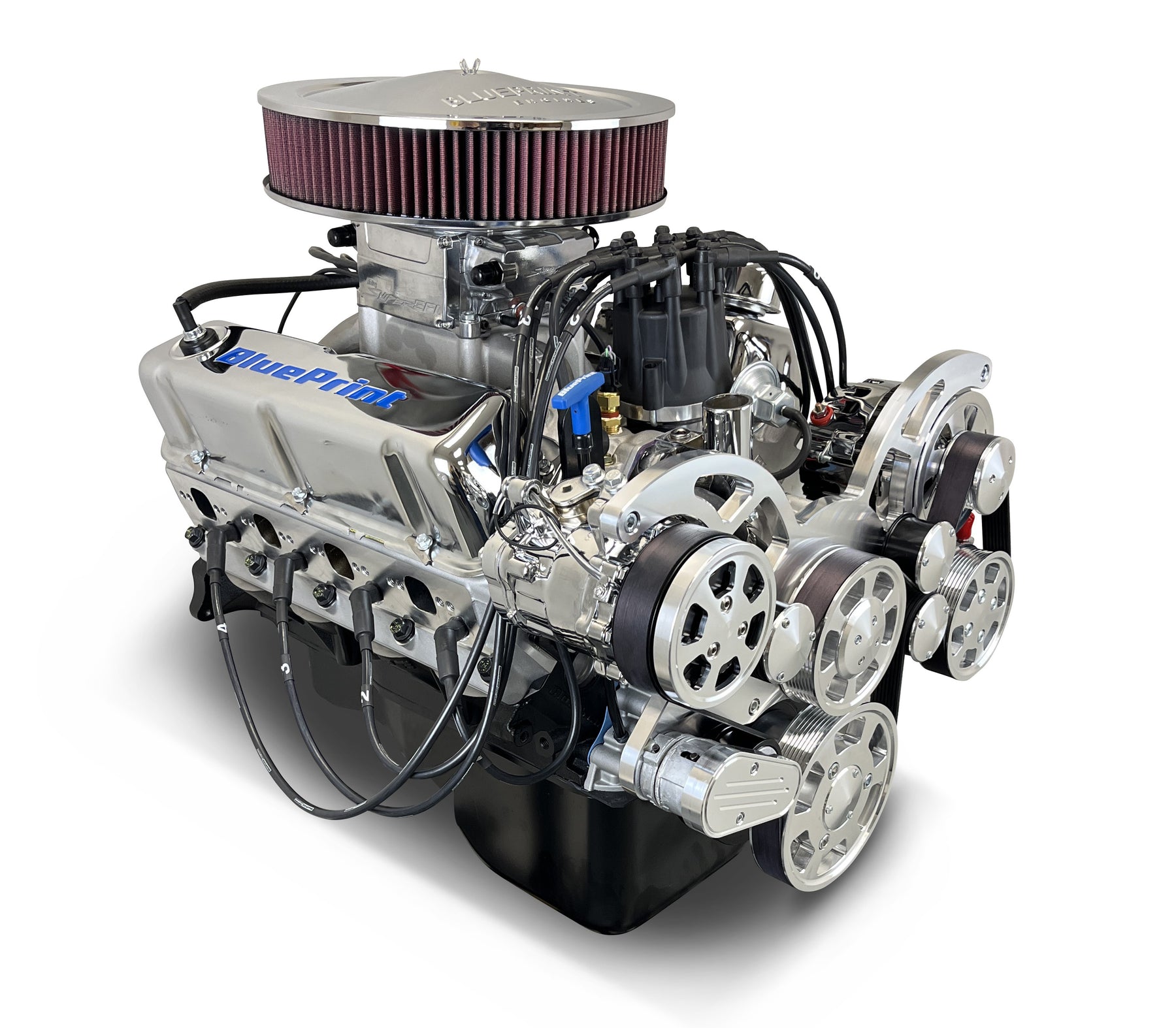

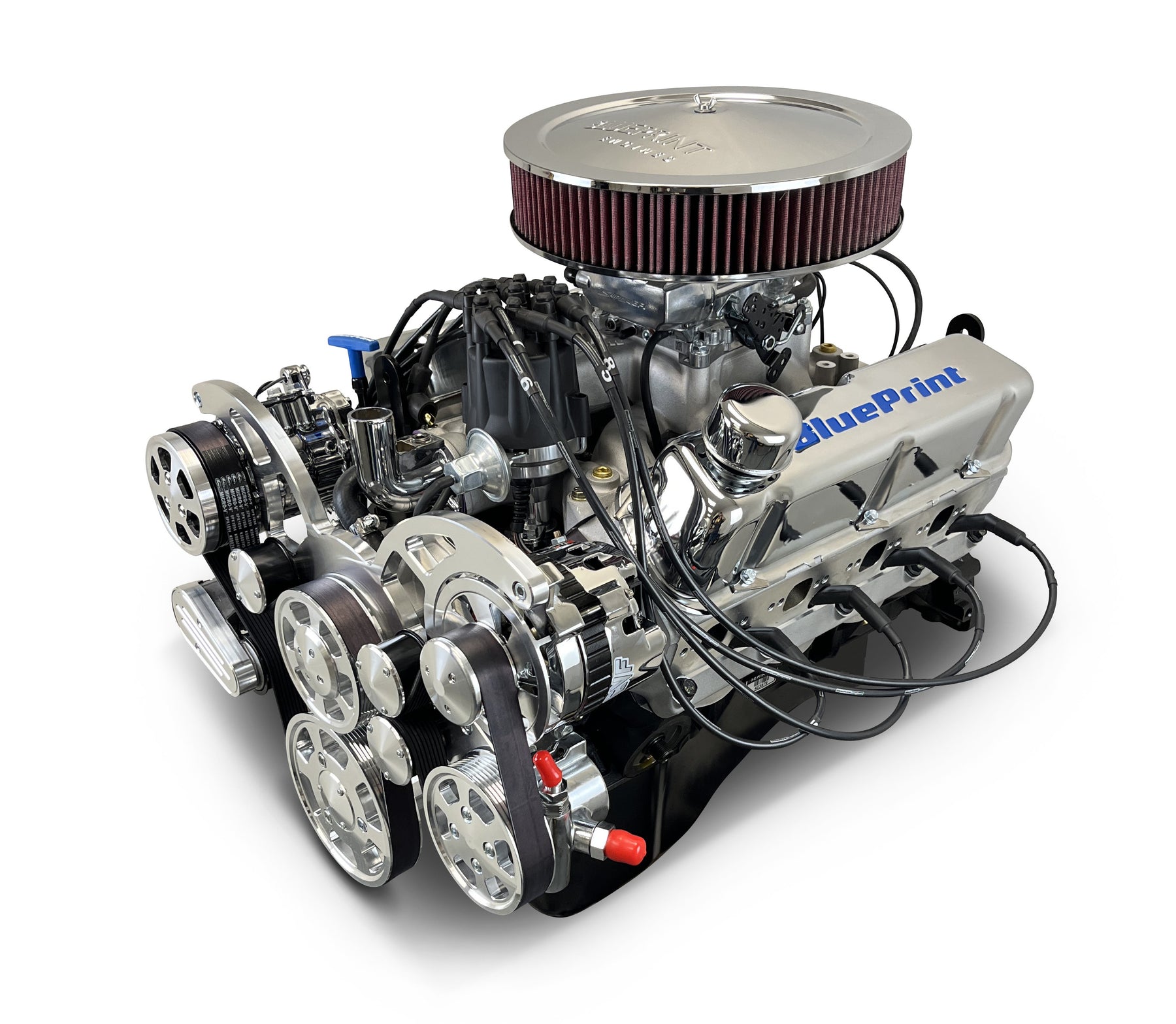

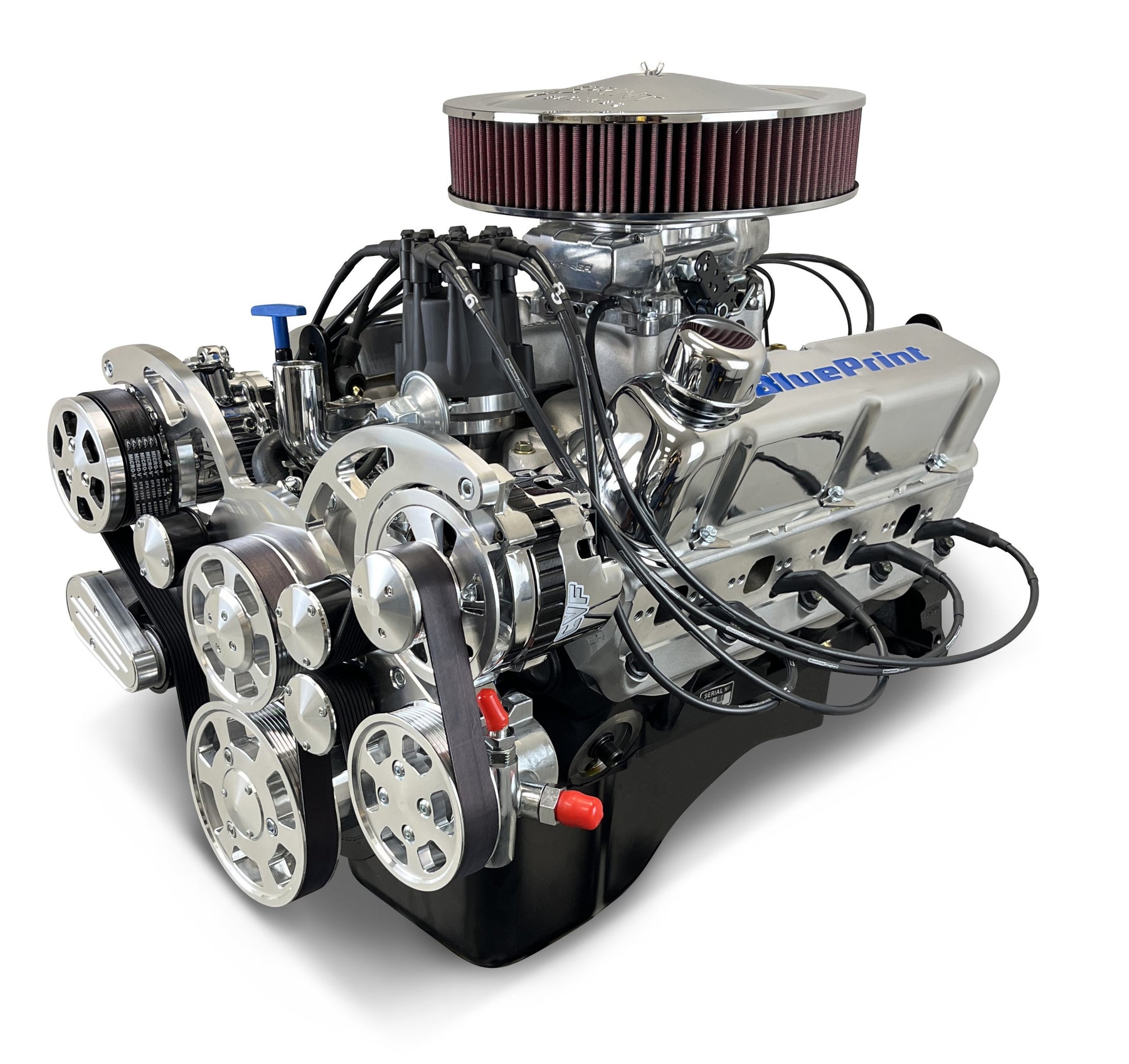

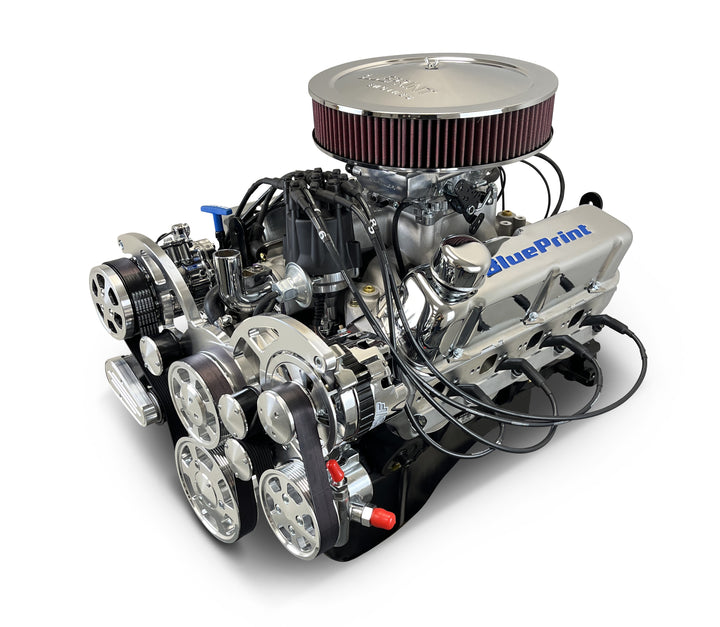

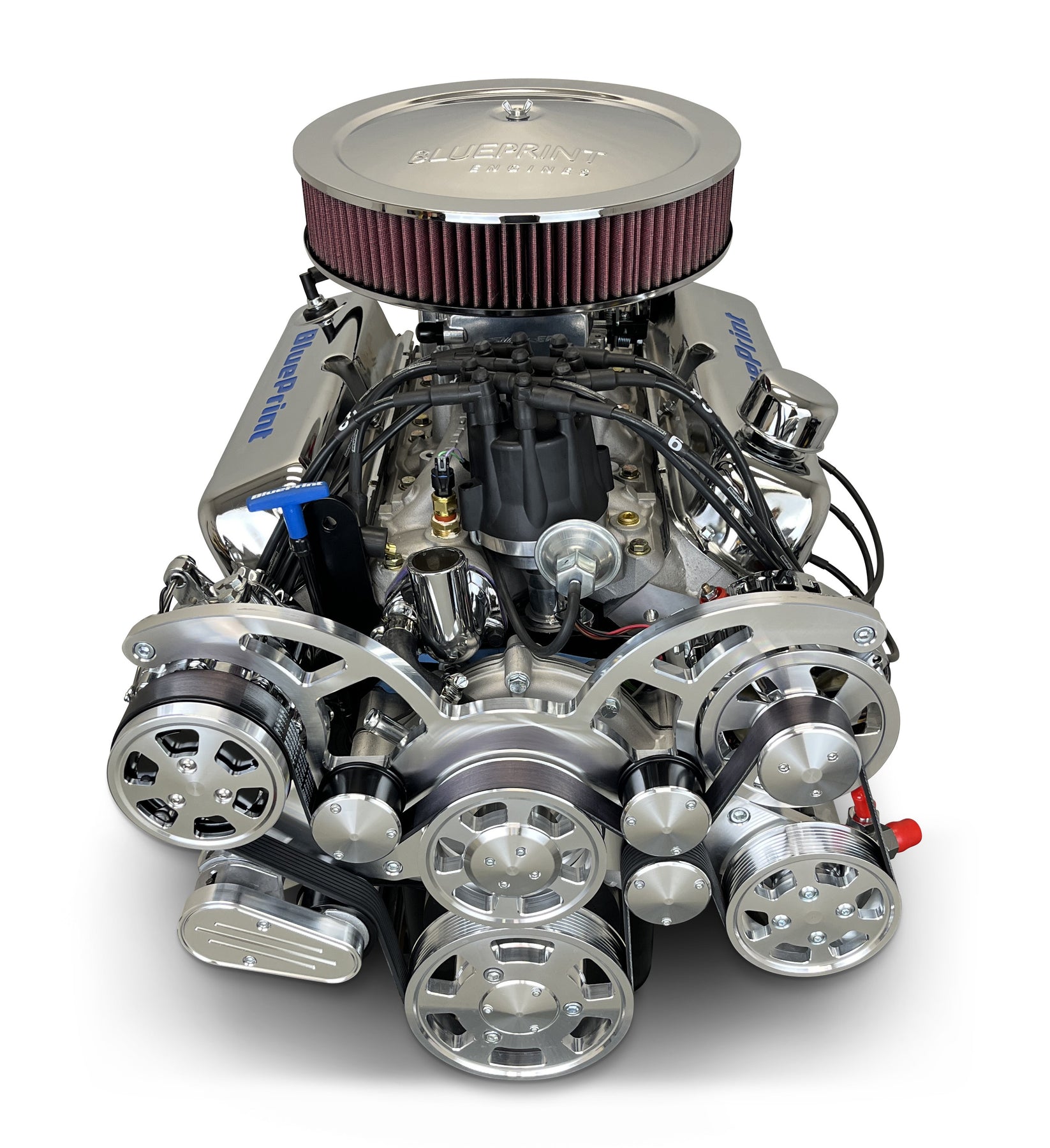

*Please note - fuel injected engine will be delivered, but carbureted engine is pictured.

Description:

  • HP & Torque: 415 HP / 415 FT LBS
  • Compression ratio: 10.0:1
  • Aluminum heads
  • Hydraulic roller cam

Block:

  • NEW BluePrint Cast Iron Block
  • 4-Bolt Main
  • 4.000" Bore
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes

Rotating Assembly:

  • 3.400" stroke
  • Forged 5.400" connecting rods
  • Forged pistons
  • 28oz external balance

Cylinder Heads:

  • BluePrint aluminum cylinder heads - HP9009
  • 60cc chamber
  • 2.02" intake/1.60" exhaust valves
  • 190cc intake/60cc exhaust runners

Cam Specs:

  • Roller cam
  • .543 intake / .554 exhaust
  • 218 intake / 226 exhaust duration
  • @ .050 – 112-degree lobe separation

Ignition Timing:

  • 10-16 degrees initial, 32-34 total

Also Includes:

  • Front Sump Oil Pan
  • Intake Manifold
  • EFI System
  • Distributor
  • Harmonic Balancer
  • Valve Covers
  • Timing Cover
  • Installed complete front accessory drive
  • Thermostat and thermostat housing

Notes:

  • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.

    Engine Accessory Specifications

    Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    Part Number: BP3479CTFK

    Fuel Delivery Type: Carbureted, 670cfm

    Spark Plug: BPP7938 (BKR5E/7938)

    Spark Plug Gap: .035"

    Harmonic Balancer: BPP28 - 28 Ounce, 6.4" Diameter

    Flex plate/Flywheel: 28 Ounce Weighted such as BPP529618, BPPF28164BPPF157T28

    Stall Converter: 2000-2400 rm

    Intake Manifold: Dual plane

    Fuel Recommendation: 91 Octane

    Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

    Firing Order: 1,3,7,2,6,5,4,8

    Notes: Not for EGR - Engine requires a V-belt standard rotation water pump and belt system.

    Recommended Break in Oil : BPP710 (Click Here)

    Recommended Service Oil : BPP10W30 (Click Here)

    Recommended Oil Filter: BPP51515 (Click Here)

    Total Oil capacity with production oil pan, and Correct BPP51515 Filter: 5 Quarts

    Header Partners:   Click here for our Header Partners and recommendations.

    Click here to download a copy of the Installation Guide that came with your BluePrint engine.

    BETTER THAN THE REST.

    The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

    We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

    For a detailed overview of our warranty, click here.

    IT ALL COMES DOWN TO RESULTS.

    We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

    BRAGGING RIGHTS INCLUDED!

    A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

    This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
