- HP & Torque: 415 HP / 415 FT LBS
- Compression ratio: 10.0:1
- Aluminum heads
- Hydraulic roller cam
- NEW BluePrint Cast Iron Block
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- 3.400" stroke
- Forged 5.400" connecting rods
- Forged pistons
- 28oz external balance
- BluePrint aluminum cylinder heads - HP9009
- 60cc chamber
- 2.02" intake/1.60" exhaust valves
- 190cc intake/60cc exhaust runners
- Roller cam
- .543 intake / .554 exhaust
- 218 intake / 226 exhaust duration
- @ .050 - 112-degree lobe separation
- 10-16 degrees initial, 32-34 total
- Front Sump Oil Pan
- Valve covers
- Harmonic Balancer
- Spark plugs and Wires
- Timing cover
- Aluminum intake
- Water neck
- Thermostat and thermostat housing

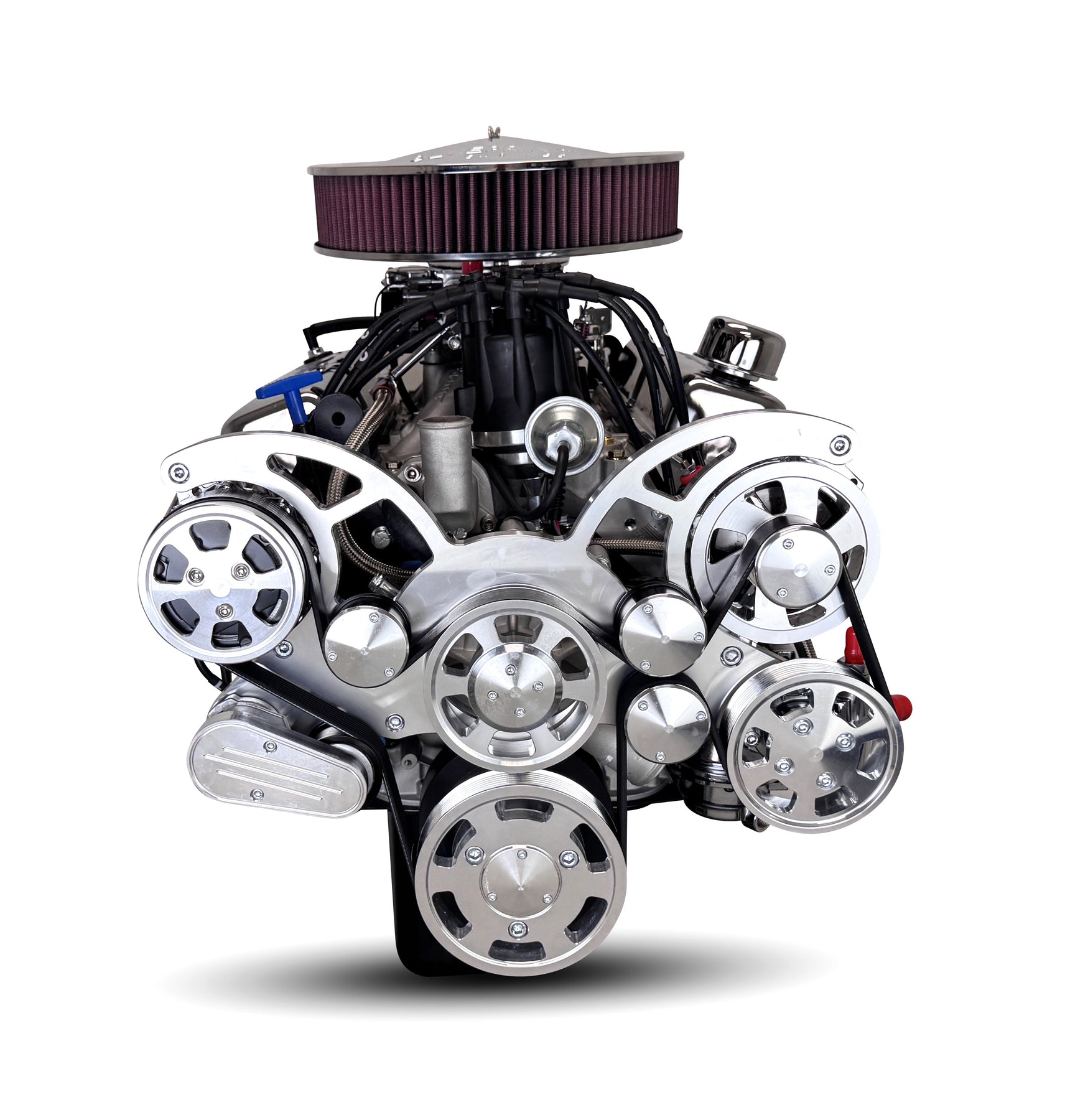

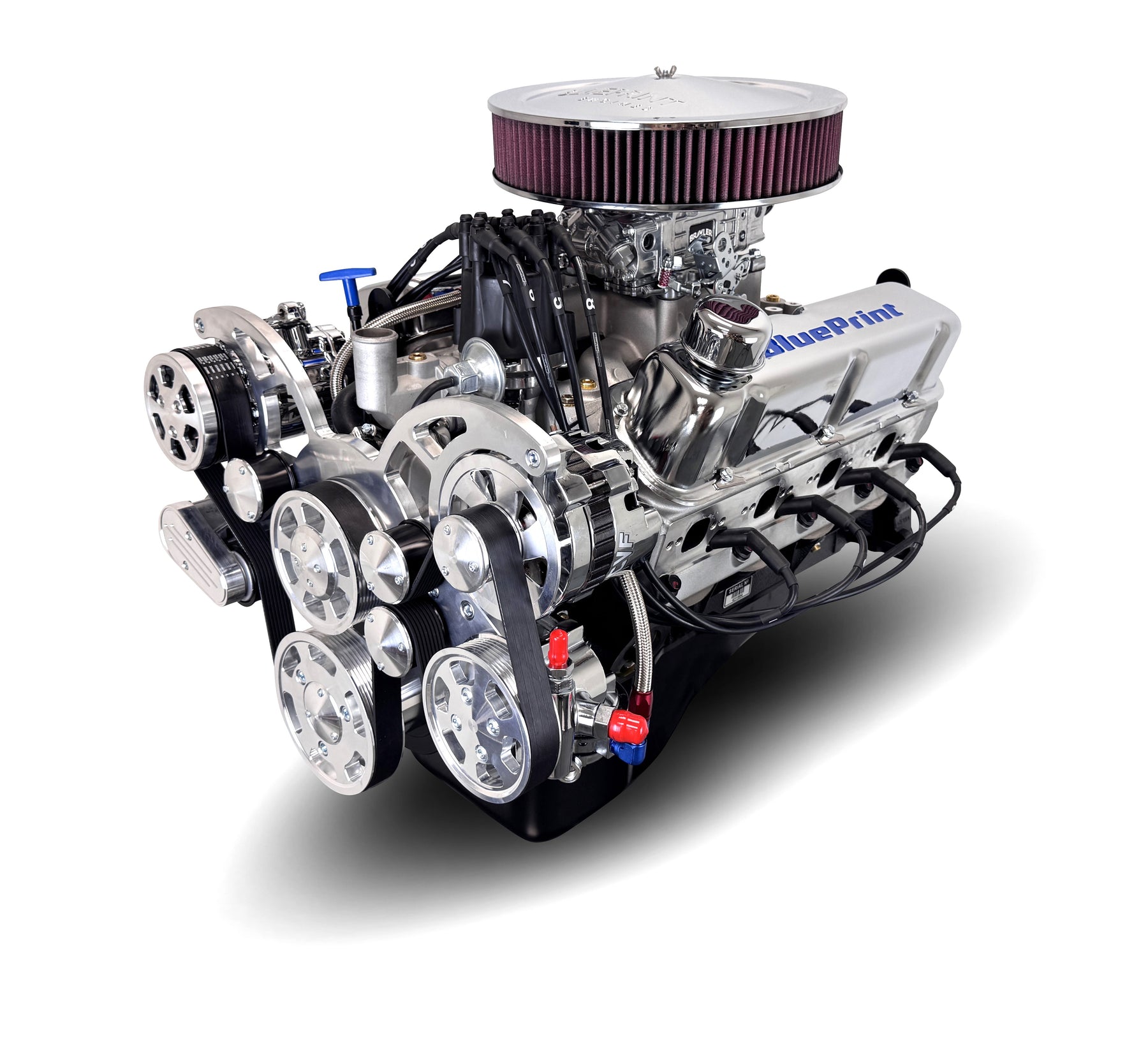

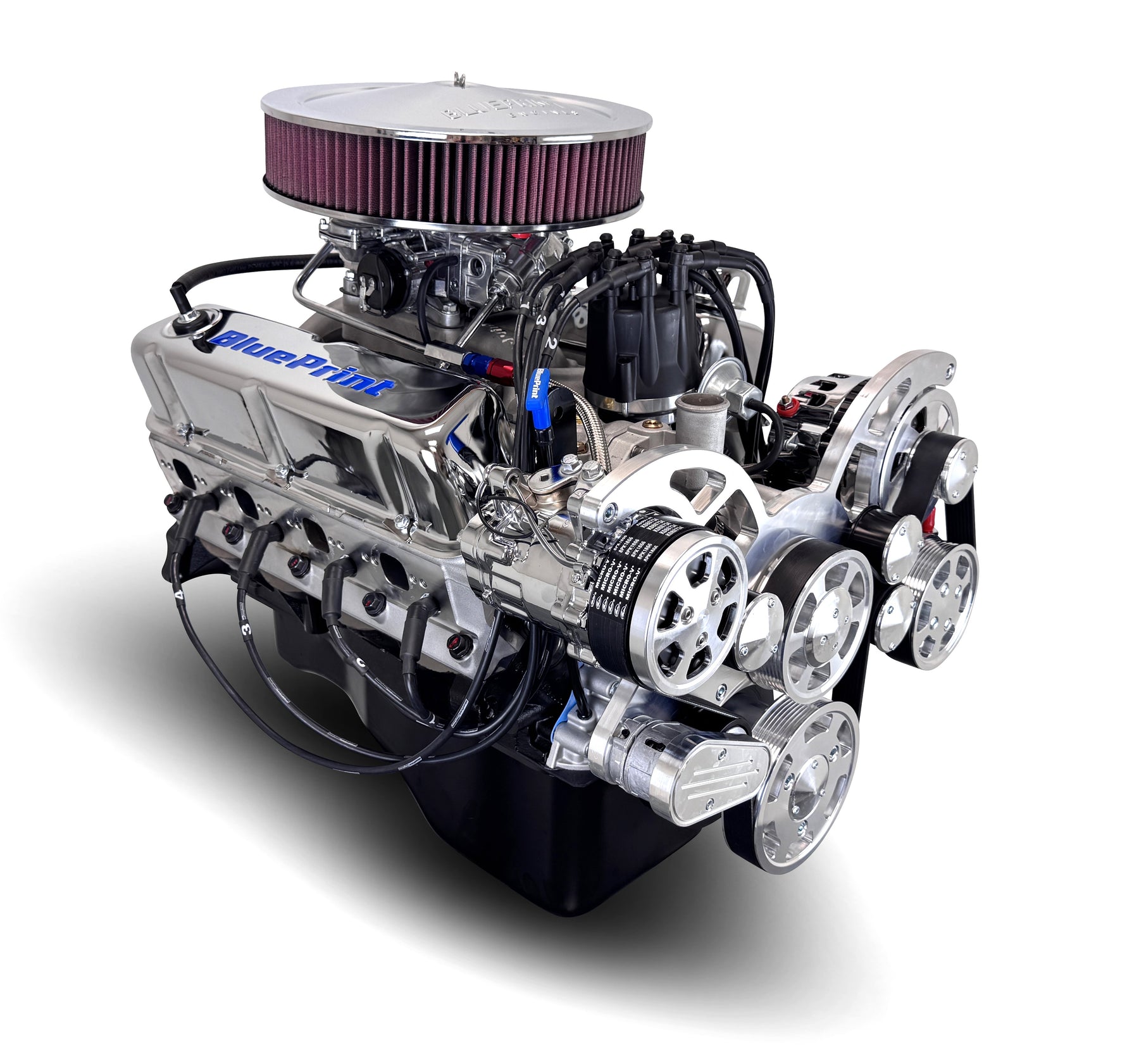

- Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
Engine Accessory Specifications
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
