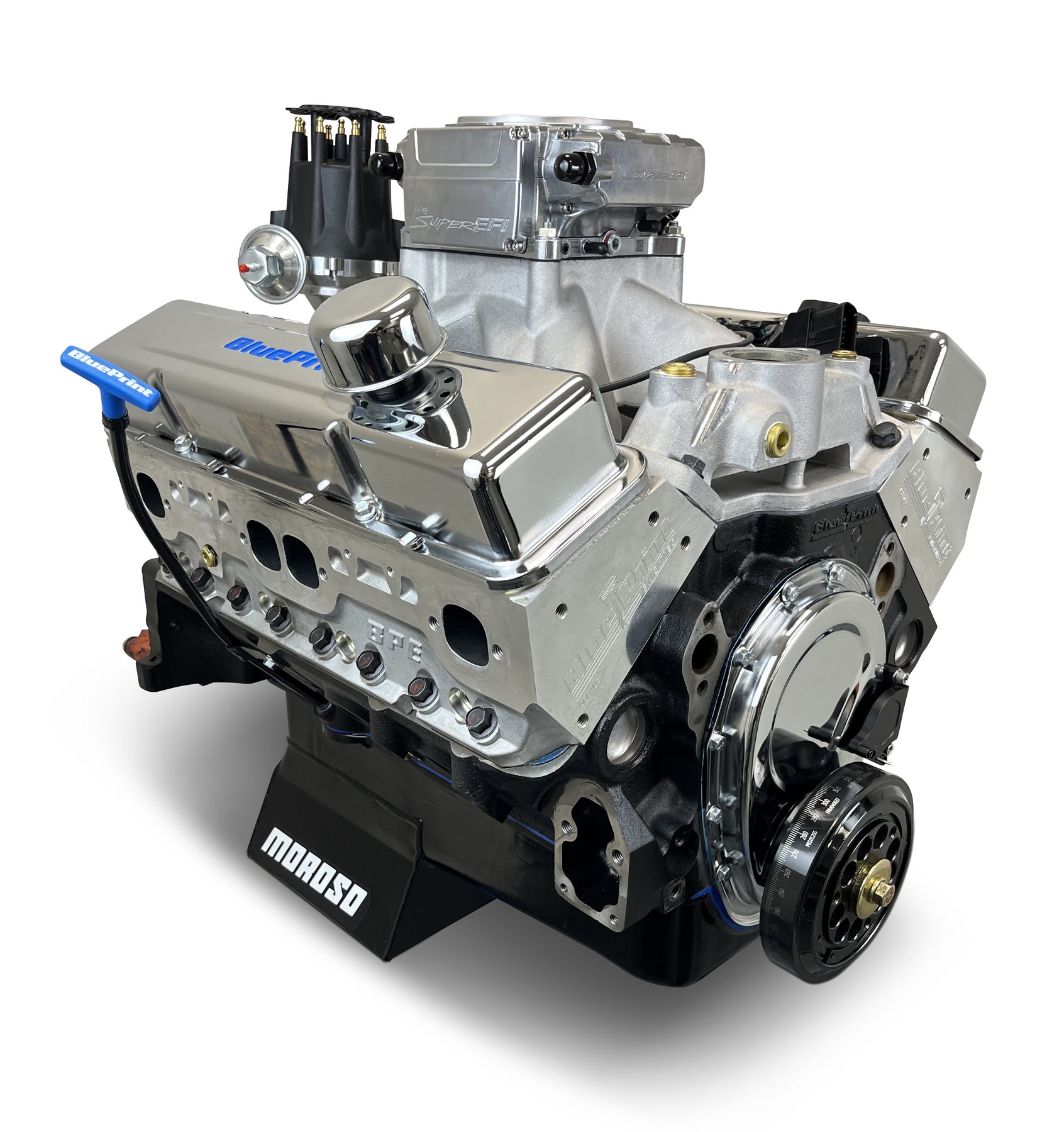

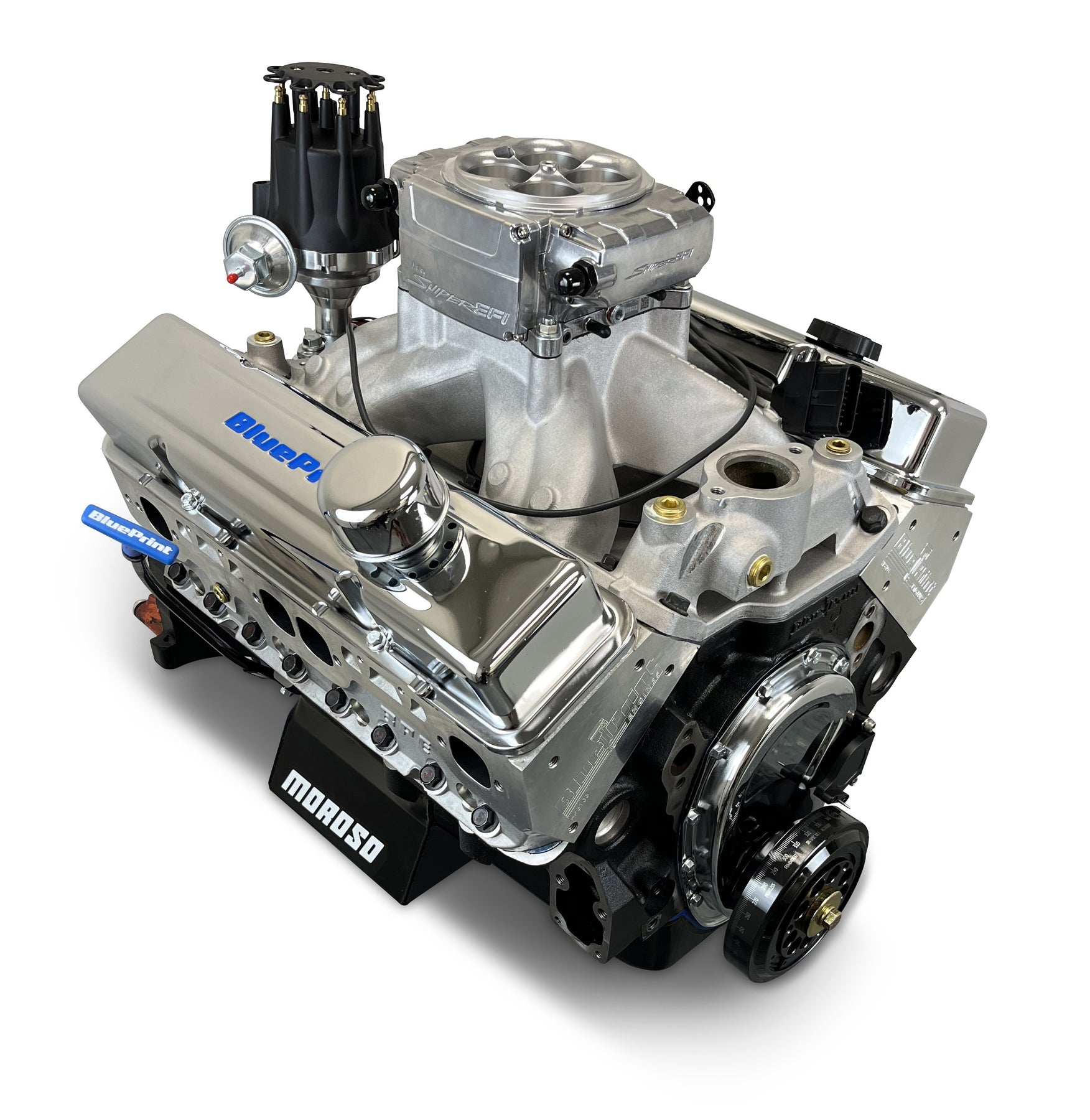

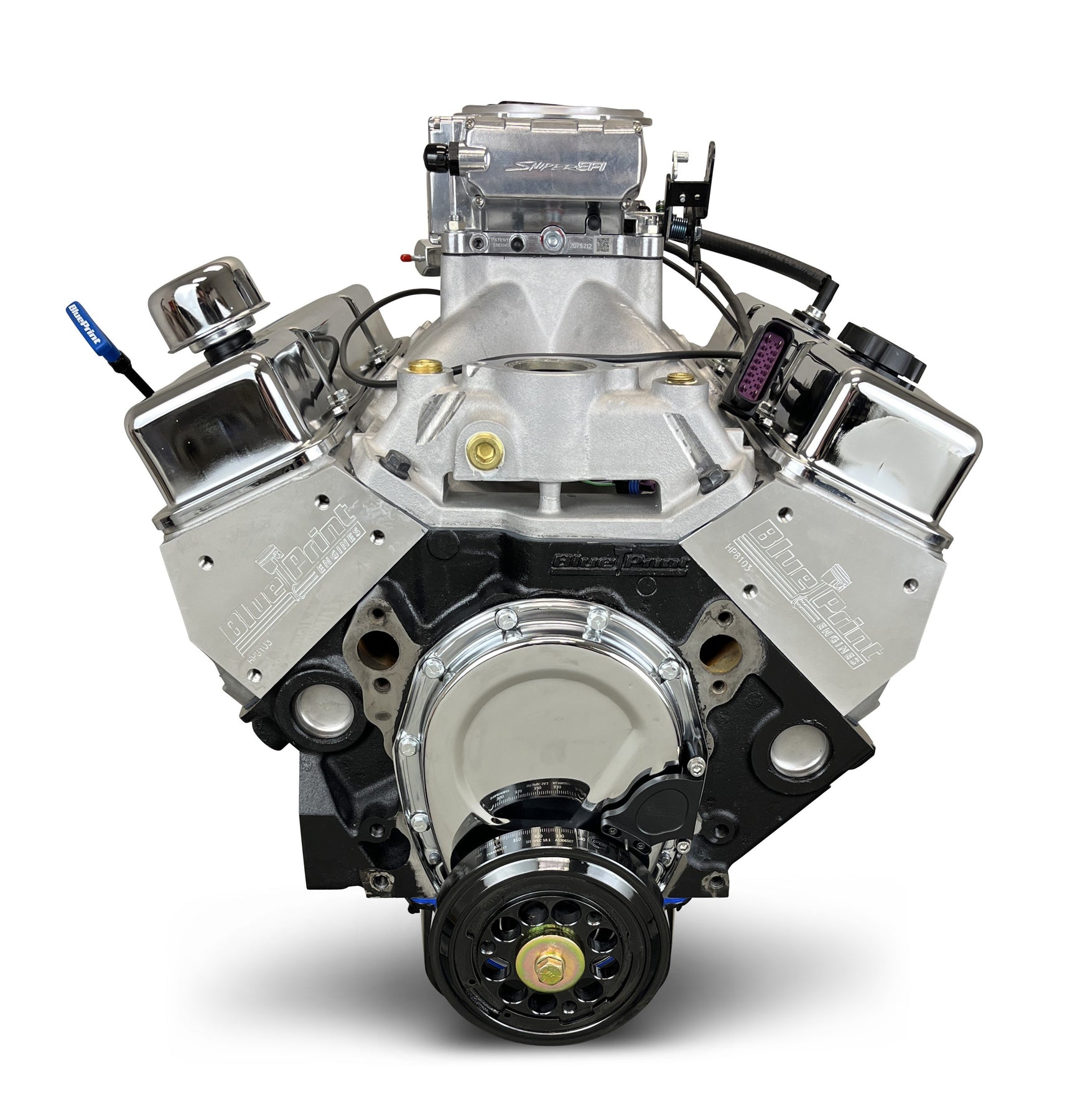

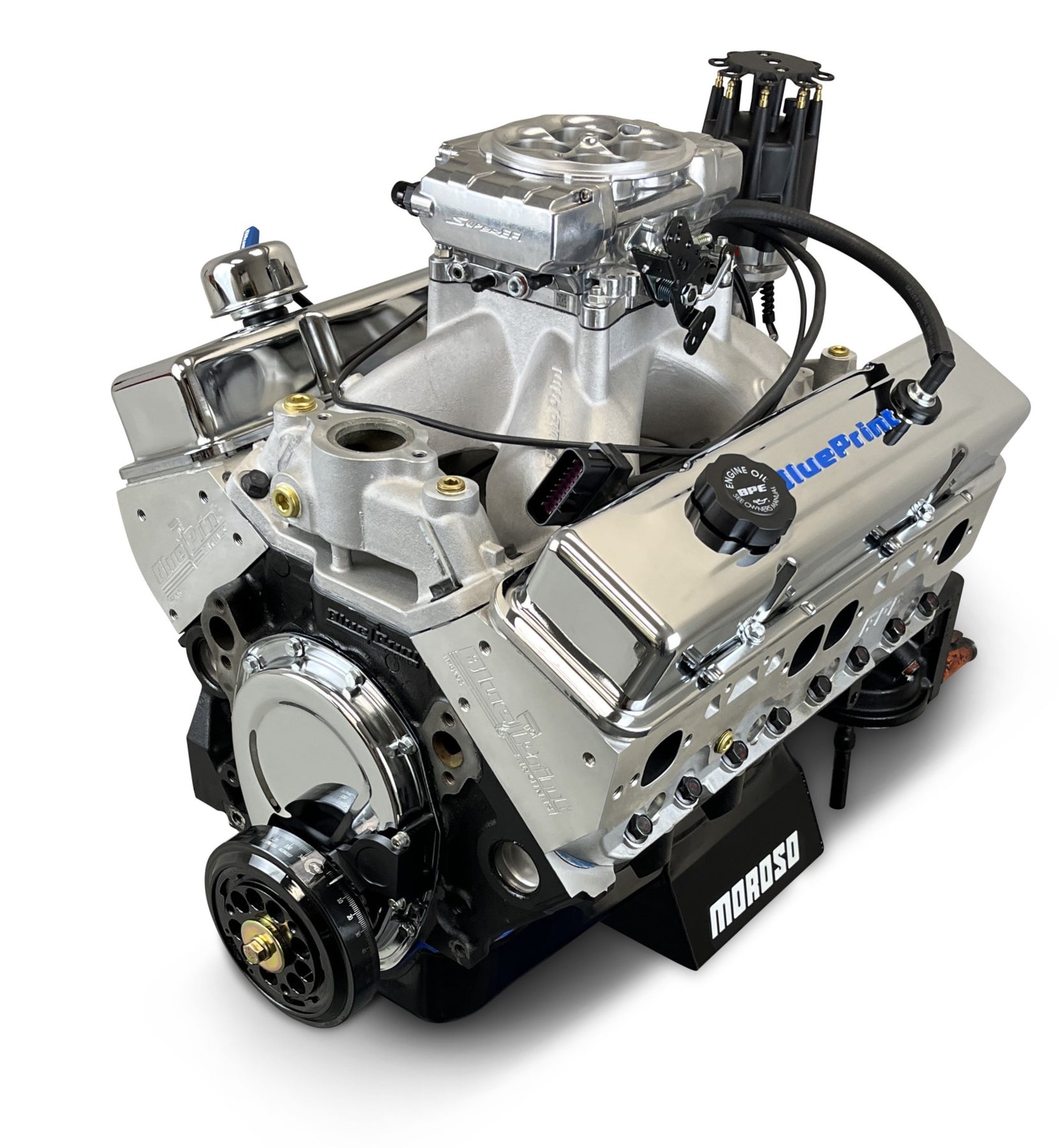

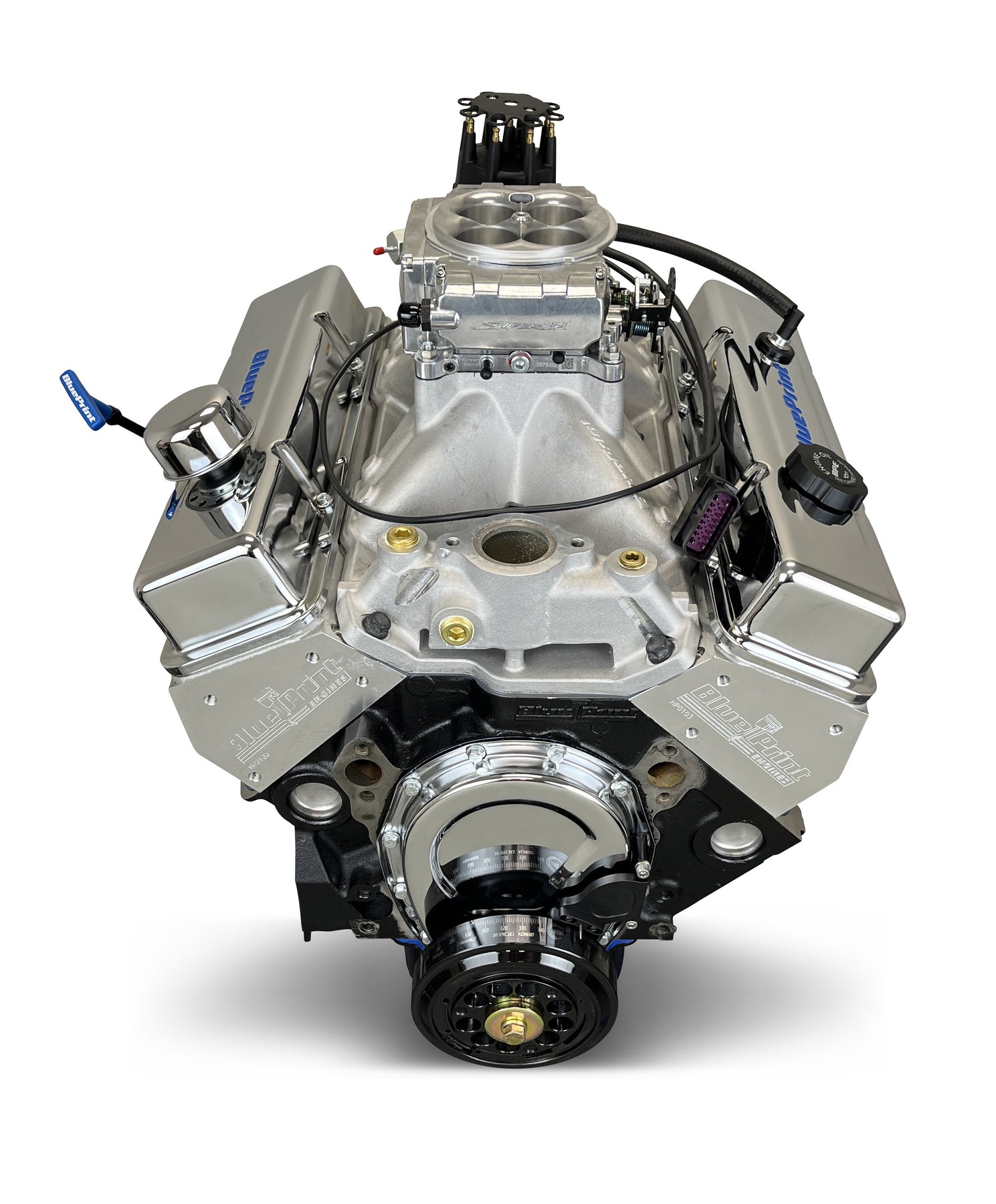

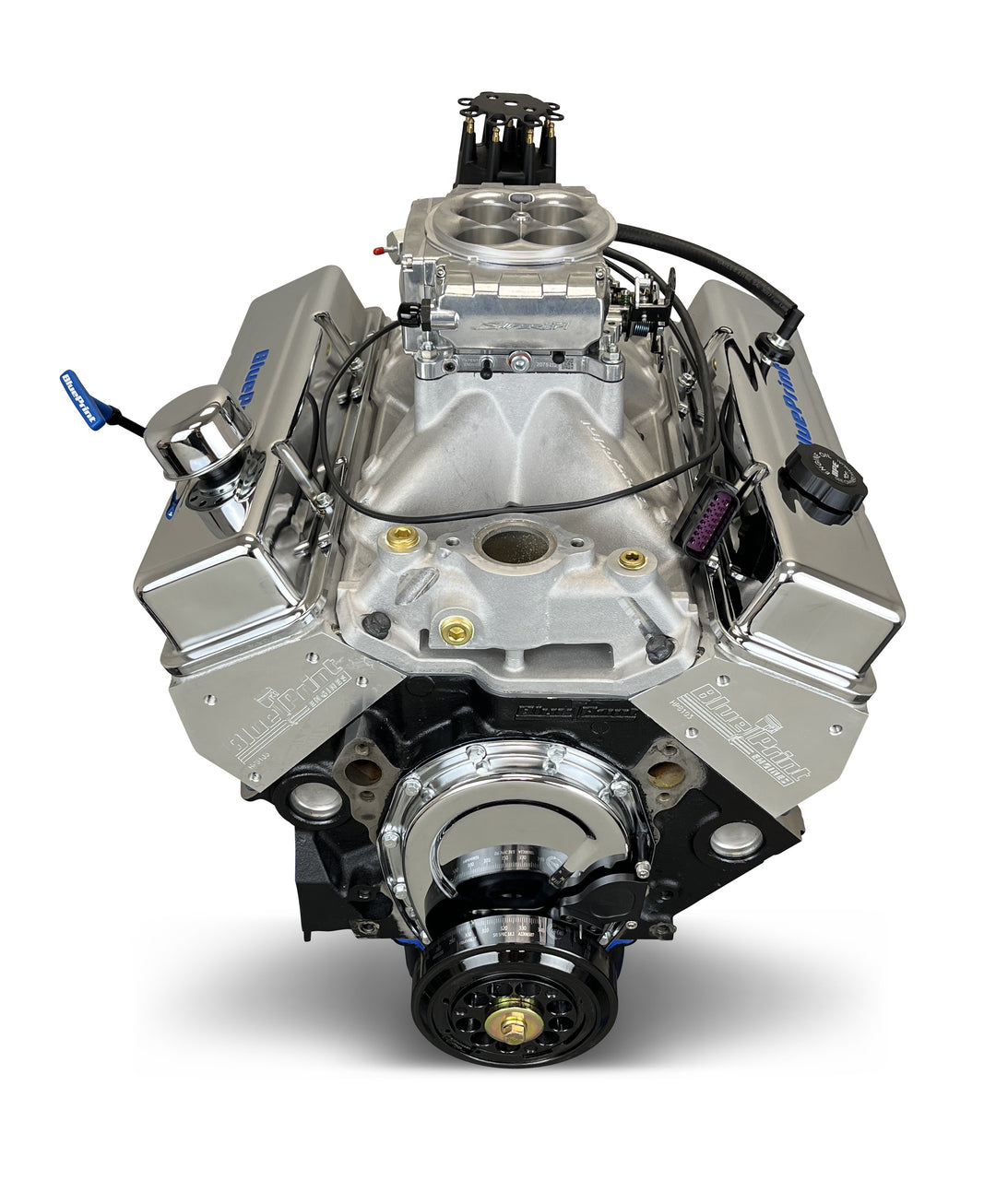

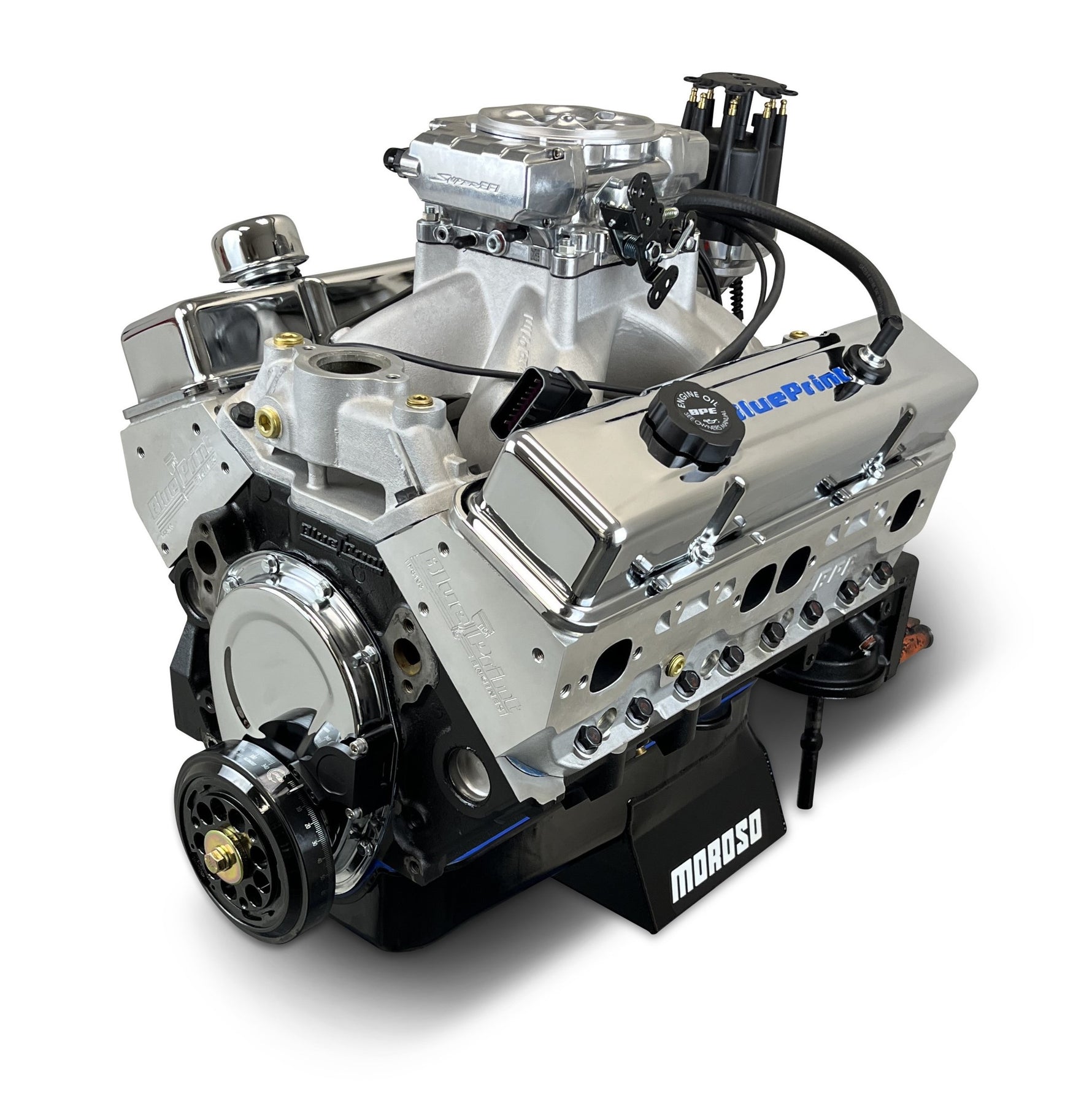

Name: BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected - Available July / August
Brand: Blueprint Engines
SKU: BPMS396CTF
Price: 9099.0 USD
Availability: InStock

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected - Available July / August

Horsepower & Torque: 530 Horsepower / 480 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.4:1

Camshaft: Hydraulic Roller Cam - .638 Intake / .622 Exhaust Lift and 251 Intake / 259 Exhaust Duration @ .050 - 114° LSA

Pistons: Forged 4032 High RPM Endurance

Crankshaft: Steel Crank - 3.875" Stroke and 6.000" I-Beam Rods

Requires Race Fuel of 100+ Octane

Price

Secure payments

Financing available at checkout with Affirm

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected - Available July / August

BPMS396CTF

Overview:

BluePrint Engines introduces the all-forged Small Block Chevy-Compatible engine. Built for hard-hitting racing performance. Designed to handle extreme conditions, this powerhouse is packed with race proven components.

Description:

Horsepower & Torque: 530 Horsepower / 480 FT. LBS. Torque
Compression Ratio: 10.4:1
BluePrint Engines Aluminum Heads
BluePrint Engines Hydraulic Roller Cam
BluePrint Engines Forged Crank
BluePrint Engines Forged 4032 Pistons

Block:

BluePrint Engines High Strength Cast Iron Block
Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
Cylinders are Sonic Tested for Thickness
Drilled and Tapped for Clutch Linkage
Align Honed Main Bearing Bore
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
1-Piece Rear Main Seal
4-Bolt Main
4.000" Bore

Rotating Assembly:

BluePrint Forged Crankshaft
3.875" Stroke
Forged I-beam 6.000" Connecting Rods
BluePrint Engines Forged 4032 Pistons
Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

BluePrint Aluminum Cylinder Heads - HP8103
64cc Chamber
2.08" Intake / 1.60" Exhaust valves
220cc Intake / 67cc Exhaust runners

Cam Specs:

Hydraulic Roller Cam
.638 Intake / .622 Exhaust Lift
251 Intake / 259 Exhaust Duration
@ .050-114 Degree Lobe Separation

Ignition Timing:

34 Degrees Total

Also includes:

BluePrint Engines Aluminum Intake Manifold - BPP427454INT
BluePrint Engines Aluminum Intake Manifold - BPP427454INT
BluePrint Engines Valve Covers - BPP9518
Moroso Street / Strip Oil Pan
HEI Distributor - BPP3503BK
High Volume Oil Pump
Timing Cover
Balancer

Notes:

BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke.
The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BPMS396CTF

Fuel Delivery Type: Fuel Injected, Holley Sniper 2 EFI

Spark Plug: BPP7938 NGK 7938 BKR5E (.750-inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP350 - Non-Weighted, 8" diameter

Flexplate/Flywheel: Late 350 Weighted

Stall Converter: Customer should match engine output and car setup to find best converter.

Intake Manifold: Single Plane, Satin Aluminum

Fuel Recommendation: Requires Race Fuel of 100+ Octane

Total Timing: 34 Degree Total Timing

Firing Order: 1,8,4,3,6,5,7,2

Recommended Oil Filter: BPP51061

Recommended Break in Oil: BPP710

Recommended Oil: BPP10W30

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
