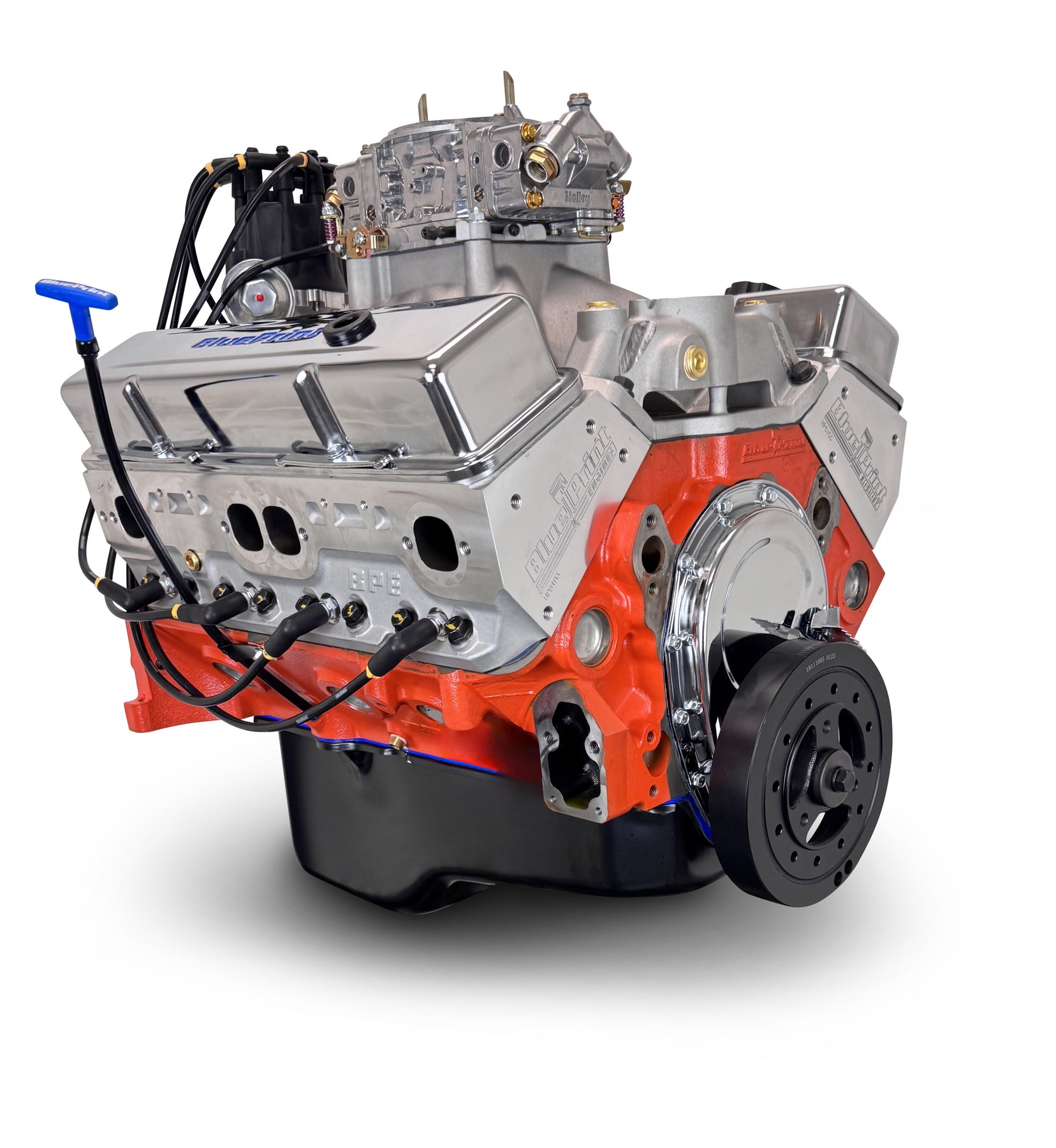

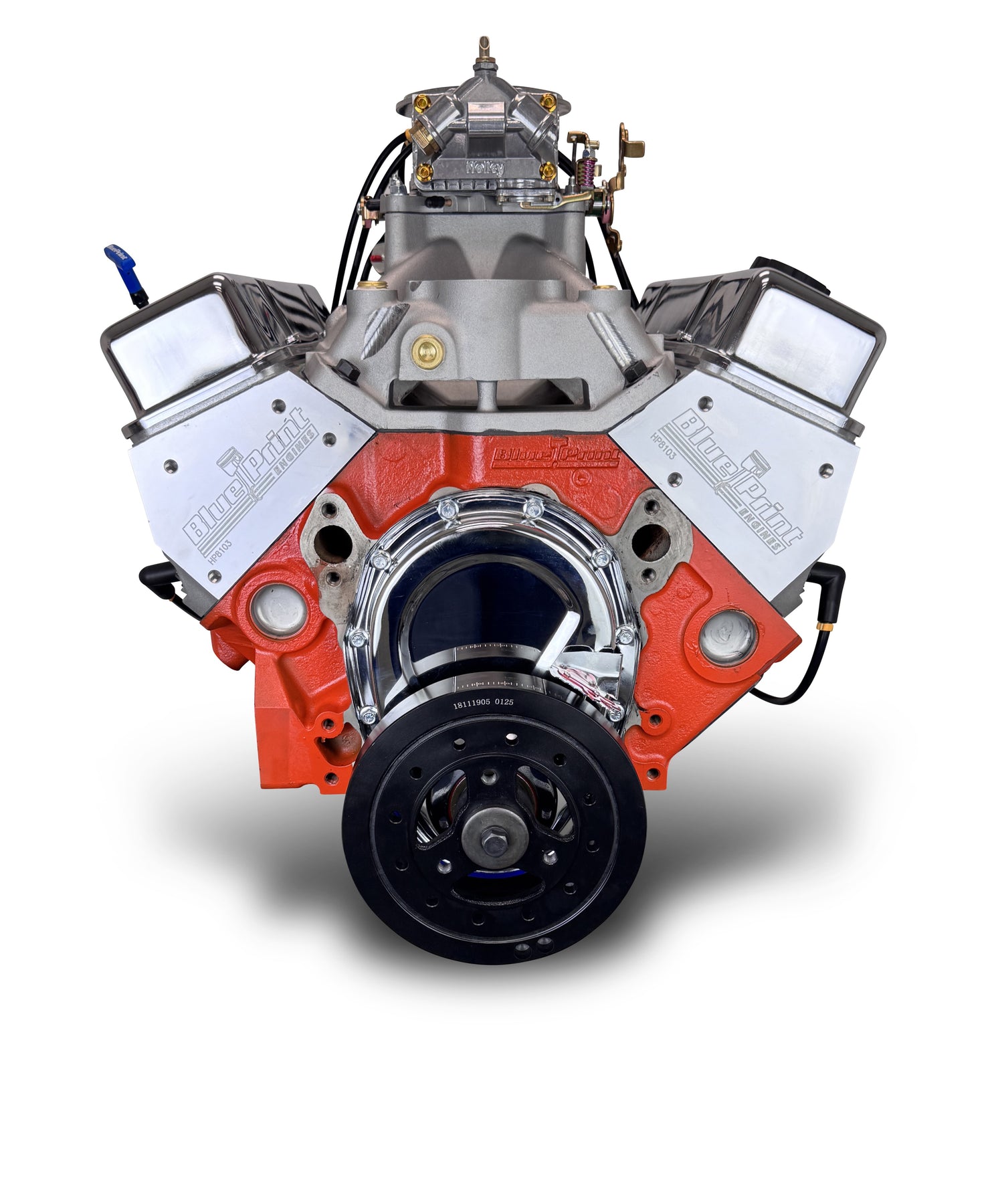

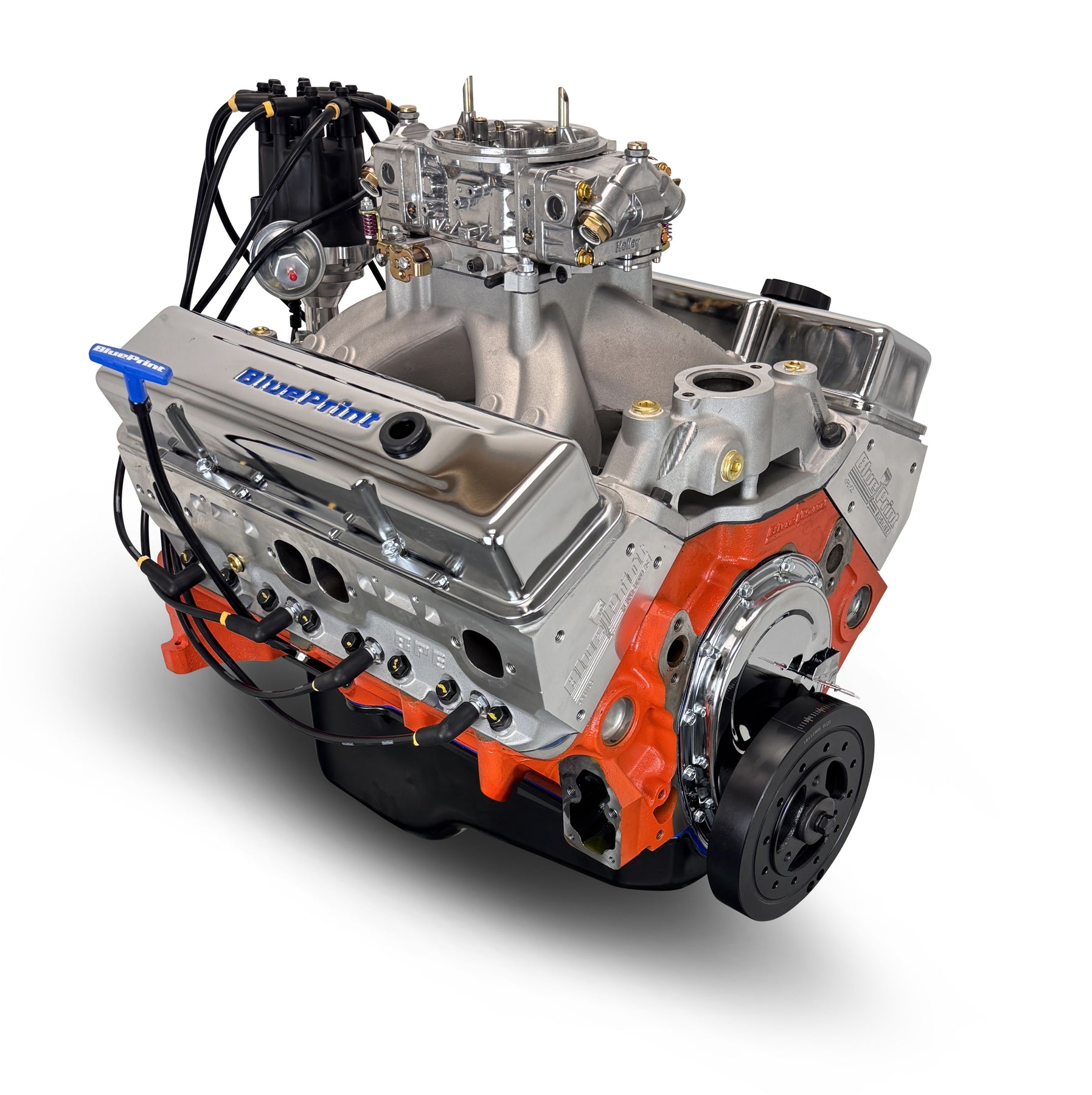

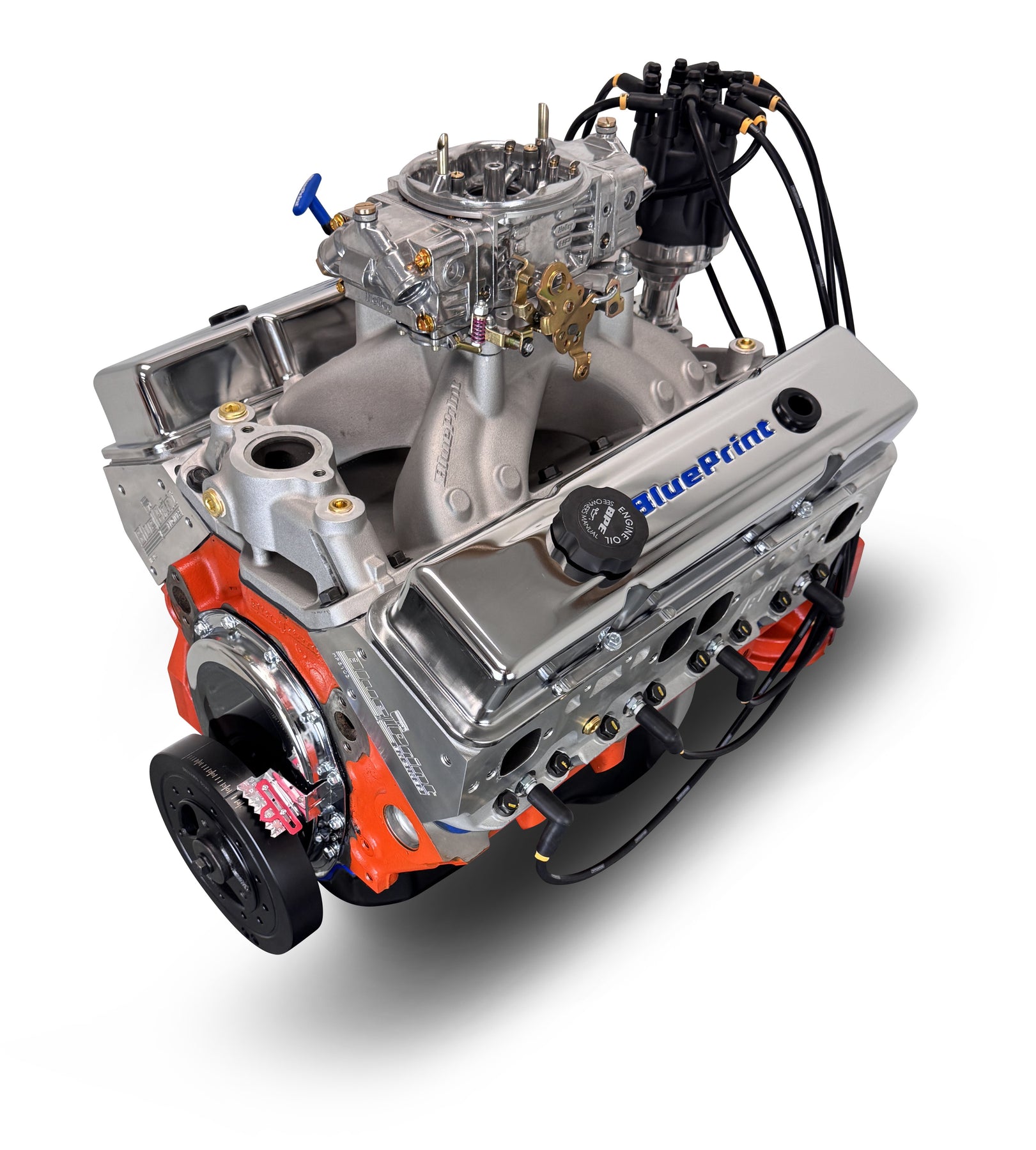

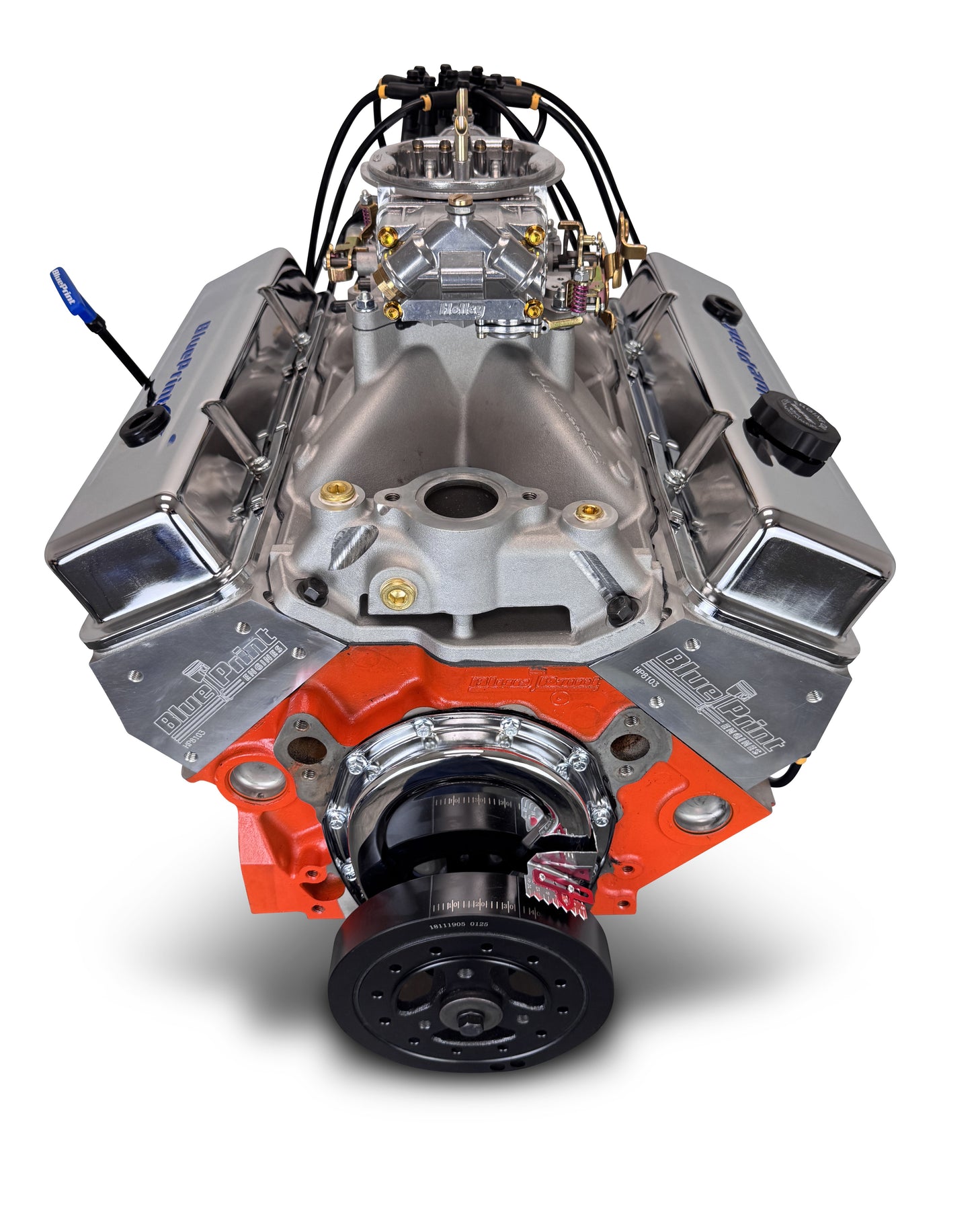

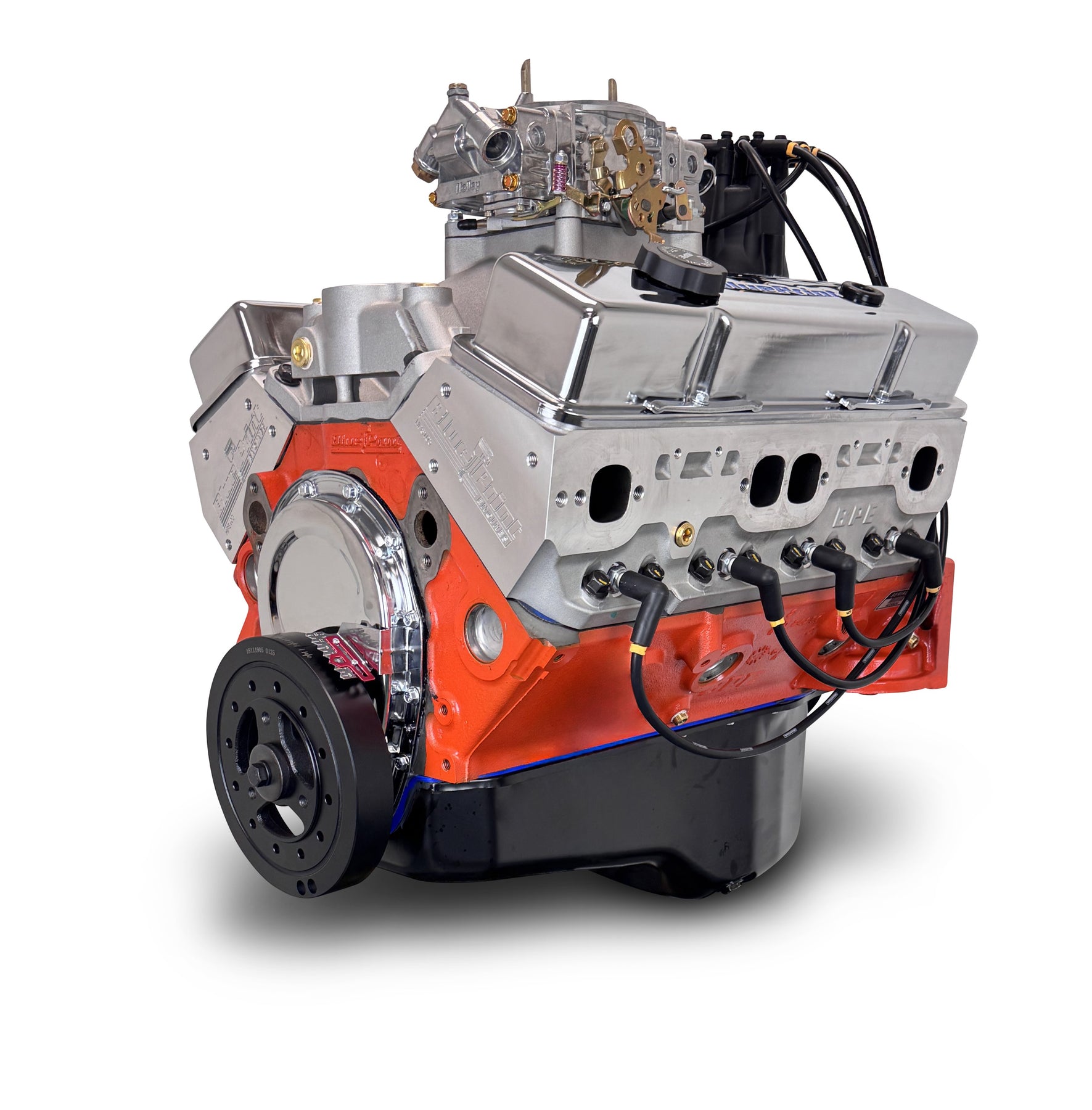

GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted
GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted
GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted
GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted
GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted

GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted

SKU: PS4541CTC1

GM SB Compatible 454 c.i. ProSeries Engine - 563 HP - Base Dressed - Carbureted

SKU: PS4541CTC1

HP & Torque: 563 HP / 545 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .638 Intake / .622 Exhaust Lift and 251 Intake / 259 Exhaust Duration @ .050 - 114° LSA

Pistons: Forged

Crankshaft: Forged Steel Crank - 4.000" Stroke and 6.000" Rods

Regular price $10,199.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • HP & Torque: 563 HP / 545 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • NEW BluePrint Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.250" Bore
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

Rotating Assembly:

  • New BluePrint Forged Crankshaft
  • 4.000" Stroke
  • Forged 6.000" connecting rods
  • Forged Pistons
  • Internal Front/ Internal Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP8103
  • 64cc chamber
  • 2.08" intake/1.60" exhaust valves
  • 220cc intake/67cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .638 Intake .622 Exhaust
  • 251 Intake / 259 Exhaust duration
  • @ .050 - 114-degree lobe separation

Also Includes:

  • Distributor
  • 950 CFM CARBURETOR
  • Aluminum intake manifold
  • Valve covers, oil pan and timing cover
  • Harmonic balancer
  • Spark Plugs
  • Spark Plug Wires


    Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    Part Number: PS4541CTC

    Fuel Delivery Type: Carbureted, 950cfm

    Spark Plug: BPP7938 NGK 7938 BKR5E

    Spark Plug Gap: .035"

    Harmonic Balancer: Non-Weighted

    Flexplate/Flywheel: Non-Weighted

    Stall Converter: 2200+

    Intake Manifold: Single plane, satin aluminum

    Fuel Recommendation: 91 Octane

    Timing (Initial/Total Advance): Initial timing - Initial timing - 10-16° and Total timing 32-34°

    Firing Order: 1,8,4,3,6,5,7,2

    Notes: New BluePrint block manufactured and machined in the USA.

    Recommended Break in Oil : BPP710 (Click Here)

    Recommended Service Oil : BPP10W30 (Click Here)

    Recommended Oil Filter ; BPP51061 (Click Here)

    Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 6 Quarts

    Header Partners:  Click here for our Header Partners and recommendations.

    Click here to download a copy of the Installation Guide that came with your BluePrint engine.

    BETTER THAN THE REST.

    The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

    We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

    For a detailed overview of our warranty, click here.

    IT ALL COMES DOWN TO RESULTS.

    We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

    BRAGGING RIGHTS INCLUDED!

    A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

    This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
