BluePrint Engines Builder Series 383CI Stroker Crate Engine and 700R4 Auto Trans Package | Small Block GM Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

$12,340.00

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
Part #: B383K700

Description

Dyno Tested Warranty
  • HP & Torque: 430 HP / 450 FT LBS
    Compression Ratio: 10.0:1
    Aluminum Heads
    Hydraulic Roller Cam
    Cast Steel Crank
    Hypereutectic Pistons

BLOCK:

  • Hand picked seasoned block
    Square and parallel decked
    Align honed main bearing bore
    Cylinders honed on computer controlled machine to within .0002 straightness and roundness
    Cylinders are sonic tested for thickness
    4-Bolt Main
    4.000" Bored .040" Over
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Cast steel crankshaft
    3.750" Stroke
    OEM type 5.700" connecting rods w/ 150,000 psi bolts
    Hypereutectic pistons
    External Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - H8002K
    64cc chamber
    2.02" intake/1.60" exhaust valves
    195cc intake/75cc exhaust runners

CAM SPECS:

    • Cam Type: Roller
      .528 Intake .536 Exhaust
      221 Intake / 226 Exhaust duration
      @.050 - 110 degree lobe separation

    Also Includes:

    • Intake Manifold dual plane, satin aluminum
      750 CFM Carburetor
      Valve covers, oil pan and timing cover
      Brass freeze plugs
      Dyno test results shipped with engine
    • Fuel Pump
    • Spark plugs & wires
    • 180 degree thermoset & housing
      Oil filter
      Plug wire seperators
    • complete front accessory drive with A/C and P/S

    ASSEMBLED W/ COMPLETE 700R4 AUTO TRANS PACKAGE:

    700R4 Complete Package

    2200-2400 Stall Torque converter

    Flexplate
    Starter

    Warranty

    • 30 month / 50,000 mile

    Notes:

    • Package Ships assembled as pictured.
    • Due to numerous tire/rear gear combinations, This transmission does NOT ship with a speedometer gear, or sender housing.
    • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
      STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT
      OR VISIT FACTORYFIVEENGINES.COM

    Yellow Exclamation Triangle WARNING: Cancer and Reproductive Harm-
    www.P65Warnings.ca.gov

    This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
    Part #: B383K700

    Description

    Dyno Tested Warranty
    • HP & Torque: 430 HP / 450 FT LBS
      Compression Ratio: 10.0:1
      Aluminum Heads
      Hydraulic Roller Cam
      Cast Steel Crank
      Hypereutectic Pistons

    BLOCK:

    • Hand picked seasoned block
      Square and parallel decked
      Align honed main bearing bore
      Cylinders honed on computer controlled machine to within .0002 straightness and roundness
      Cylinders are sonic tested for thickness
      4-Bolt Main
      4.000" Bored .040" Over
      1-Piece Rear Main Seal
      Mech fuel pump provision: Yes
      Passenger Side Dipstick
    • Drilled and tapped for clutch linkage

    ROTATING ASSEMBLY:

    • New BluePrint Cast steel crankshaft
      3.750" Stroke
      OEM type 5.700" connecting rods w/ 150,000 psi bolts
      Hypereutectic pistons
      External Front/ External Rear

    CYLINDER HEADS:

    • BluePrint Aluminum Cylinder Heads - H8002K
      64cc chamber
      2.02" intake/1.60" exhaust valves
      195cc intake/75cc exhaust runners

    CAM SPECS:

      • Cam Type: Roller
        .528 Intake .536 Exhaust
        221 Intake / 226 Exhaust duration
        @.050 - 110 degree lobe separation

      Also Includes:

      • Intake Manifold dual plane, satin aluminum
        750 CFM Carburetor
        Valve covers, oil pan and timing cover
        Brass freeze plugs
        Dyno test results shipped with engine
      • Fuel Pump
      • Spark plugs & wires
      • 180 degree thermoset & housing
        Oil filter
        Plug wire seperators
      • complete front accessory drive with A/C and P/S

      ASSEMBLED W/ COMPLETE 700R4 AUTO TRANS PACKAGE:

      700R4 Complete Package

      2200-2400 Stall Torque converter

      Flexplate
      Starter

      Warranty

      • 30 month / 50,000 mile

      Notes:

      • Package Ships assembled as pictured.
      • Due to numerous tire/rear gear combinations, This transmission does NOT ship with a speedometer gear, or sender housing.
      • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
        STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT
        OR VISIT FACTORYFIVEENGINES.COM

      Yellow Exclamation Triangle WARNING: Cancer and Reproductive Harm-
      www.P65Warnings.ca.gov

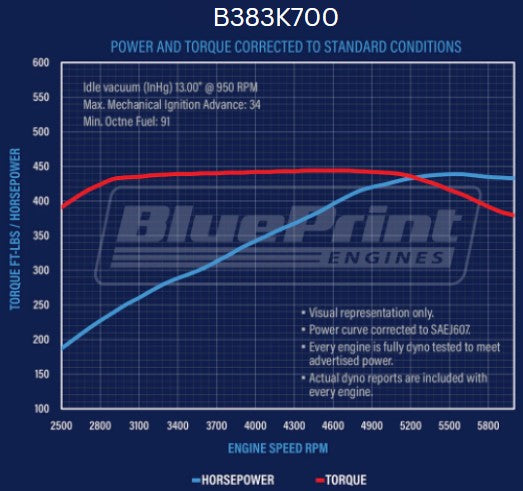

      Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.



      Part Number: B383K700

      Fuel Delivery Type: 750 CFM Carburetor

      Spark Plug: BPP7938 NGK 7938 BKR5E

      Spark Plug Gap: .035"

      Harmonic Balancer: BPP350 - Non Weighted, 8" diameter

      Flexplate/Flywheel: Weighted, 1 pc RMS

      Stall Converter: 2400+

      Intake Manifold: Dual plane, satin aluminum

      Fuel Recommendation: 91 Octane

      Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

      Firing Order: 1,8,4,3,6,5,7,2

      Notes: Recommended break in oil for your BluePrint Crate Engine:BPP710, Not for EGR



      Click here to download a copy of the Installation Guide that came with your BluePrint engine.
