Ford SB Compatible 347 c.i. Engine and 4R70W Automatic Transmission - 415 HP - Standard Edition Builder Series with Polished Pulley Kit - Carbureted

Ford SB Compatible 347 c.i. Engine and 4R70W Automatic Transmission - 415 HP - Standard Edition Builder Series with Polished Pulley Kit - Carbureted

SKU: B347K4R7

Ford SB Compatible 347 c.i. Engine and 4R70W Automatic Transmission - 415 HP - Standard Edition Builder Series with Polished Pulley Kit - Carbureted

SKU: B347K4R7

HP & Torque: 415 HP / 415 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust and 218 Intake / 226 Exhaust Duration @ .050 - 112 LSA

Pistons: Forged

Crankshaft: Steel Crank - 3.400" Stroke and Forged 5.400" Rods

Regular price $18,849.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • HP & Torque: 415 HP / 415 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Steel Crank
  • Forged Pistons

Block:

  • NEW BluePrint Engines' high-strength cast iron block
  • Increased deck thickness and strength webbing
  • Priority main oiling
  • 4-bolt main
  • 1-piece rear main seal
  • Improved water jacket design

Rotating Assembly:

  • New BluePrint Cast steel crankshaft
  • 3.400" Stroke
  • Forged I-beam 5.400" connecting rods
  • Forged pistons
  • 28oz External balance

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads -HP9009
  • 60cc chamber
  • 2.02" intake/1.60" exhaust valves
  • 190cc intake/65cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .543 Intake
  • .554 Exhaust & 218 Intake
  • 226 Exhaust duration @ .050 - 112-degree lobe separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Dual plane, satin aluminum intake manifold
  • 600 CFM Carburetor
  • Pro Billet Distributor
  • Mustang Style Valve covers
  • 7 Quart oil pan
  • Electric Fuel Pump

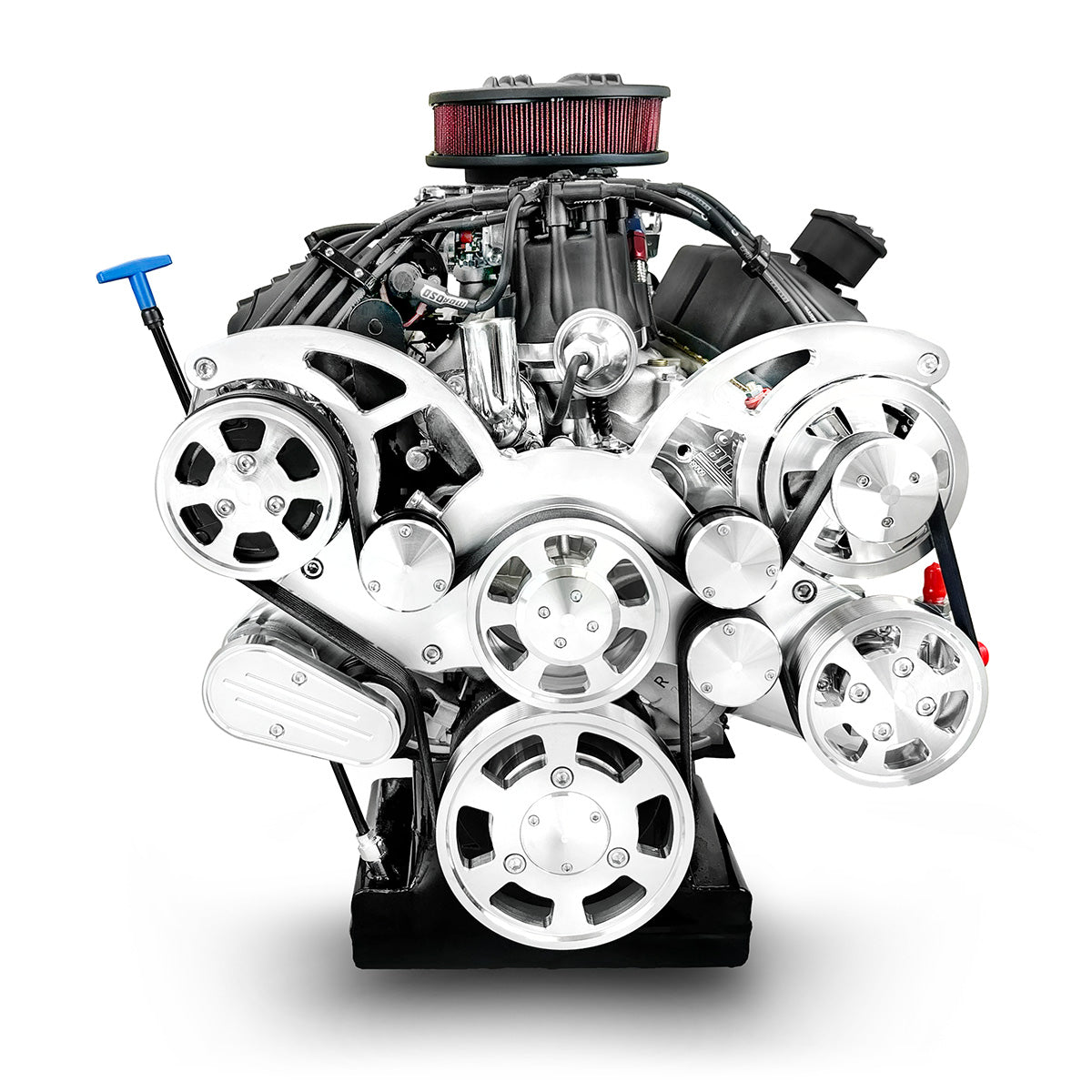

  • Installed Complete Front Accessory Drive With A/C, P/S, Alternator, WP, Belts, Pulleys.
  • Thermostat and thermostat housing

Assembled with Complete 4R70W Automatic Transmission Package:

  • Includes Electronic Transmission Controller
  • Transmission built to 650 HP
  • 2200-2600 Stall Torque Converter
  • Flex plate
  • Starter
  • 4 Speed, Overdrive transmission w/Lockup
  • GEAR RATIOS
    • First: 2.84 :1.
    • Second: 1.55 :1.
    • Third: 1.00 :1.
    • Overdrive: 0.70 :1.
    • Reverse: 2.32 :1.

Notes:

  • Does not include TPS, as varies with carb or EFI type.
  • Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.

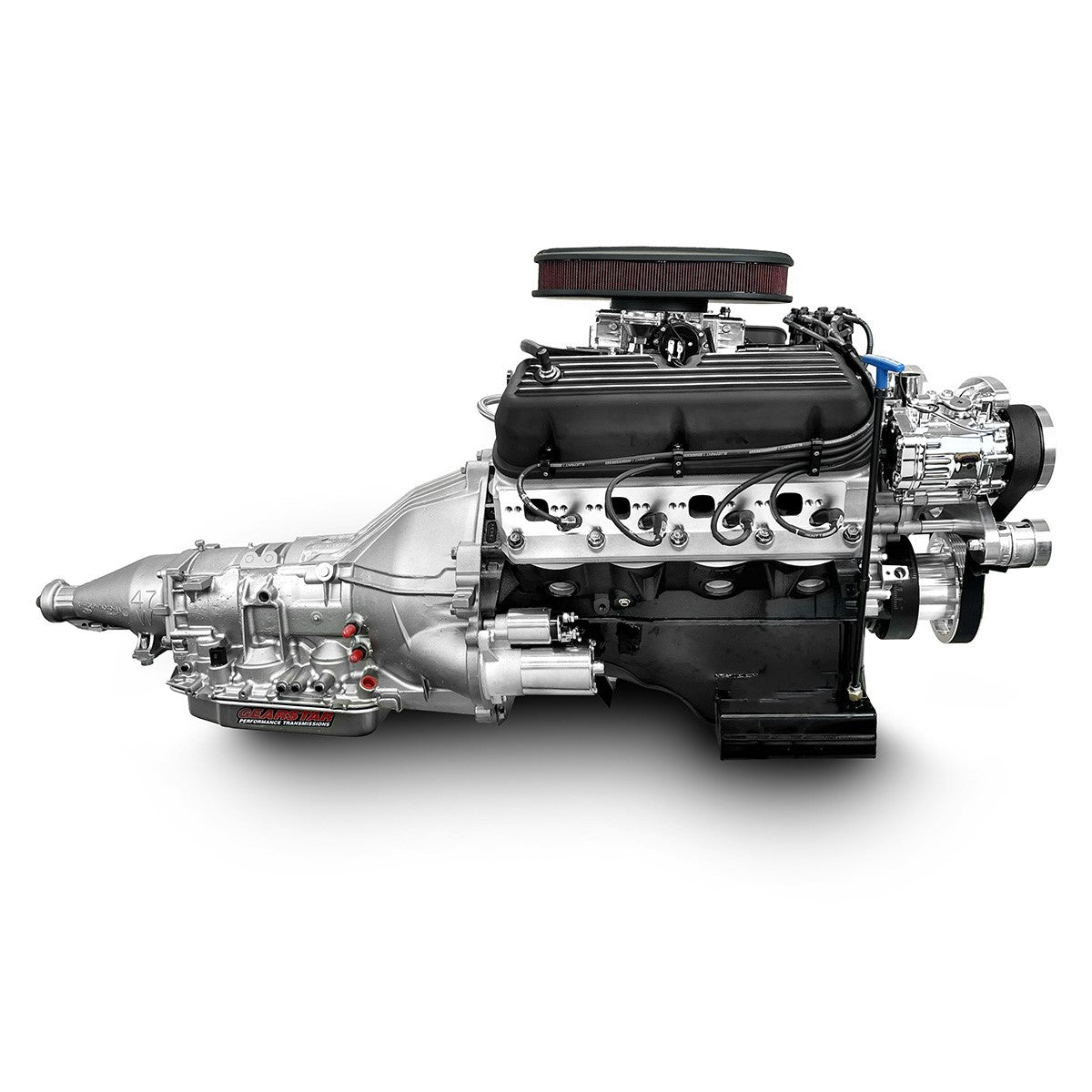

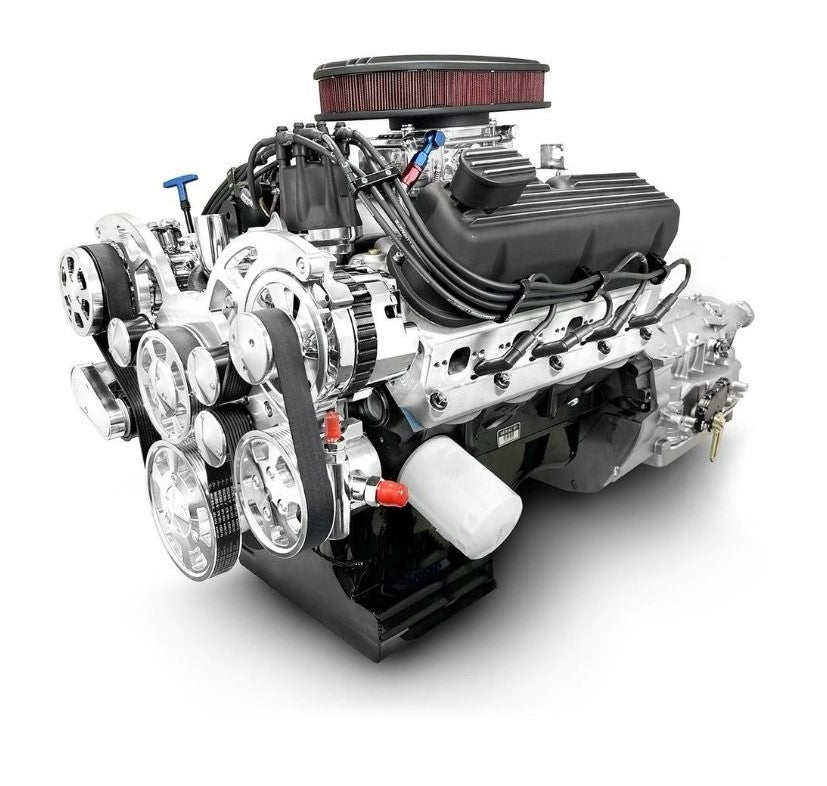

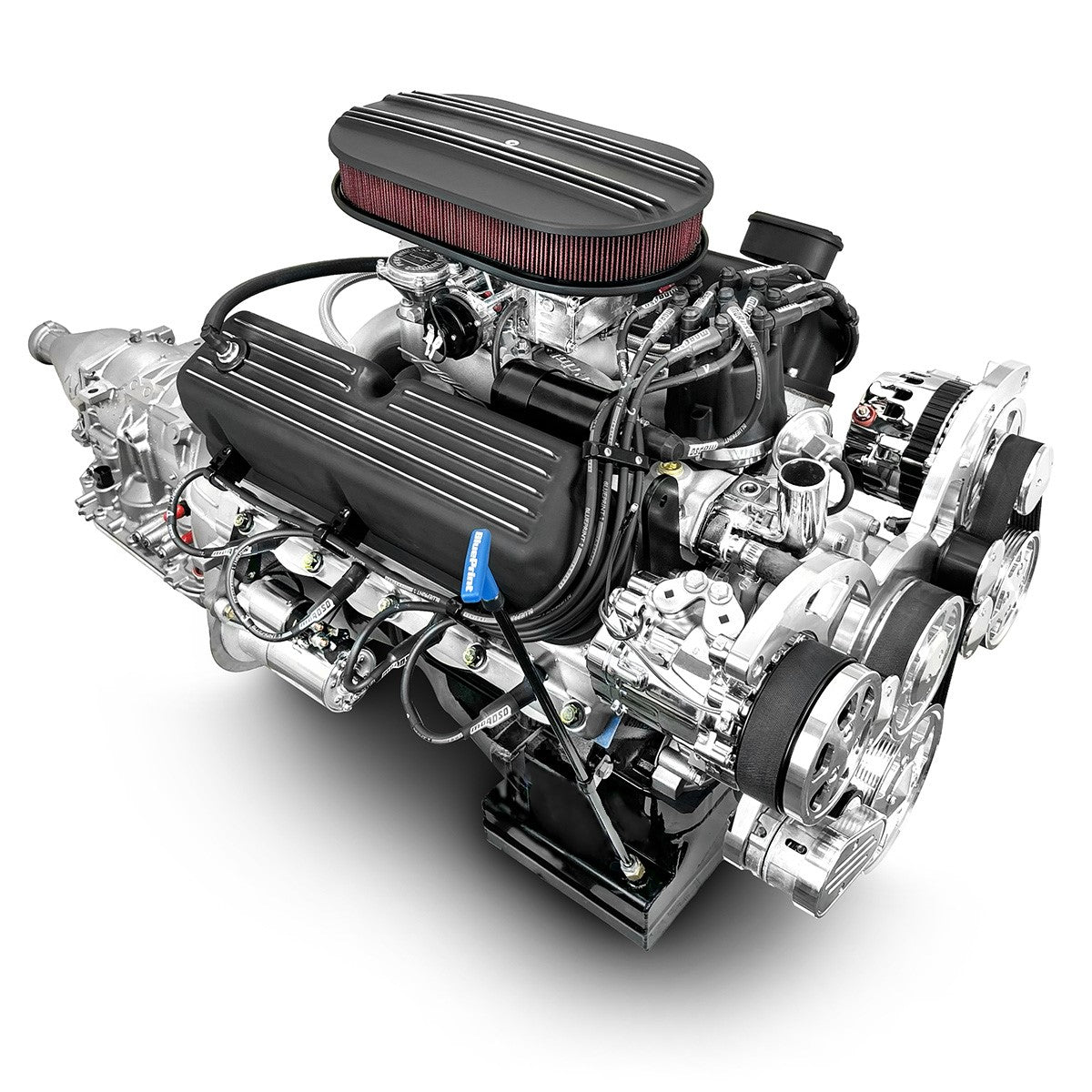

  • Package Ships assembled as pictured.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: B347K4R7

Fuel Delivery Type: 600 CFM carburetor

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP28 - 28.4 Ounce, 6.4" Diameter

Flexplate/Flywheel: 28.4 Ounce Weighted

Stall Converter: 2000-2400 rpm

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,3,7,2,6,5,4,8

Notes: Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR

Header Partners:  Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
