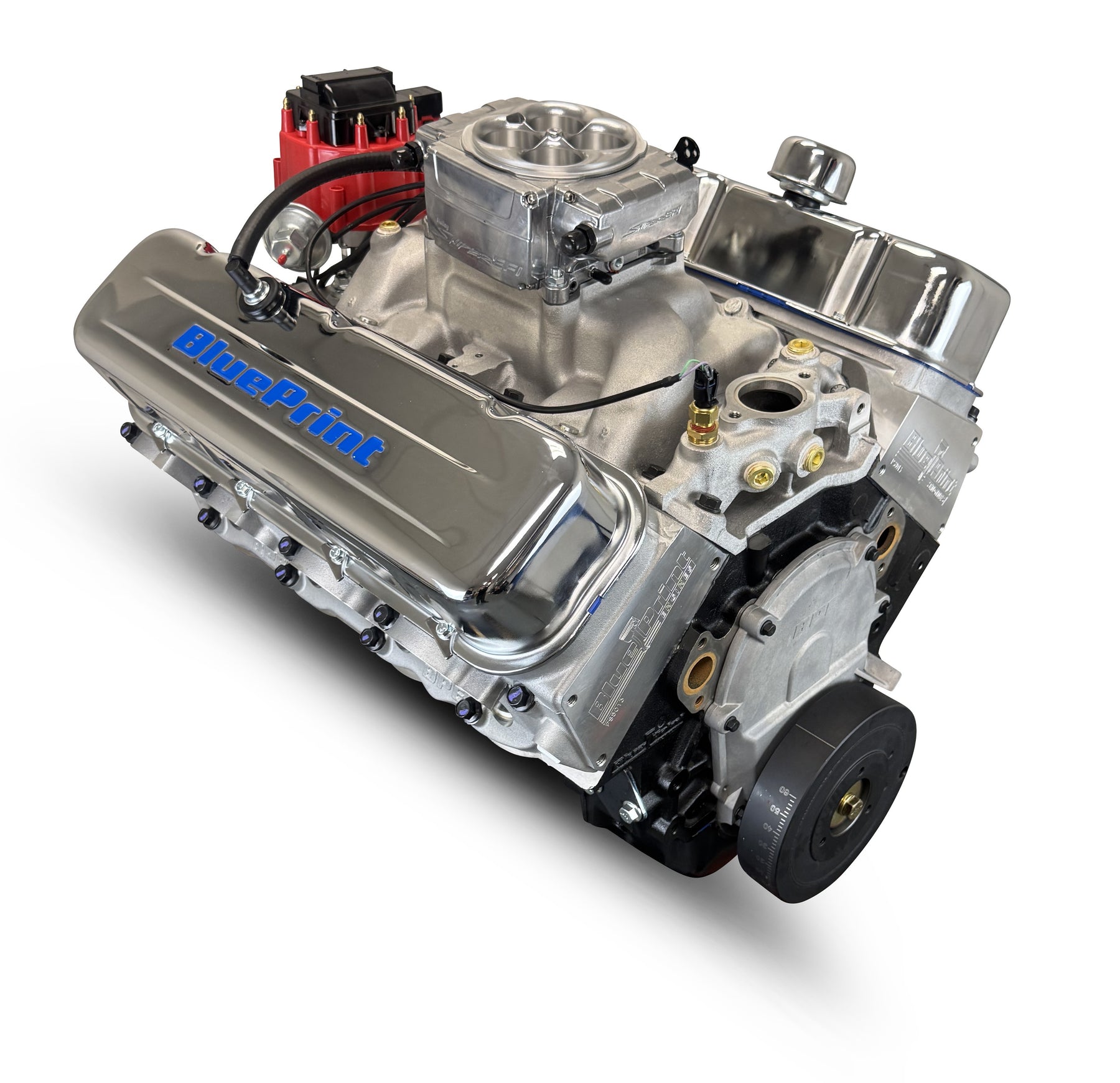

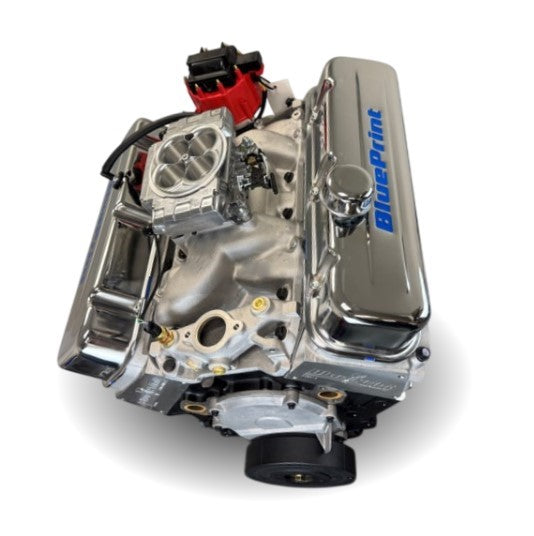

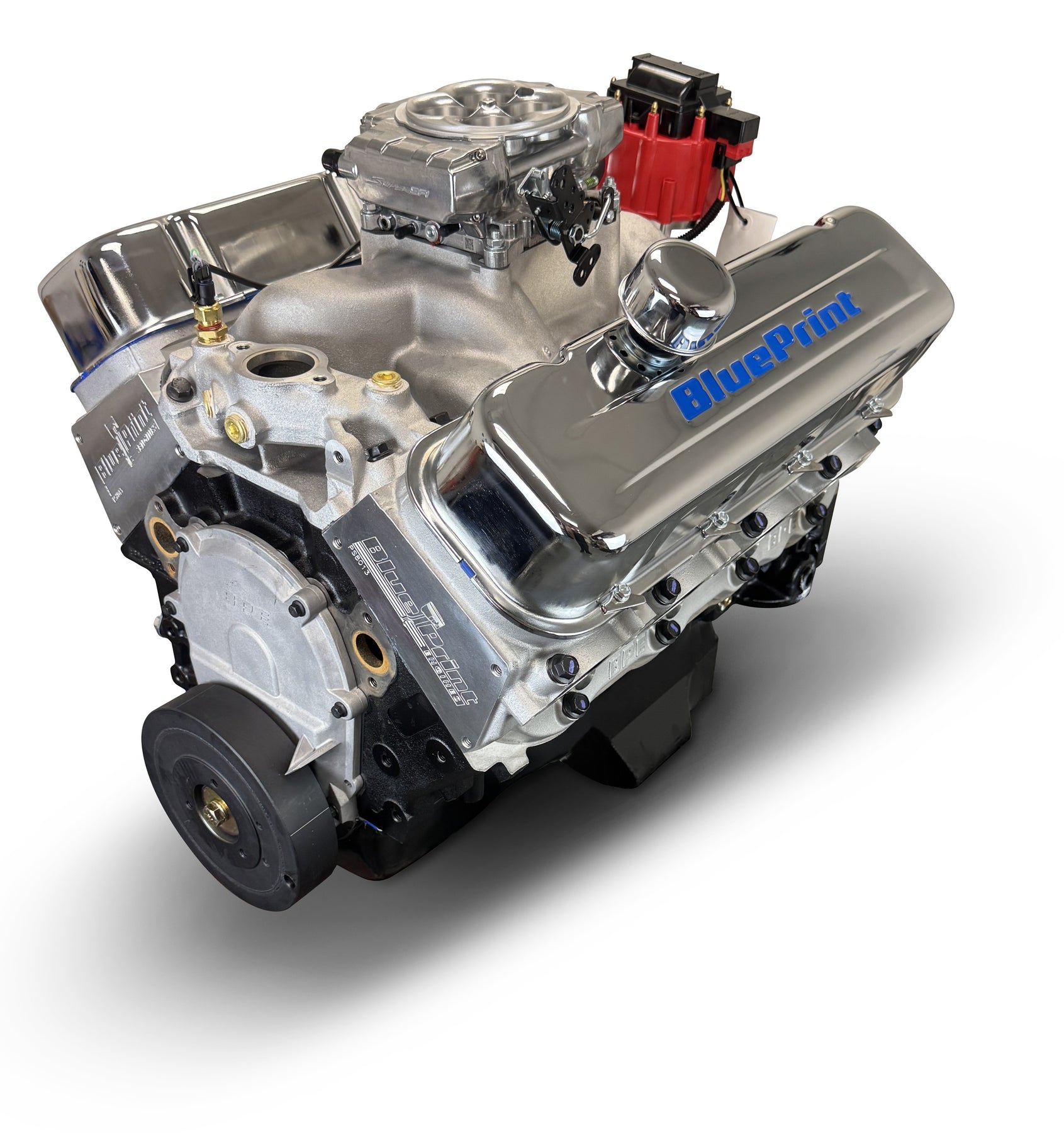

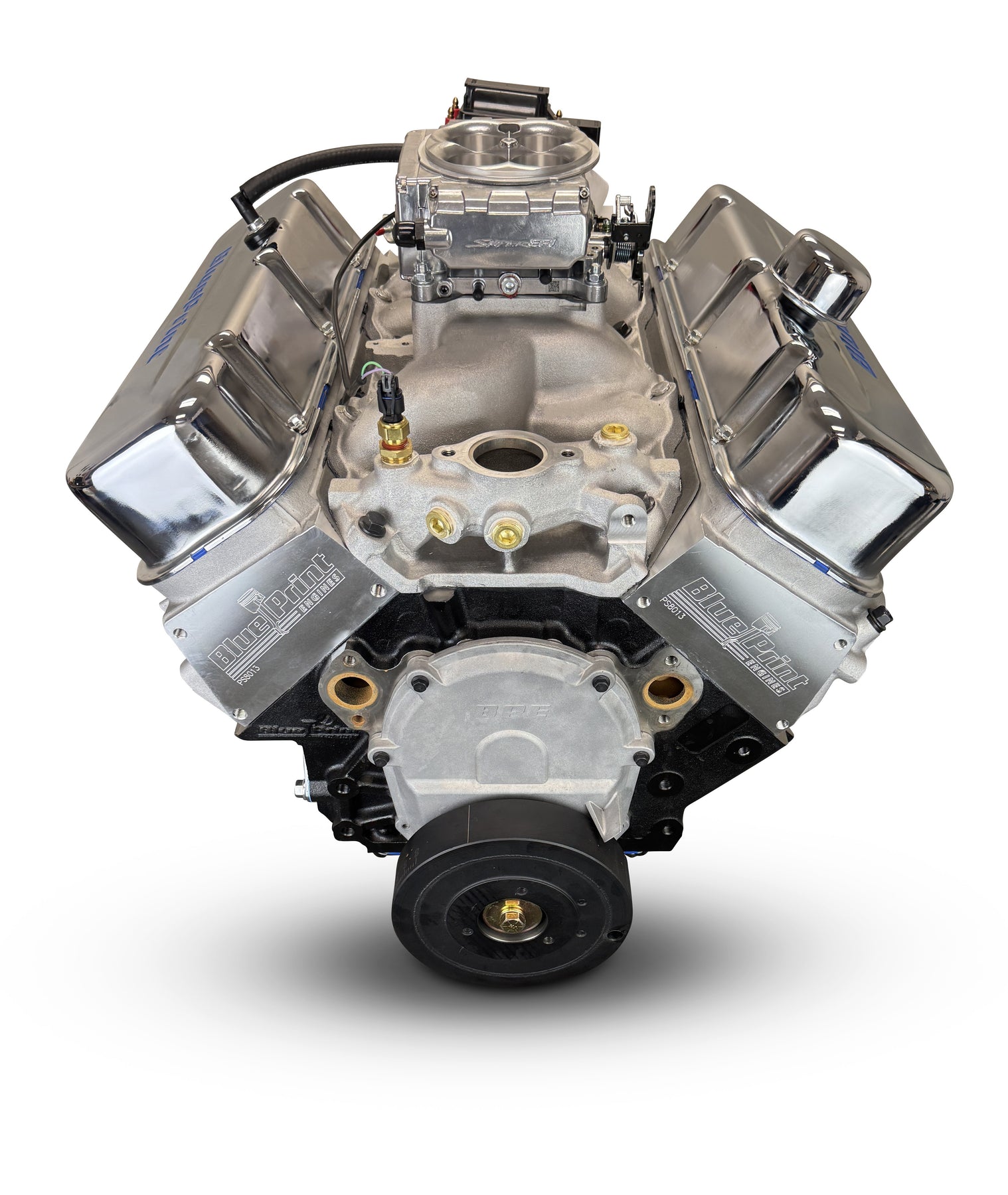

GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected
GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected
GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected
GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected
GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected
GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected

GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected

SKU: BP454CTF

GM BB Compatible 454 c.i. Engine - 460 HP - Base Dressed - Fuel Injected

SKU: BP454CTF

HP & Torque: 460 HP / 479 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.85:1

Camshaft: Hydraulic Roller Cam - .501 Intake .510 Exhaust Lift and 216 Intake / 228 Exhaust Duration @ .050 - 112° LSA

Pistons: Hypereutectic

Crankshaft: Steel Crank - 4.000" Stroke and Forged 6.135" Rods

Regular price $10,499.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • HP & Torque: 460 HP / 479 FT LBS
  • Compression Ratio: 9.85 to 1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Steel Crank
  • Hypereutectic Pistons

Block:

  • NEW BluePrint Cast Iron Block, 454 BBC
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.000" Stroke, 4.250" Bore
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Standard Deck

Rotating Assembly:

  • New BluePrint Steel Crankshaft
  • 4.000" Stroke  4.250" Bore
  • OEM type 6.135" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • External

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8013
  • 119cc chamber
  • 2.30" intake/1.88" exhaust valves
  • 316cc intake/124cc exhaust runners
  • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
  • Must verify header/exhaust clearance

Cam Specs:

  • Cam Type: Roller
  • .501 Intake .510 Exhaust
  • 216 Intake / 228 Exhaust duration
  • @ .050 - 112-degree lobe separation

Ignition Timing:

  • Initial timing - 10-16° and Total timing 32-34°

Also Includes:

  • Intake Manifold single plane, satin aluminum
  • Sniper EFI System
  • Pro Billet Distributor
  • Harmonic balancer
  • Valve covers, oil pan and timing cover

Notes:

  • This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel.
  • Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flex plate 399973.

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BP454CTF

Fuel Delivery Type: Sniper EFI

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: Weighted, 8" diameter

Flexplate/Flywheel: Weighted

Stall Converter: 2000-2400 rpm

Intake Manifold: Single plane, satin aluminum

Fuel Recommendation: 87 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Recommended Break in Oil : BPP710 (Click Here)

Recommended Service Oil : BPP10W30 (Click Here)

Recommended Oil Filter ; BPP51061 (Click Here)

Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 8 Quarts

Notes: New BluePrint block manufactured and machined in the USA

Header Partners:  Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
