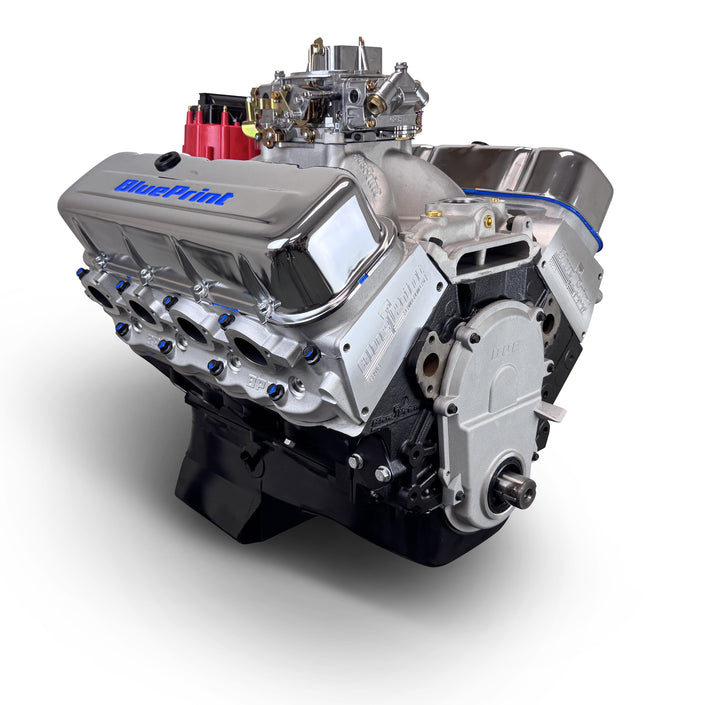

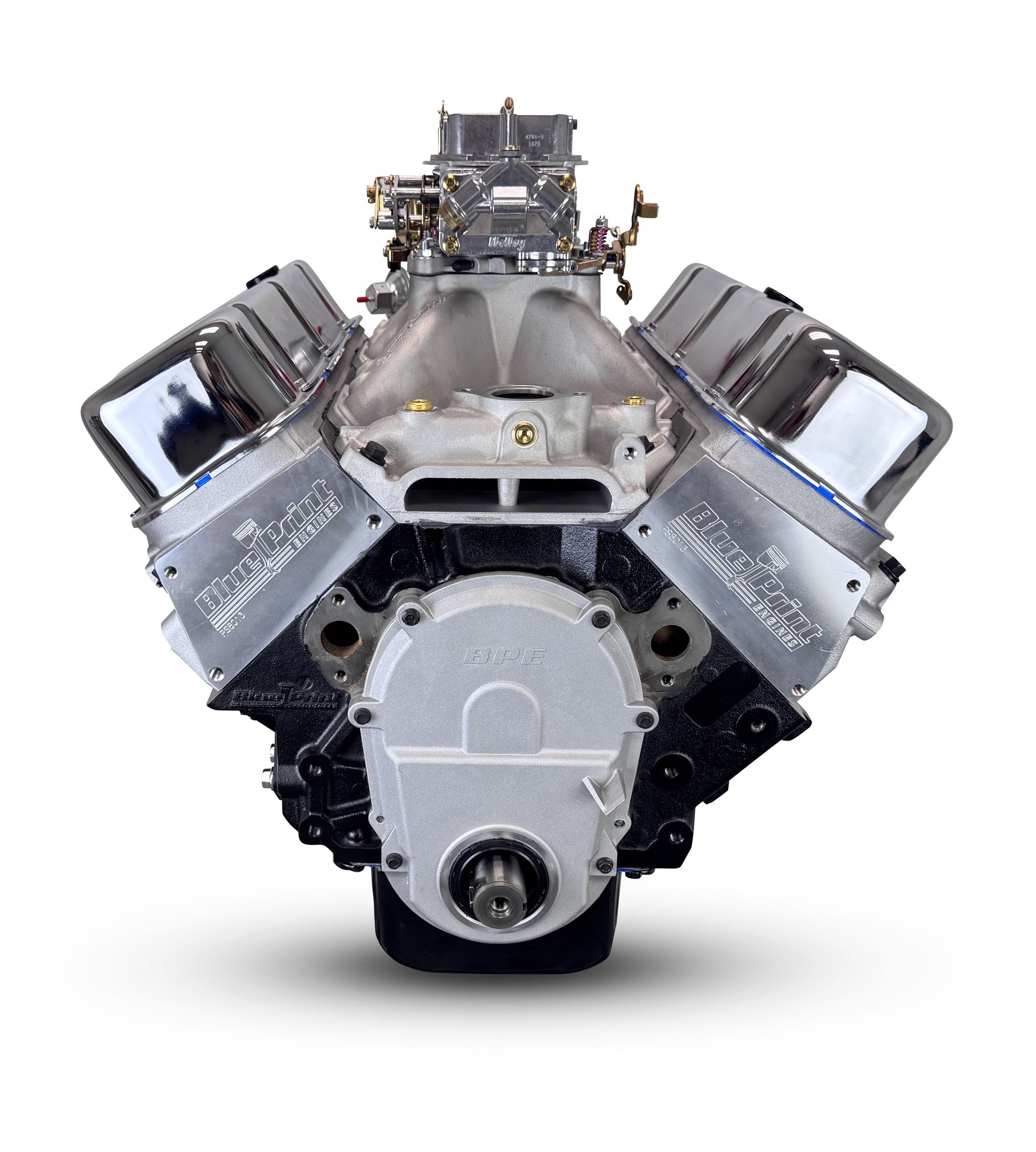

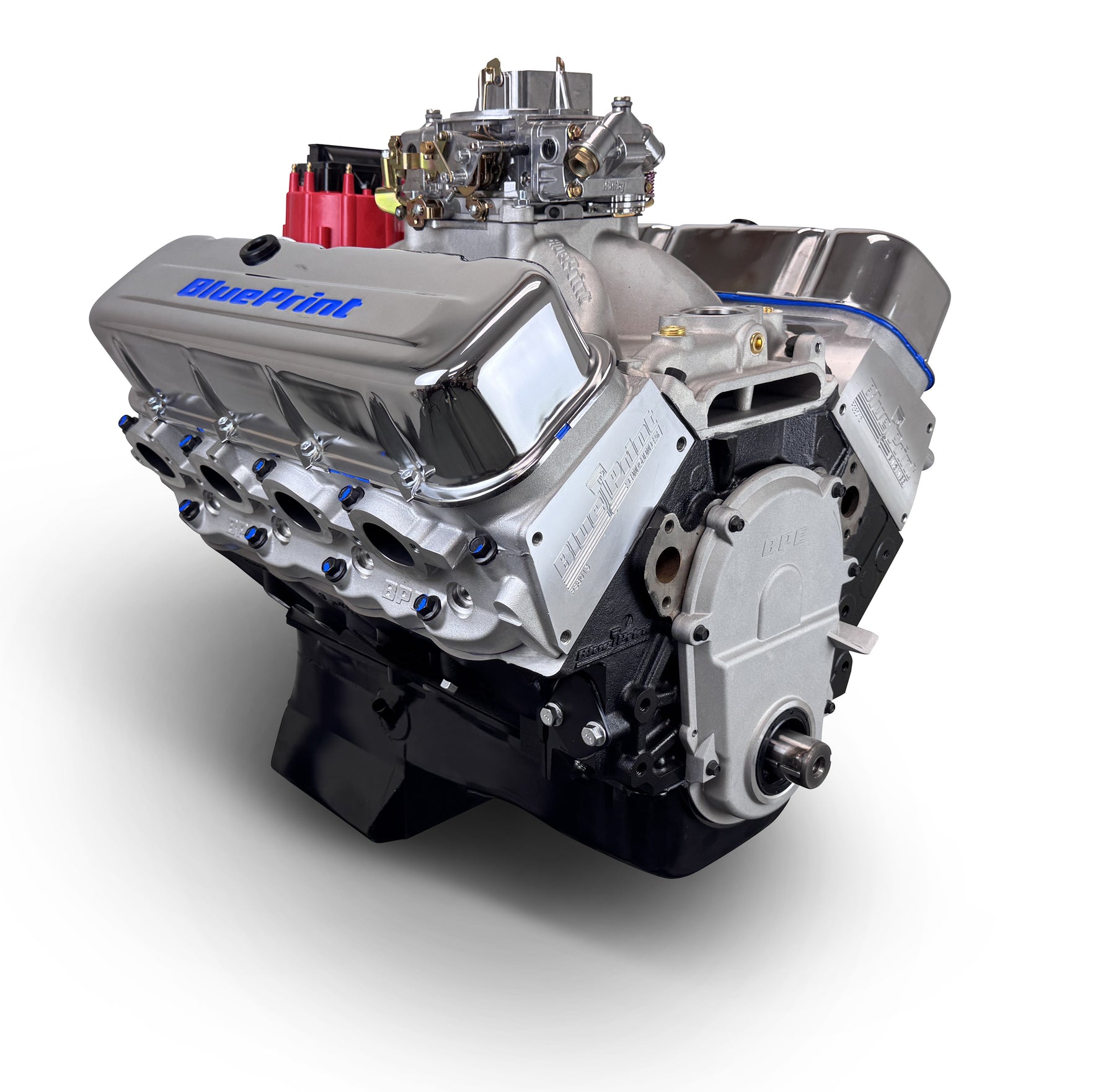

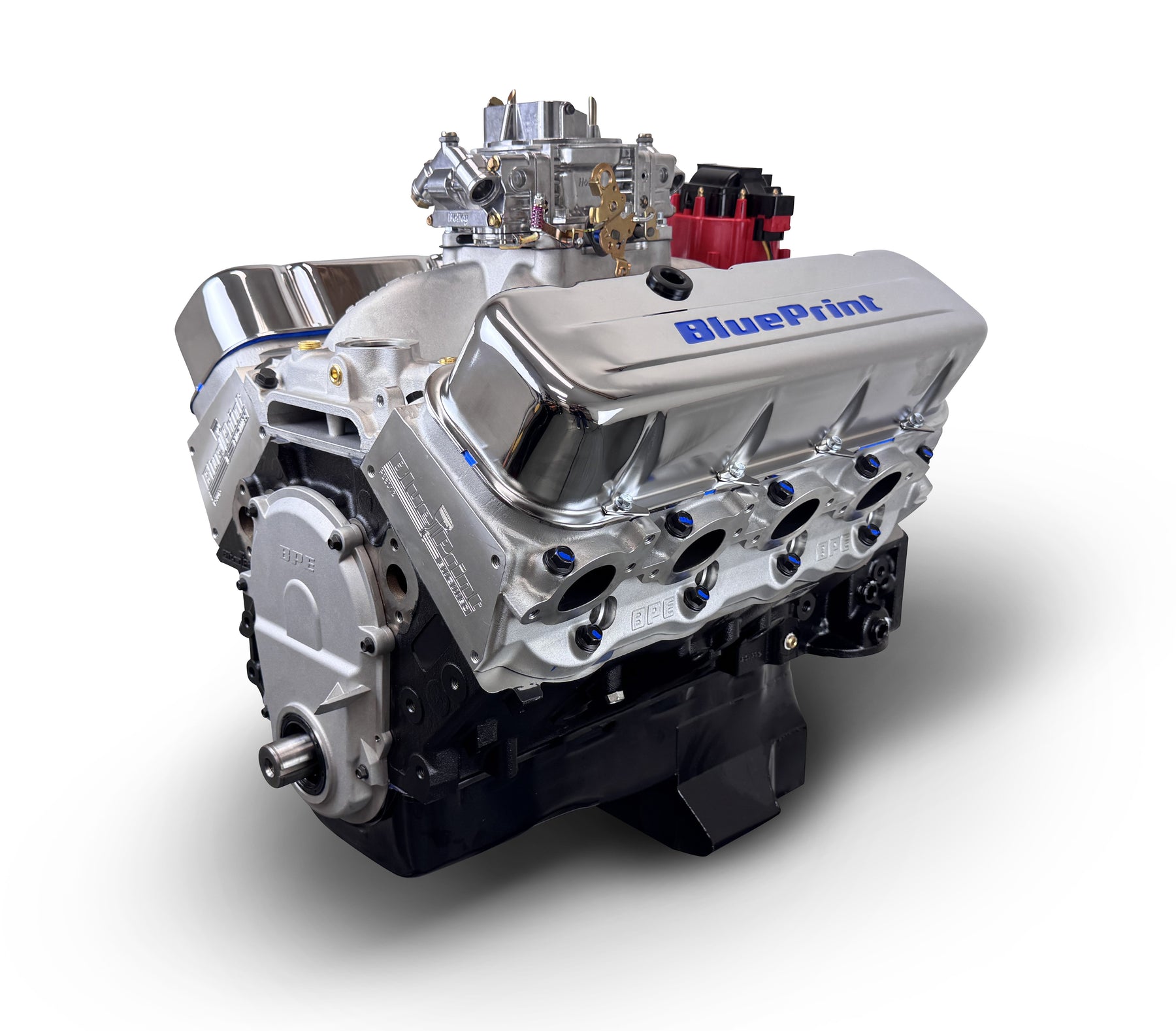

BluePrint Engines 496 Stroker Crate Engine | Big Block Chevy 454 Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

$9,889.00

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
Part #: BP4967CTC

Description

Dyno Tested Warranty
  • HP & Torque: 600 HP / 568 FT LBS
    Compression Ratio: 10.1:1
    Aluminum Heads
    Hydraulic Roller Cam
    Forged Crank
    Hypereutectic Pistons

Block:

  • NEW BluePrint Cast Iron Block, 454 BBC
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.250" Stroke, Bored .060" over
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Standard Deck

Rotating Assembly:

  • New BluePrint Forged Crankshaft
    4.250" Stroke
    OEM type 6.385" connecting rods w/ 150,000 psi bolts
    Hypereutectic pistons
    External

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8013
    119cc chamber
    2.30" intake/1.88" exhaust valves
    316cc intake/124cc exhaust runners
  • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
  • Must verify header/exhaust clearance

Cam Specs:

  • Cam Type: Roller
    .647 Intake .647 Exhaust
    248 Intake / 254 Exhaust duration
    @ .050 - 112 degree lobe separation

Ignition Timing:

  • 10-16° inital and total timing 32-34° at 3500 RPM

Also Includes:

  • Intake Manifold single plane, satin aluminum
    850cfm Carburetor
    Valve covers, oil pan and timing cover
    Dyno test results shipped with engine

Warranty:

  • 30 month / 50,000 mile

Notes:

  • NEW BluePrint 454ci block manufactured and machined in the USA!
    Not for EGR
  • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
  • Must verify header/exhaust clearance

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
Part #: BP4967CTC

Description

Dyno Tested Warranty
  • HP & Torque: 600 HP / 568 FT LBS
    Compression Ratio: 10.1:1
    Aluminum Heads
    Hydraulic Roller Cam
    Forged Crank
    Hypereutectic Pistons

Block:

  • NEW BluePrint Cast Iron Block, 454 BBC
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.250" Stroke, Bored .060" over
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Standard Deck

Rotating Assembly:

  • New BluePrint Forged Crankshaft
    4.250" Stroke
    OEM type 6.385" connecting rods w/ 150,000 psi bolts
    Hypereutectic pistons
    External

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8013
    119cc chamber
    2.30" intake/1.88" exhaust valves
    316cc intake/124cc exhaust runners
  • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
  • Must verify header/exhaust clearance

Cam Specs:

  • Cam Type: Roller
    .647 Intake .647 Exhaust
    248 Intake / 254 Exhaust duration
    @ .050 - 112 degree lobe separation

Ignition Timing:

  • 10-16° inital and total timing 32-34° at 3500 RPM

Also Includes:

  • Intake Manifold single plane, satin aluminum
    850cfm Carburetor
    Valve covers, oil pan and timing cover
    Dyno test results shipped with engine

Warranty:

  • 30 month / 50,000 mile

Notes:

  • NEW BluePrint 454ci block manufactured and machined in the USA!
    Not for EGR
  • Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
  • Must verify header/exhaust clearance

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.



Part Number: BP4967CTC

Fuel Delivery Type: Carbureted, 850 cfm, Manual choke

Spark Plug: BPP7938 NGK 7938 BKR5E

Spark Plug Gap: .035"

Harmonic Balancer: Weighted, 8" diameter

Flexplate/Flywheel: Weighted

Stall Converter: 2000-2400 rpm

Intake Manifold: Single plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Recommended Break in Oil : BPP710 (Click Here)

Recommended Service Oil : BPP10W30 (Click Here)

Recommended Oil Filter ; BPP51061 (Click Here)

Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 8 Quarts

Notes: New BluePrint block manufactured and machined in the USA,

Click here to download a copy of the Installation Guide that came with your BluePrint engine.
