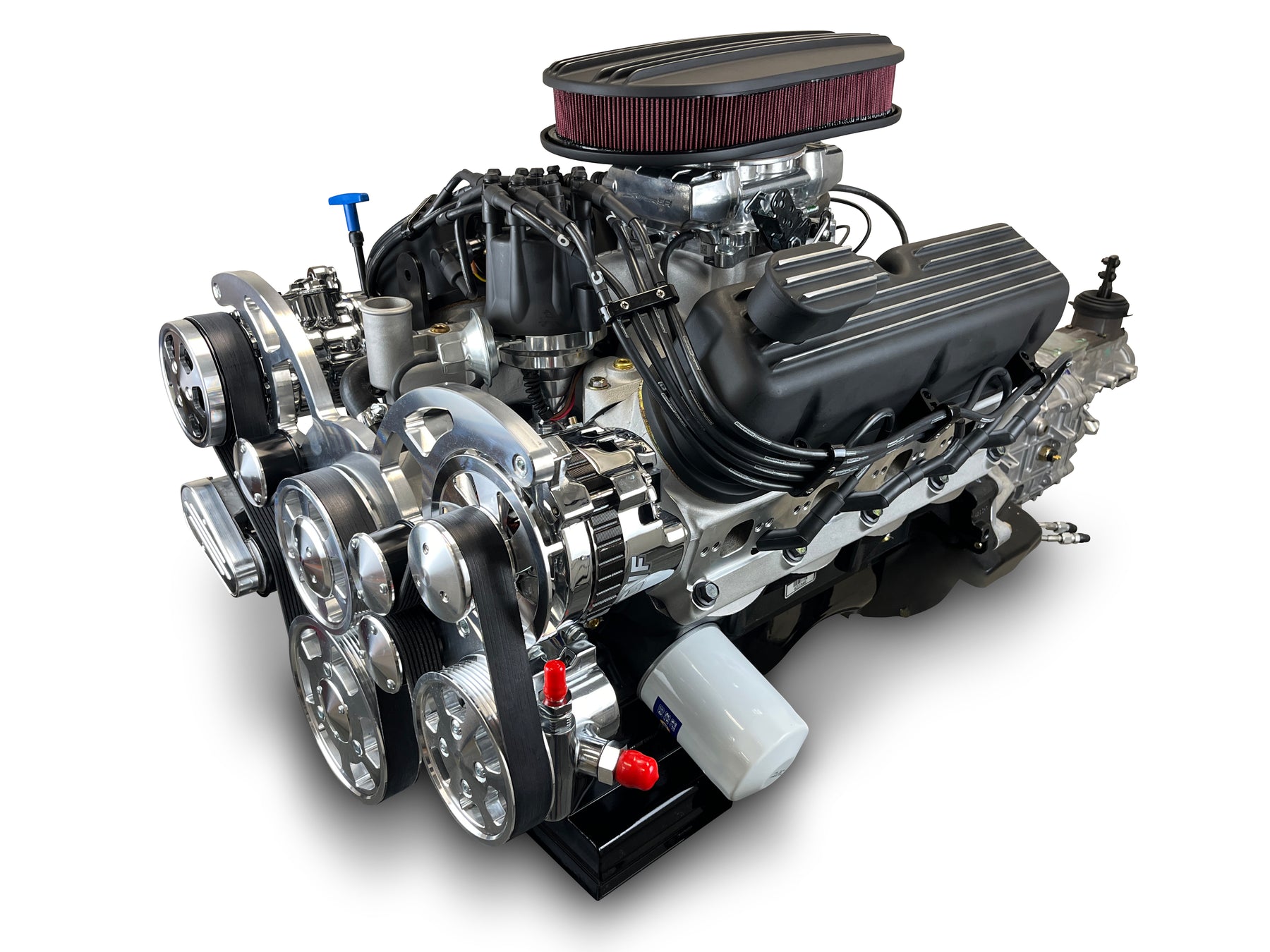

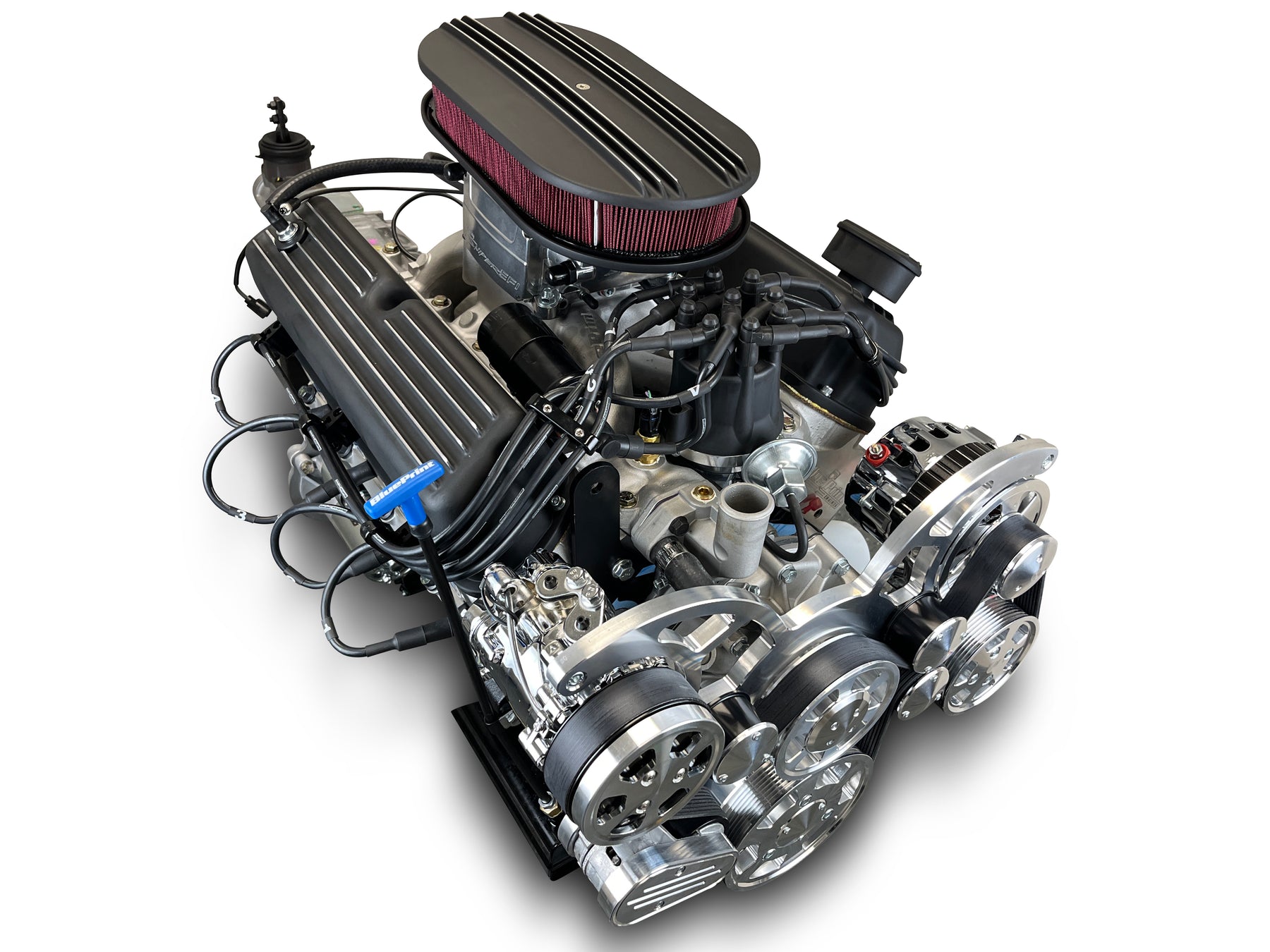

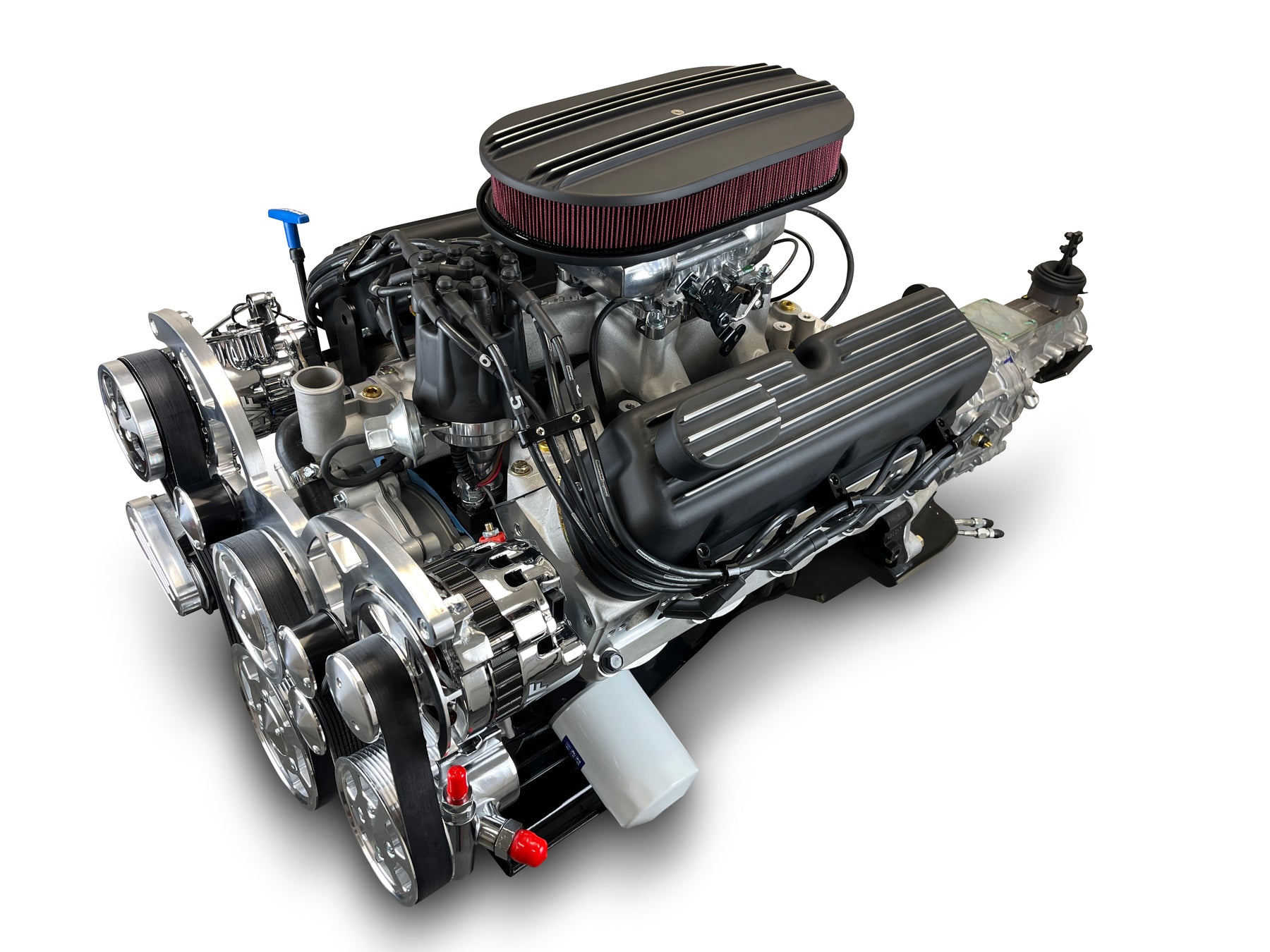

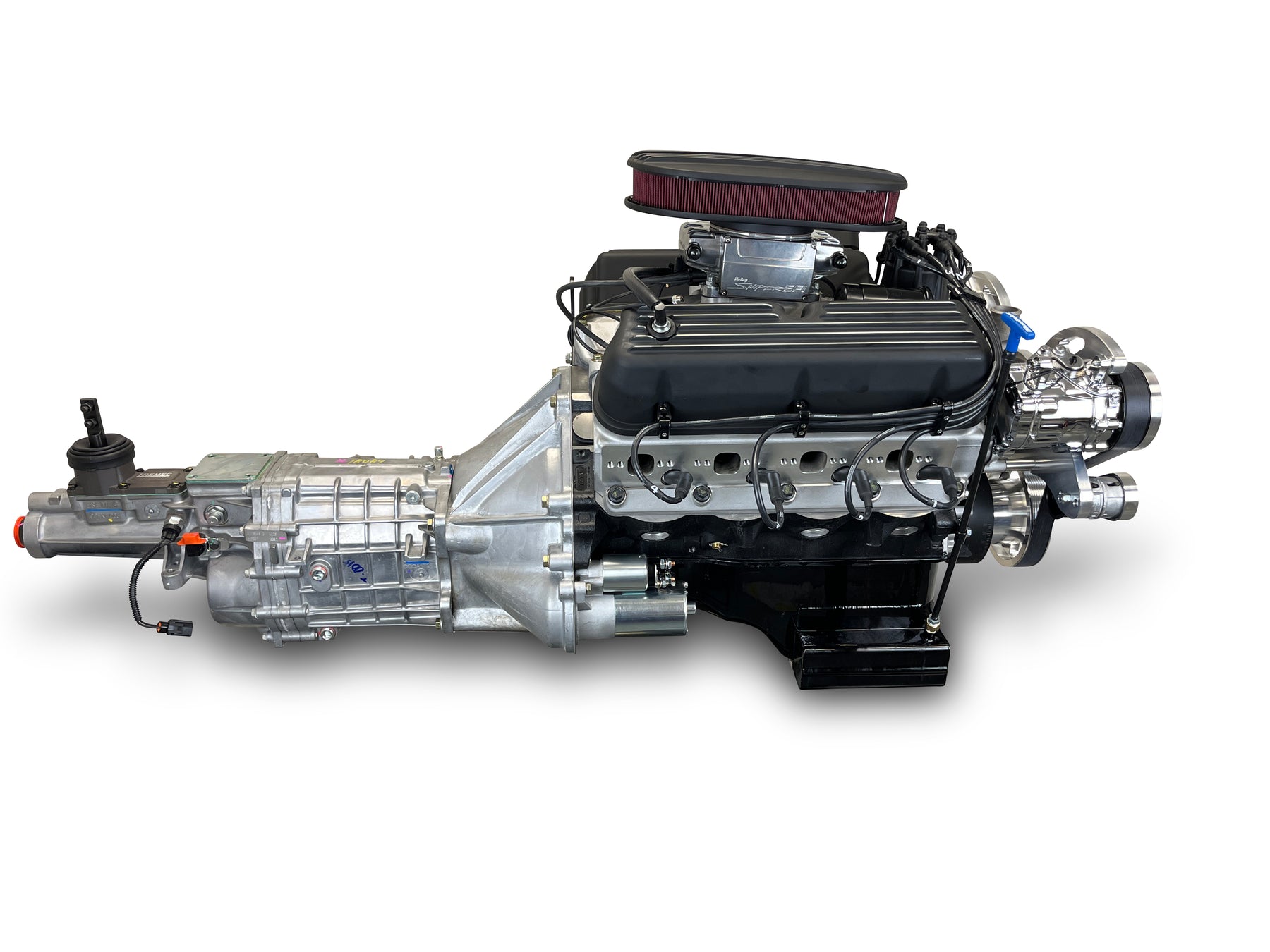

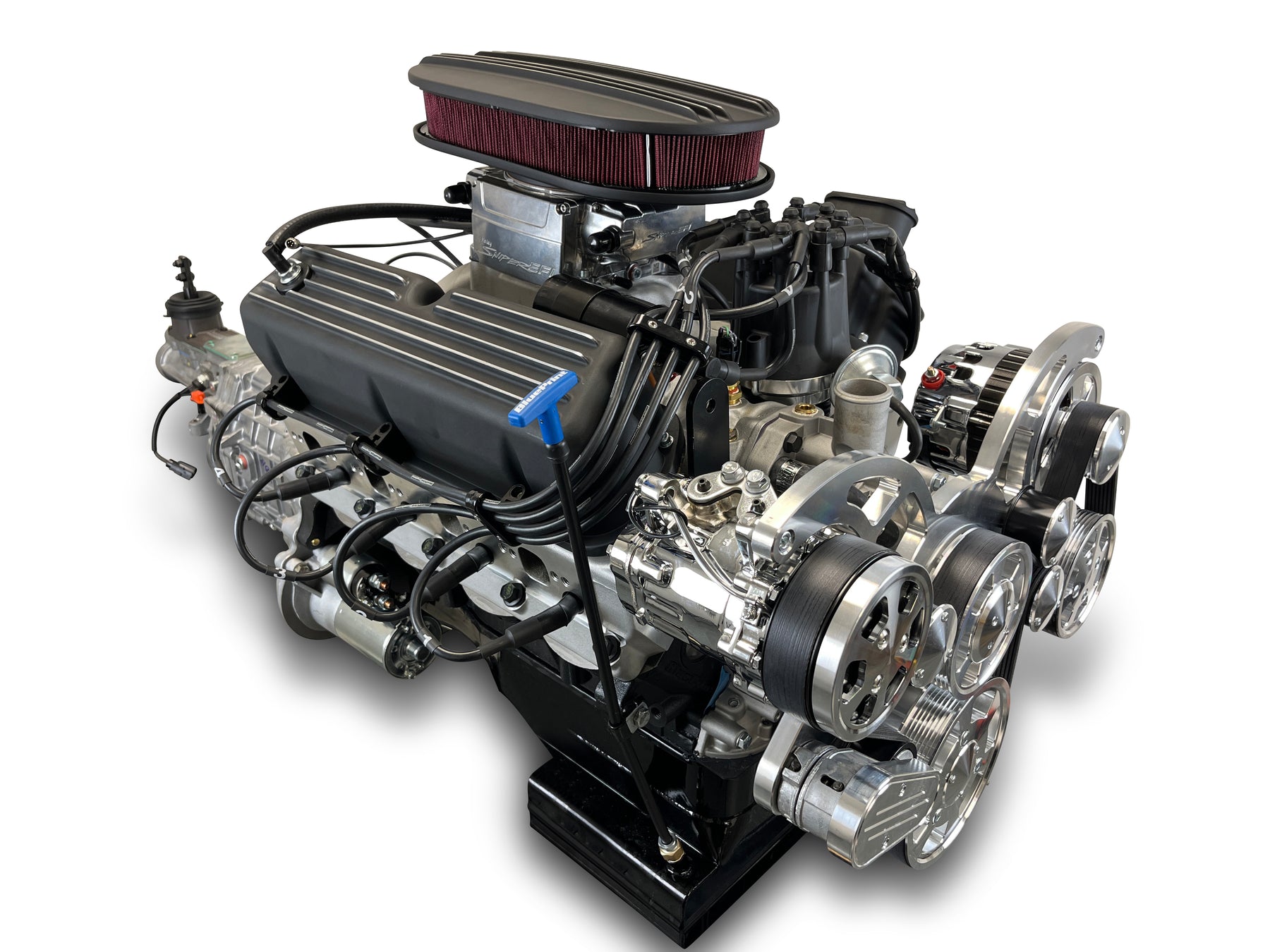

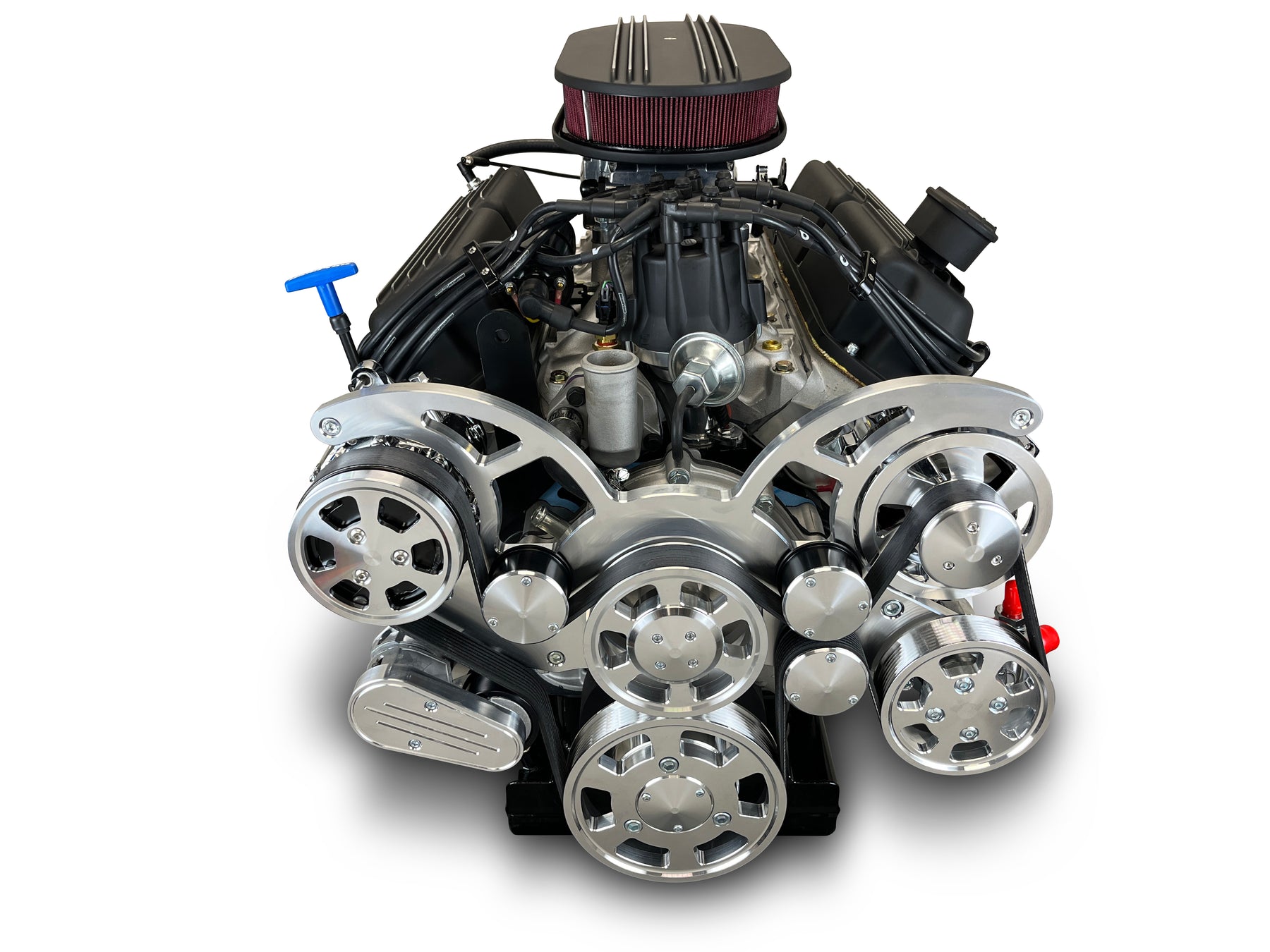

Name: Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series with Polished Pulley Kit - Fuel Injected
Brand: BluePrint Engines
SKU: B302FKTKX
Price: 18949.0 USD
Availability: InStock

Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series with Polished Pulley Kit - Fuel Injected

HP & Torque: 370 HP / 350 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.5:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust and 218 Intake / 226 Exhaust Duration @ .050 - 112 LSA

Pistons: Hypereutectic

Crankshaft: Steel Crank - 3.000" Stroke and OEM Type 5.090" Rods

Price

Secure payments

Financing available at checkout with Affirm

Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series with Polished Pulley Kit - Fuel Injected

B302FKTKX

Description:

Horsepower & Torque: 370 Horsepower / 350 FT LBS
Compression Ratio: 9.5:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons

Block:

NEW BluePrint Engines' High-Strength Cast Iron Block
Increased Deck Thickness and Strength Webbing
Priority Main Oiling
4000" Bore
4-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design

Rotating Assembly:

Ford, Machined and Balanced by BluePrint Engines
3.000" Stroke
OEM Type 5.090” Connecting Rods
Hypereutectic Pistons
50oz External Balance

Cylinder Heads:

BluePrint Aluminum Cylinder Heads -HP9009
60cc Chamber
2.02" Intake / 1.60" Exhaust Valves
190cc Intake / 60cc Exhaust Runners

Cam Specs:

Cam Type: Roller
.543 Intake / .554 Exhaust Lift
218 Intake / 226 Exhaust Duration
@.050-112 Degree Lobe Separation

Ignition Timing:

34 Degrees Total at 3500 RPM

Also Includes:

Holley Sniper EFI System
EFI Fuel Pump Kit
Intake Manifold
Water Pump
Spark Plugs and Wires
Valve Covers
Distributor
Harmonic Balancer
Painted Oil Pan
Thermostat and Thermostat Housing

Assembled with Complete TKX Transmission Package:

Mcleod Super Street Pro Single Disk Clutch
Hydraulic Throw Out Bearing
Aluminum Bell Housing
Flywheel
Engine Guard
Starter

First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.81:1

Accessory Drive Installed and Included:

Front Accessory Drive with A/C Compressor, Alternator, Water Pump and Power Steering Pump

Notes:

Not for use in pollution-controlled vehicles
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
PACKAGE SHIPS ASSEMBLED AS PICTURED.
IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

*A bronze distributor gear is NOT recommended on this engine

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: B302FKTKX

Fuel Delivery Type: Fuel Injection

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP50 - 50 Ounce, 6.4" Diameter

Flexplate/Flywheel: 50 Ounce Weighted

Stall Converter: 1800-2200 rpm

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,3,7,2,6,5,4,8

Notes: Not for EGR *Painted Ford Blue* Recommended break in oil for your BluePrint Crate Engine: BPP710

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
