Overview:

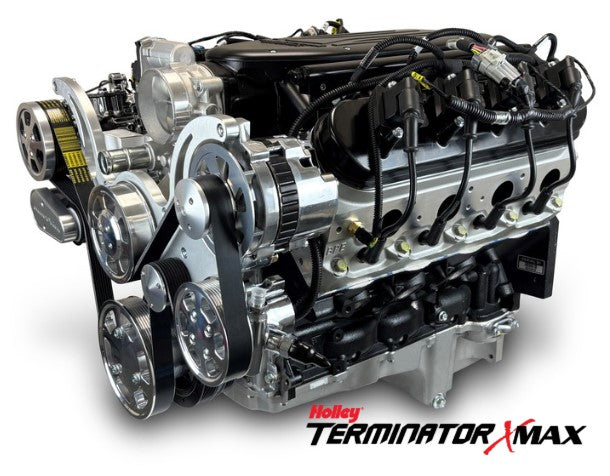

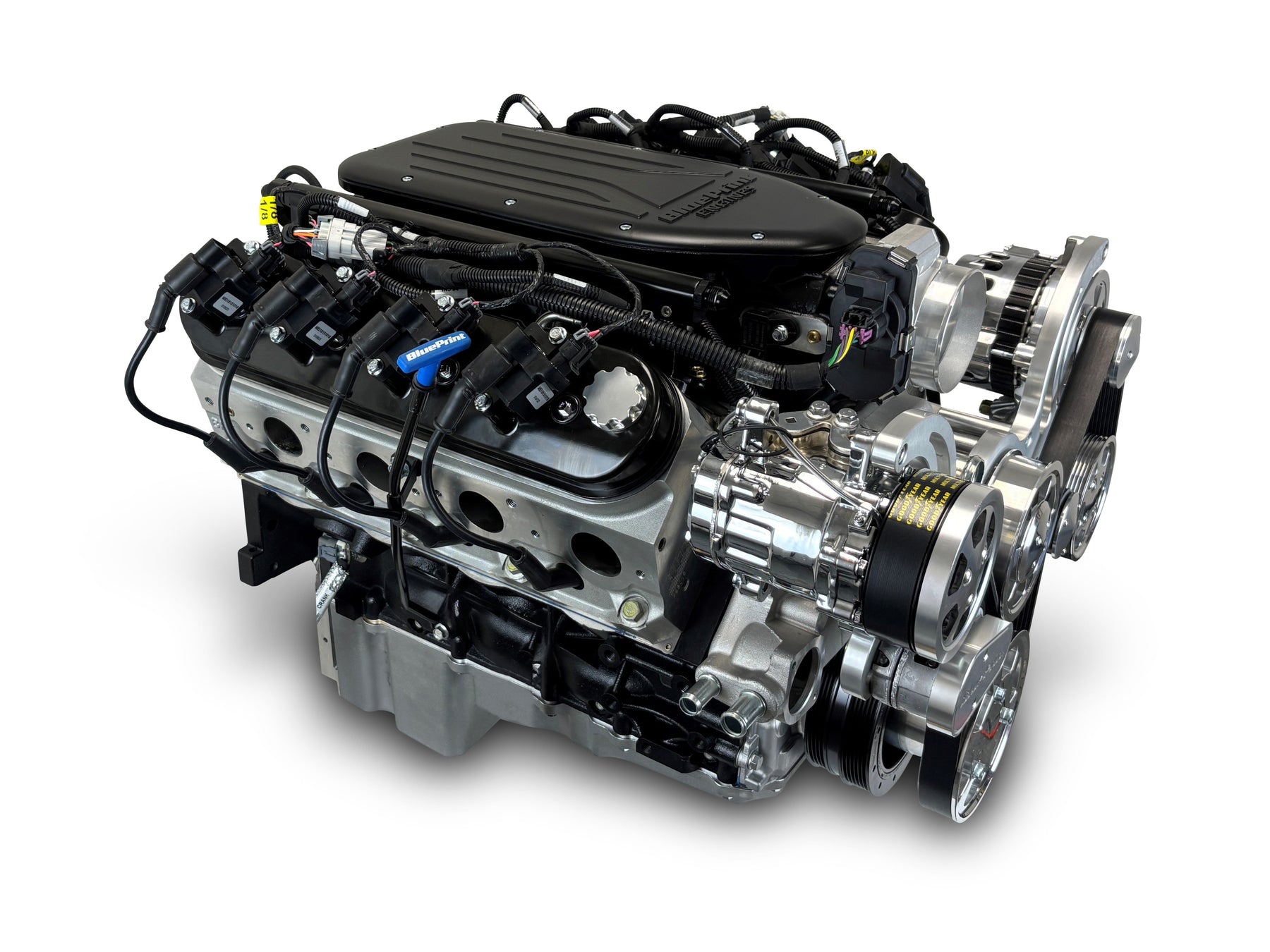

This powerhouse of an engine build is a testament to precision engineering and raw performance. Delivering a formidable 585 horsepower and 520 ft. lbs. of torque, it’s driven by a BluePrint Engines LSX-style high-strength cast iron block, paired with forged crank and pistons for uncompromising durability. The 11:1 compression ratio ensures optimal combustion efficiency, while LS3 aluminum heads and a hydraulic roller cam (featured twice for emphasis on valvetrain performance) bring refined airflow and aggressive cam timing. Feeding this beast is a drive-by-wire throttle body and LS3 cast aluminum intake manifold, supported by a complete injector and fuel rail kit for consistent fuel delivery. The LS swap oil pan, water pump, and gas pedal round out the essentials, while the Holley Terminator X Max ECU provides cutting-edge engine management. A polished pulley kit featuring an LS2-style water pump, 140-amp alternator, peanut-style A/C compressor, and Type II power steering pump with remote reservoir ensures accessory systems run smoothly and reliably. Altogether, this setup blends brute force with modern control, making it ideal for high-performance street applications.
Description:
- Horsepower & Torque: 585 Horsepower / 520 ft. lbs. Torque
- Compression Ratio: 11:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0695" Bore
- 6-Bolt Main
Rotating Assembly:
- Forged Crankshaft
- 4.125" Stroke
- Forged 6.125" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake /102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .624 Intake / .624 Exhaust Lift
- 239 Intake / 255 Exhaust Duration
- @.050-114 Degree Lobe Separation

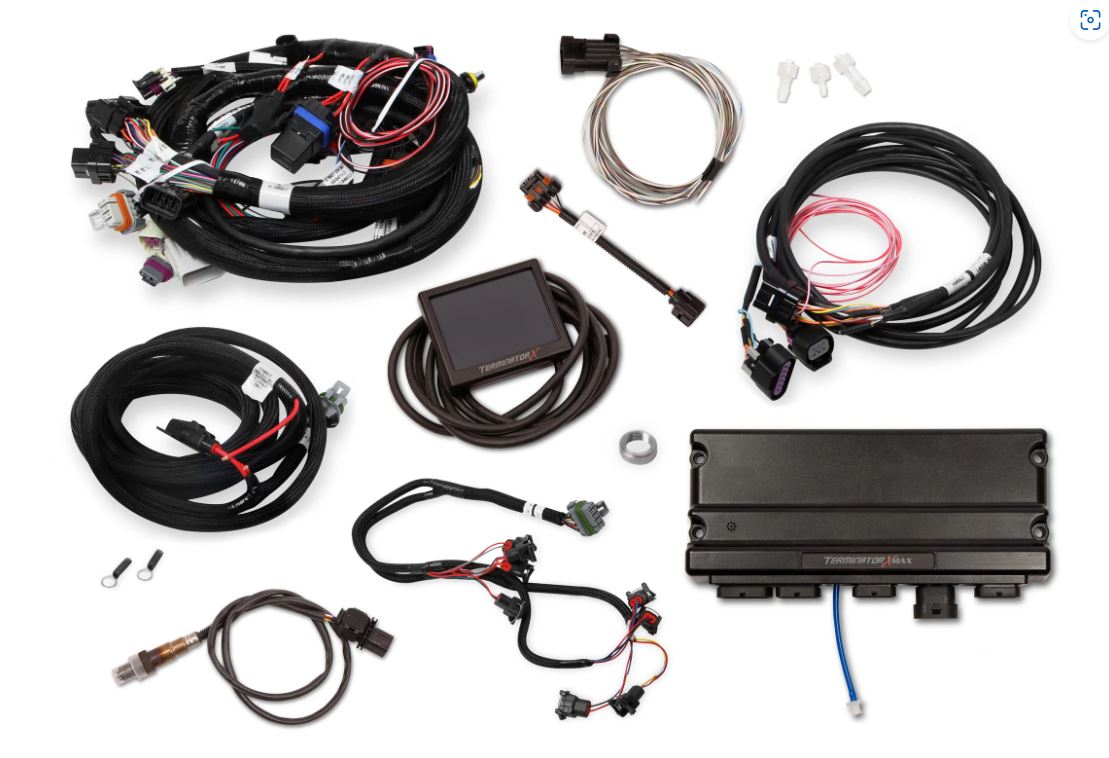

Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine
Also Includes:
-
Drive by Wire Throttle Body - BPP12191019
- LS3 Cast Aluminum Intake Manifold
- LS Swap Oil Pan - BPP81074

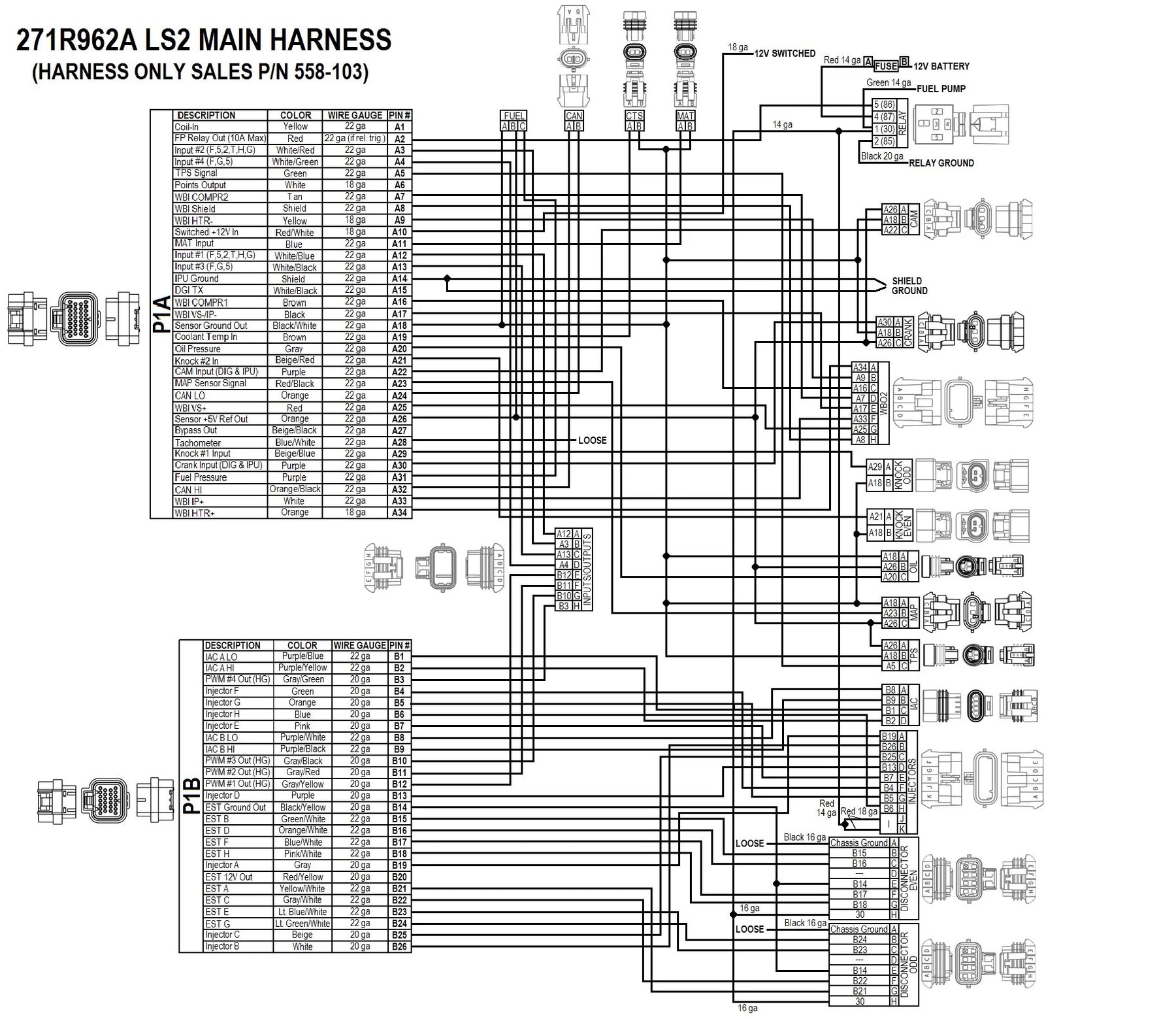

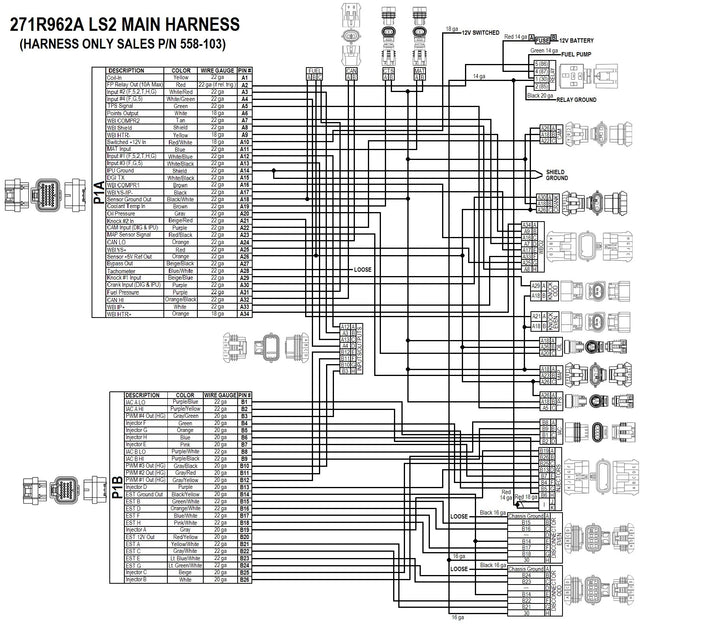

- Engine Harness and ECU Kit
- Injectors and Fuel Rail Kit
- Spark Plugs & Wiring
- Harmonic Balancer
- Timing Cover
- Valve Covers
- Coil Packs
- Gas Pedal

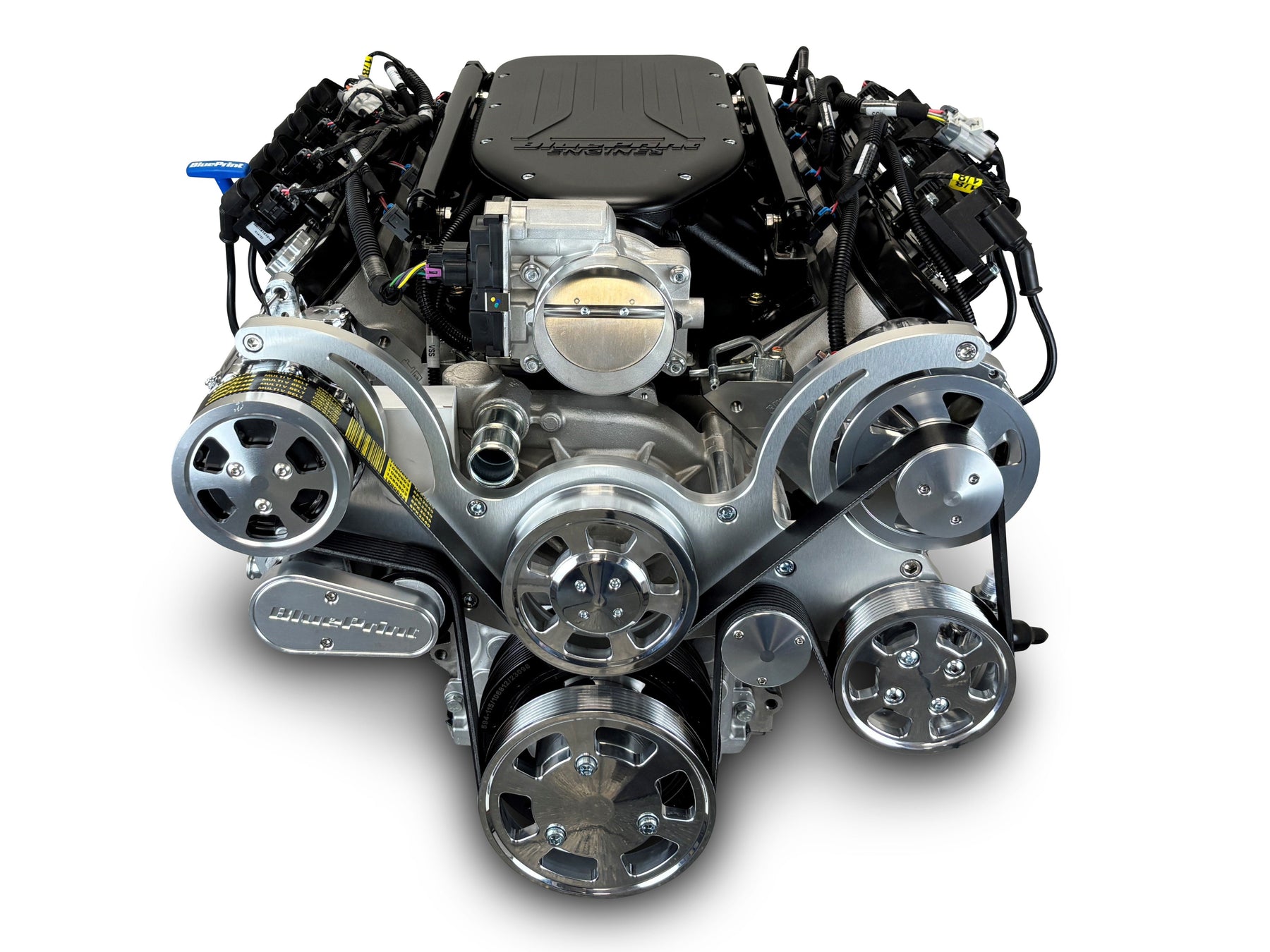

- Polished Pulley Kit
- LS2 Style Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes:
- This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
-
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
- Not for use in pollution-controlled vehicles or in dry sump applications.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
