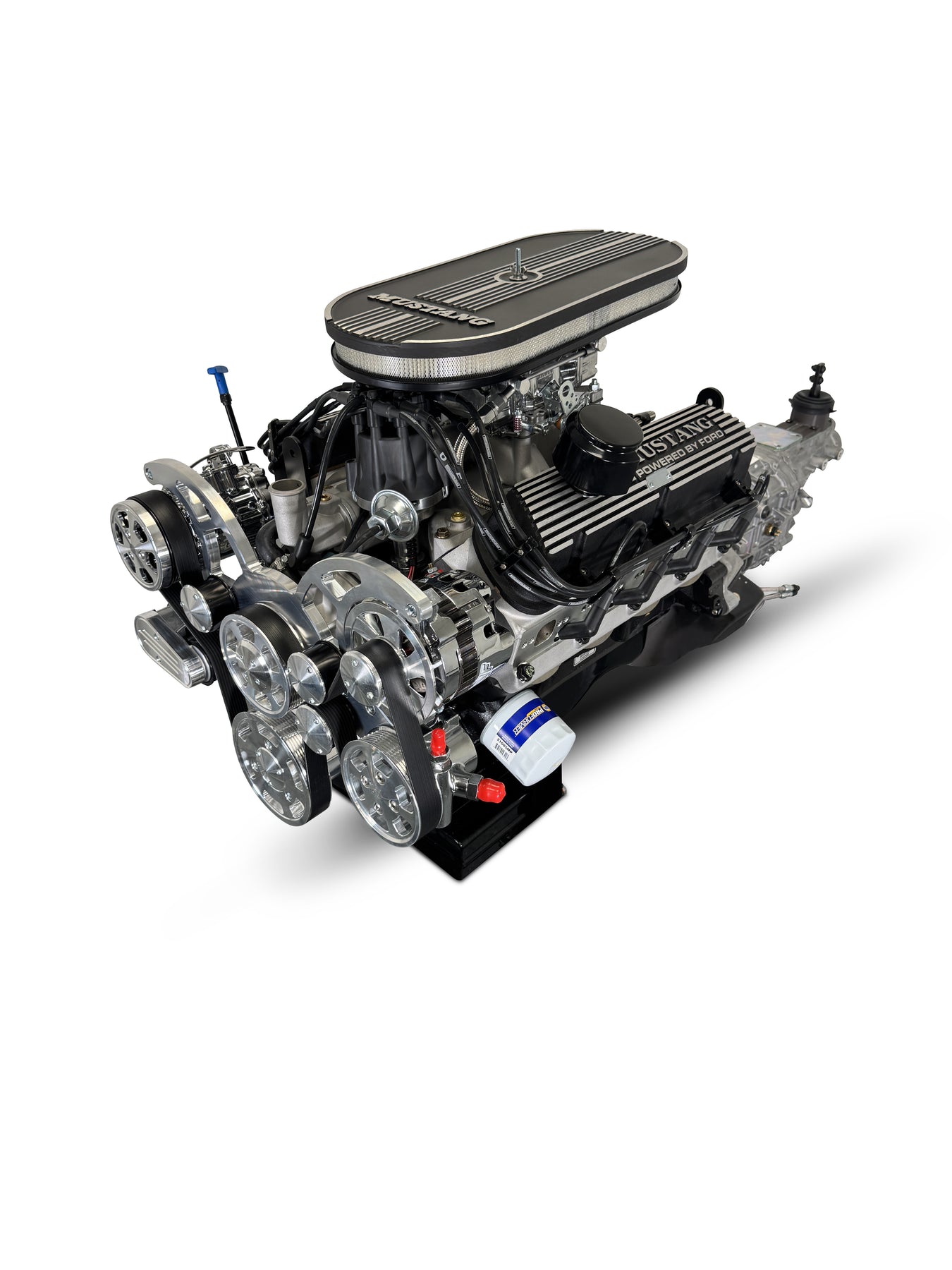

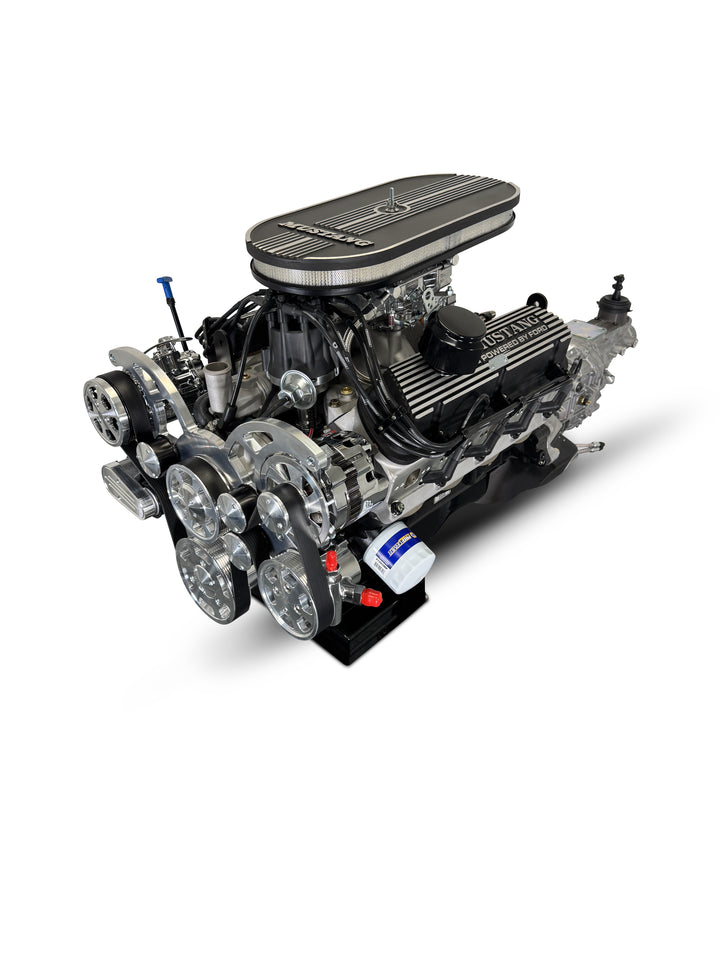

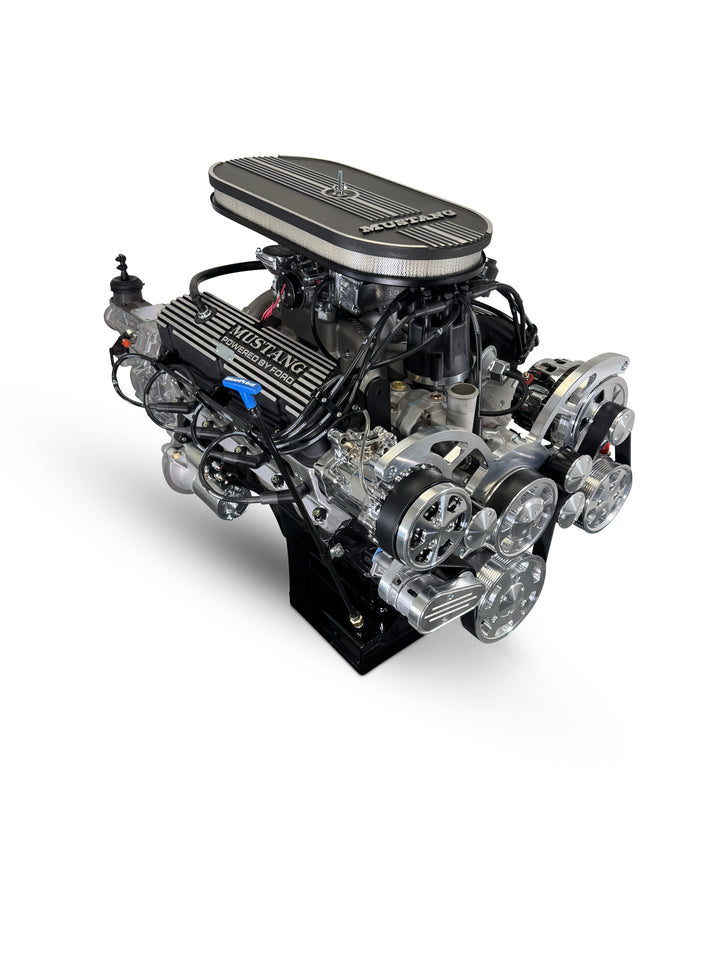

Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted
Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted

Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted

SKU: B347KTKXM

Ford Small Block Compatible 347 c.i. Engine and TKX Manual Transmission - 415 Horsepower - Mustang Edition Builder Series with Polished Pulley Kit - Carbureted

SKU: B347KTKXM

Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust and 218 Intake / 226 Exhaust Duration @ .050 - 112 LSA

Pistons: Forged

Crankshaft: Cast Crank - 3.400" Stroke and Forged 5.400" Rods

/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • 4.000" Bore
  • 4-Bolt Main
  • 1-piece Rear Main Seal
  • Improved Water Jacket Design

Rotating Assembly:

  • Cast Crankshaft
  • 3.400" Stroke
  • Forged I-Beam 5.400" Connecting Rods
  • Forged Pistons
  • 28oz Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP9009
  • 60cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 190cc Intake / 65cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .543 Intake / .554 Exhaust Lift
  • 218 Intake / 226 Exhaust Duration
  • @.050-112 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke
  • Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*

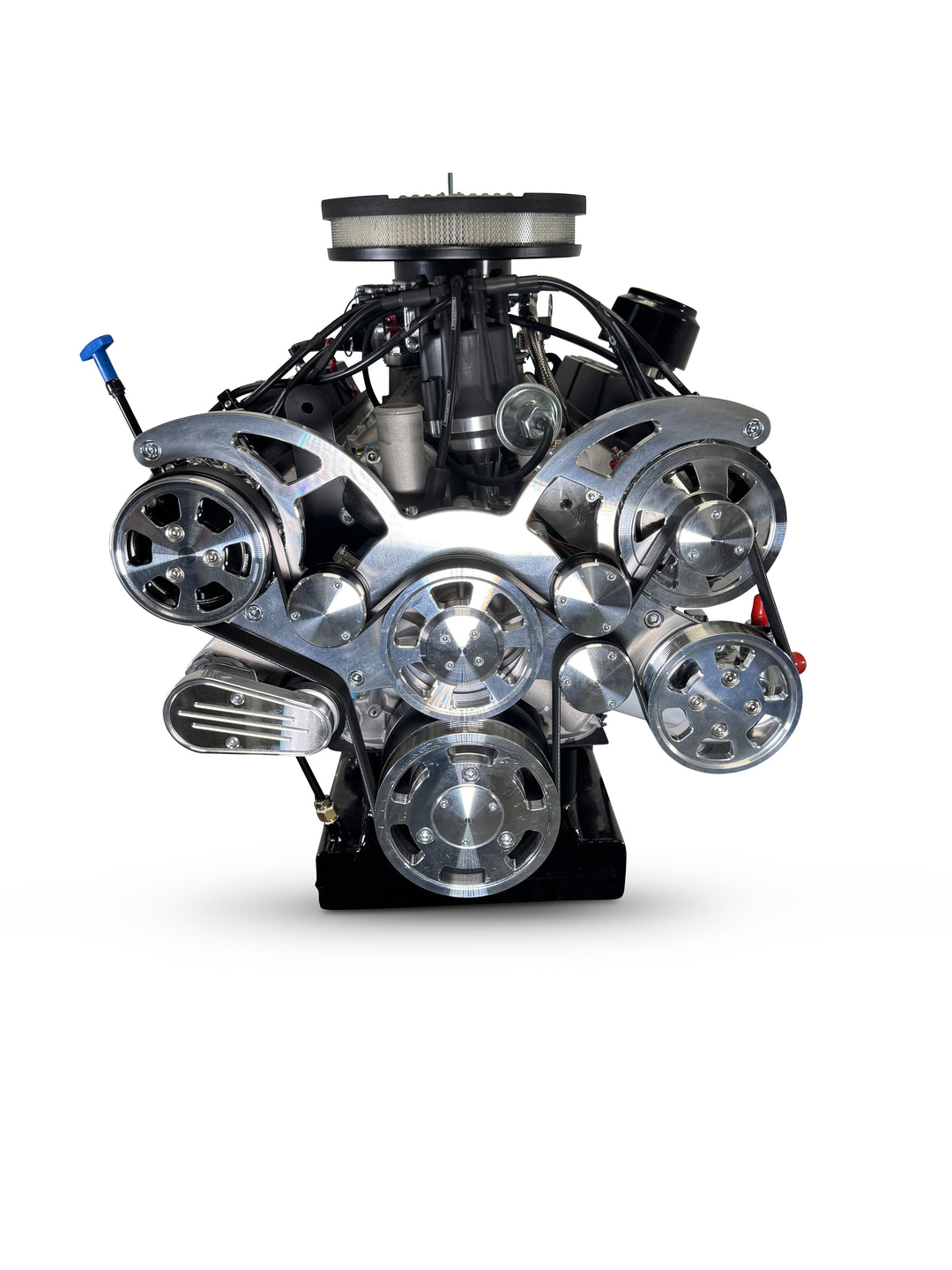

  • Front Accessory Drive with A/C Compressor, Power Steering Pump, Alternator, and Water Pump
  • Dual Plane, Satin Aluminum Intake Manifold
  • Pro Billet Distributor
  • 7 Quart Oil Pan
  • Electric Fuel Pump
  • Thermostat and Thermostat Housing

Assembled with Complete TKX Transmission Package:

  • Mcleod Super Street Pro Single Disk Clutch
  • Hydraulic Throw Out Bearing
  • Aluminum Bell Housing
  • Flywheel
  • Engine Guard
  • Starter
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.81:1

Notes:

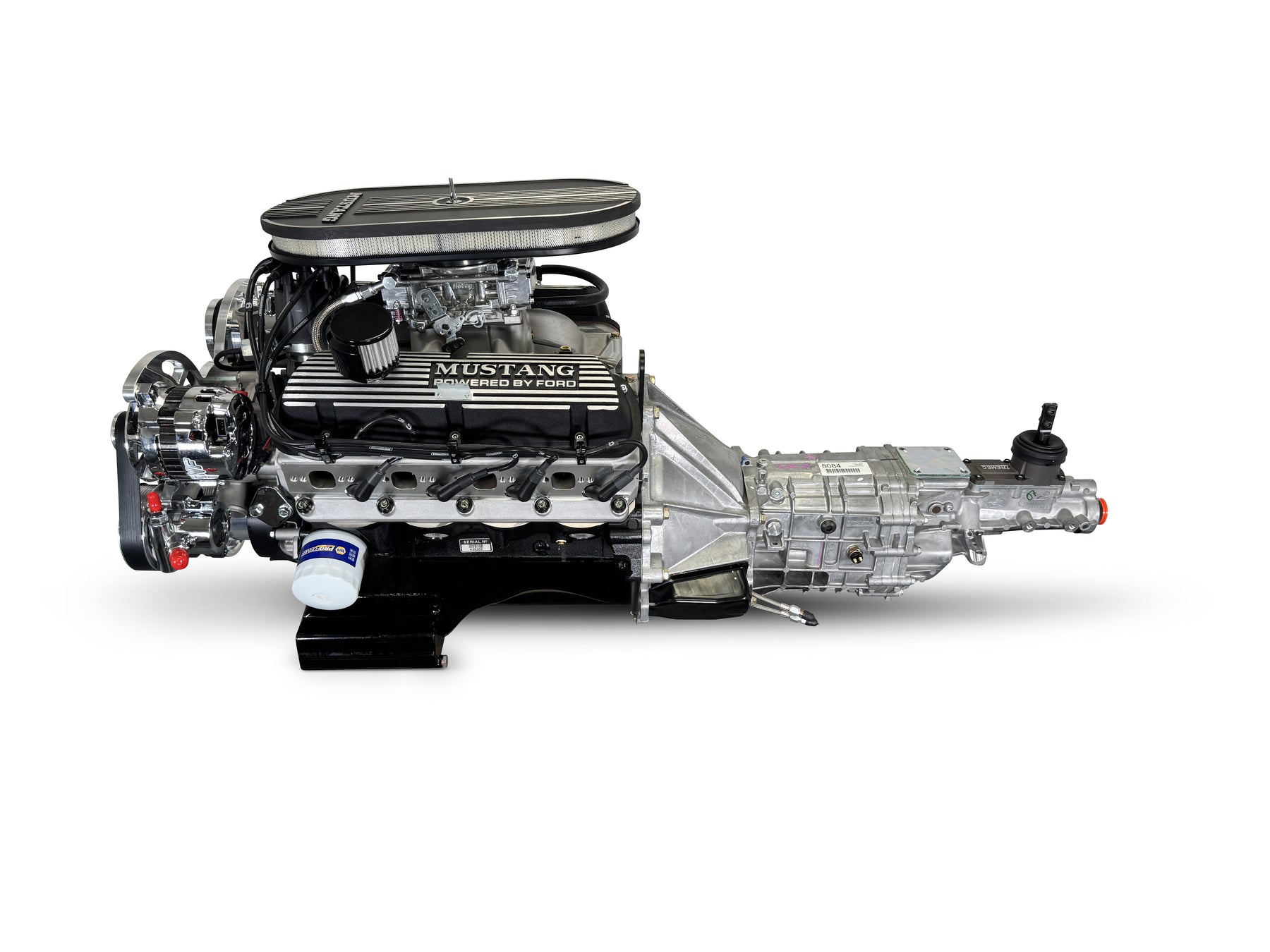

  • Package Ships assembled as pictured.
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM


    Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    Part Number: B347KTKXM

    Fuel Delivery Type: 600 CFM carburetor

    Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

    Spark Plug Gap: .035"

    Harmonic Balancer: BPP28 - 28.4 Ounce, 6.4" Diameter

    Flexplate/Flywheel: 28.4 Ounce Weighted

    Stall Converter: 2000-2400 rpm

    Intake Manifold: Dual plane, satin aluminum

    Fuel Recommendation: 91 Octane

    Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

    Firing Order: 1,3,7,2,6,5,4,8

    Notes: Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
