GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 625 HP - Standard Edition Builder Series with Natural Pulley Kit - Fuel Injected

GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 625 HP - Standard Edition Builder Series with Natural Pulley Kit - Fuel Injected

SKU: BLS4273KT56

GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 625 HP - Standard Edition Builder Series with Natural Pulley Kit - Fuel Injected

SKU: BLS4273KT56

Horsepower & Torque: 625 Horsepower / 565 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 – 114 LSA

Pistons: Forged

Crankshaft: Forged Crank – 4.125" Stroke and Forged 6.125" Rods

/
  • Secure payments
  • Financing available at checkout with Affirm

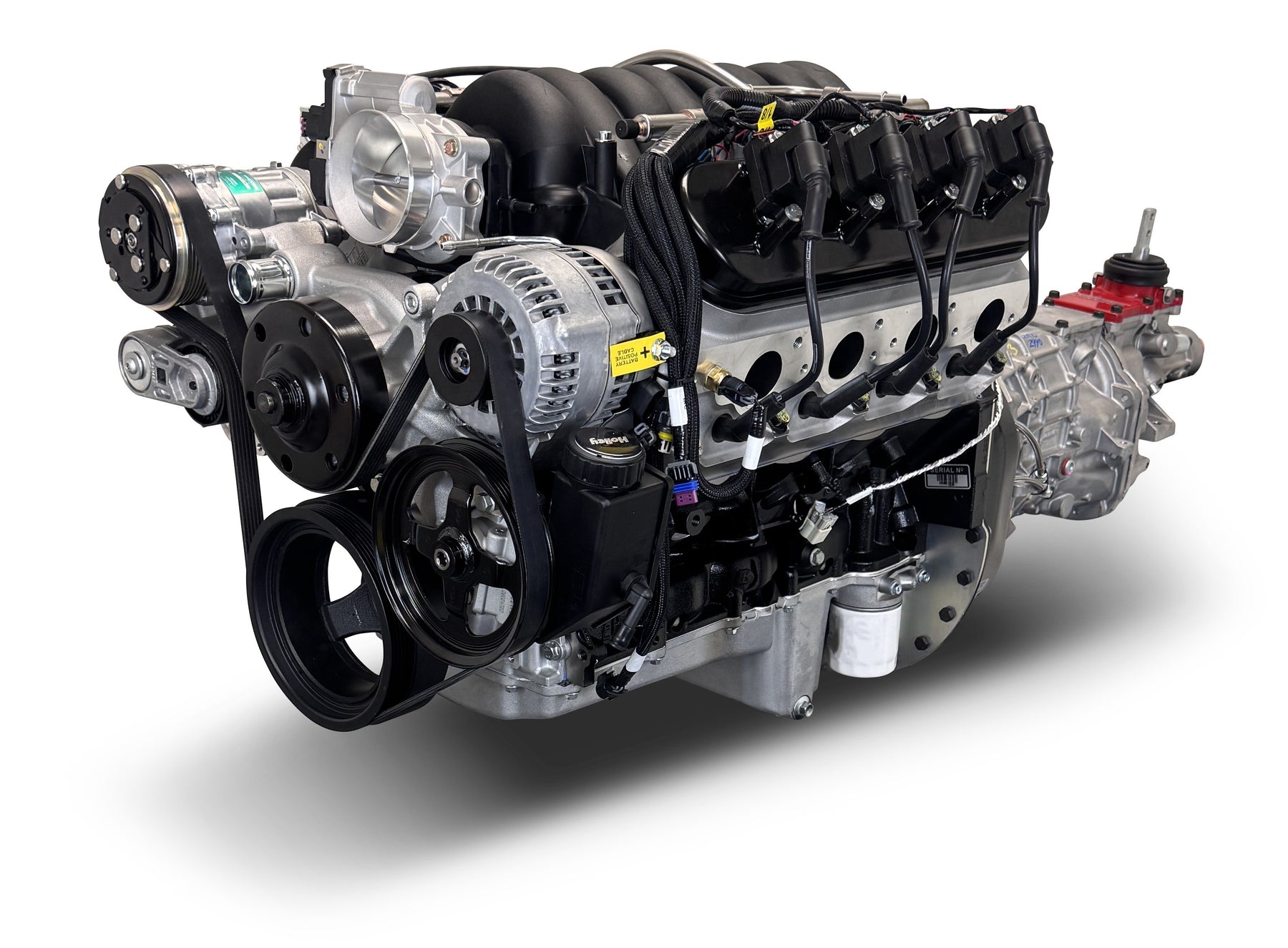

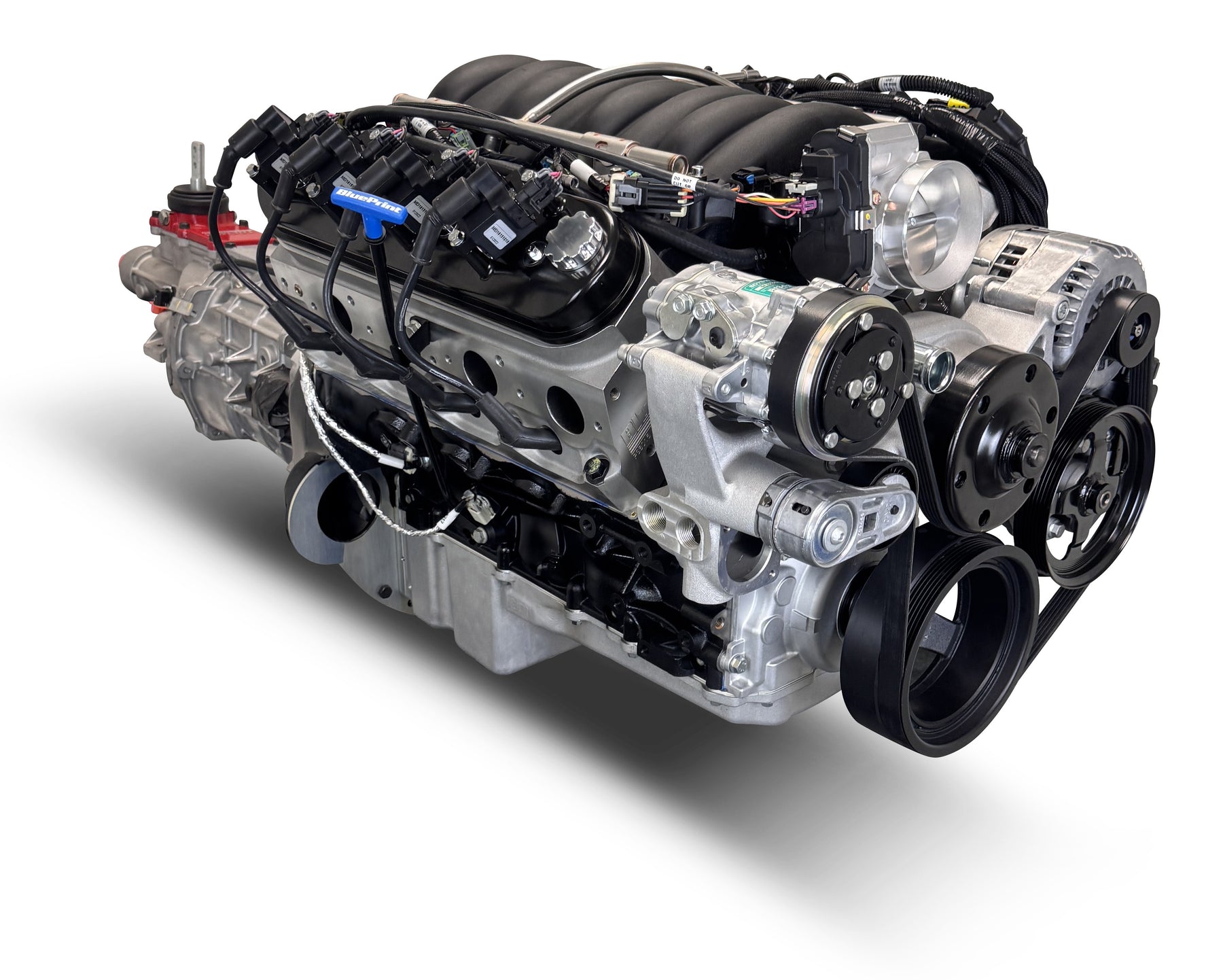

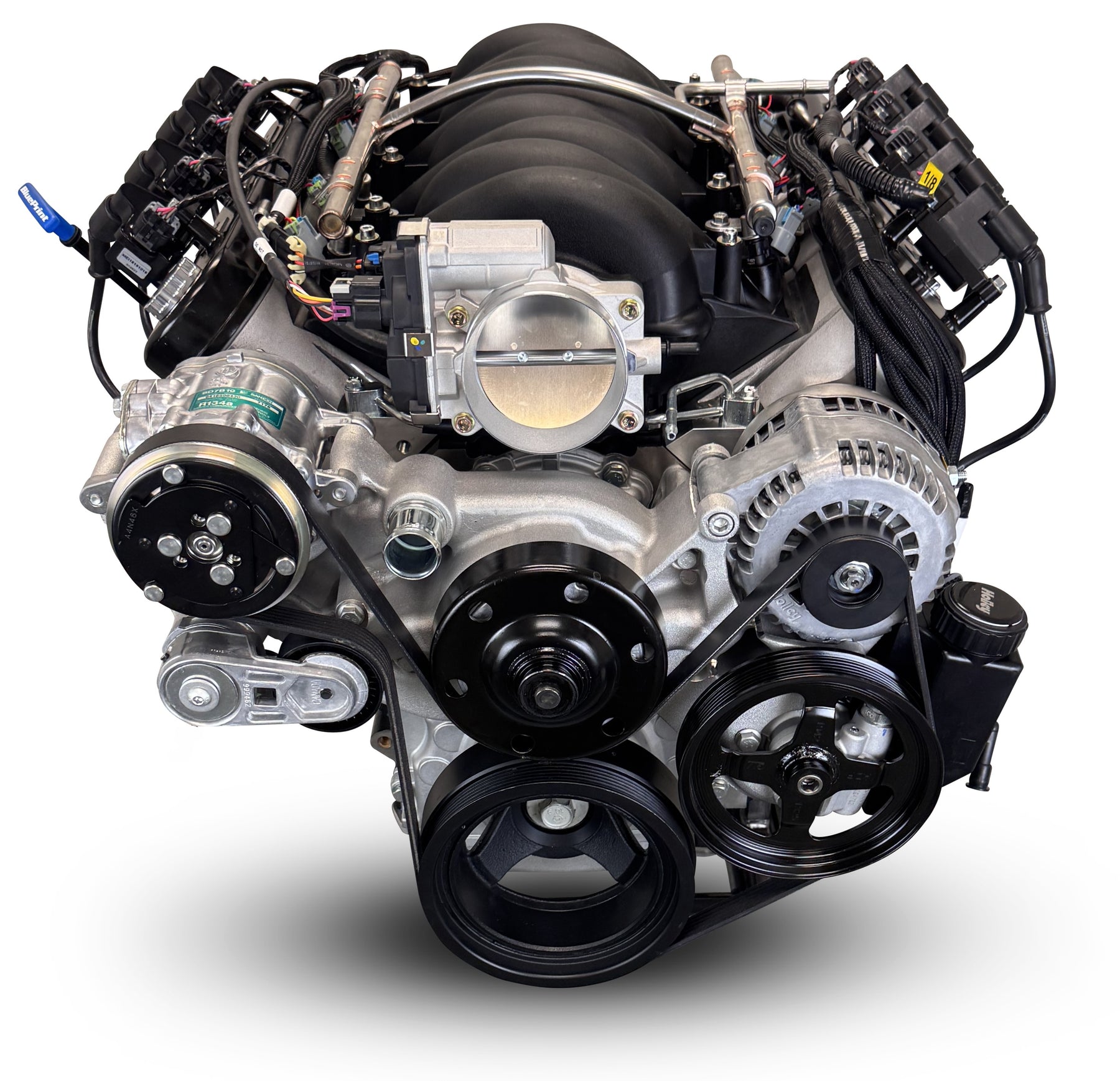

*This engine is pictured with an Aluminum Block will come with a Cast Iron Block and Holley Front Drive Pulley Kit.

Description:

  • Horsepower & Torque: 625 Horsepower / 565 ft. lbs. Torque
  • Compression Ratio: 11:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • New Forged Crankshaft
  • 4.125" Stroke
  • Forged 6.125" Connecting Rods
  • Forged Pistons
  • Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 72cc Chamber
  • 2.165" Intake - 1.600" Exhaust Valves
  • 259cc Intake - 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .624 Intake - .624 Exhaust Lift
  • 239 Intake - 255 Exhaust Duration
  • @.050-114 Degree Lobe Separation

Ignition Timing:

  • ECM Supplied with Calibration

Also Includes:

  • Drive by Wire Throttle Body
  • LS3 Intake Manifold
  • 42# Injectors and Return-less Fuel Rail
  • Harmonic Balancer
  • Valve Covers
  • Retro Fit Oil Pan
  • Timing Cover
  • Coil Packs
  • All Sensors Required for Engine to Run
  • Spark Plug Wires & Wiring Harness
  • Gas Pedal
  • Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor

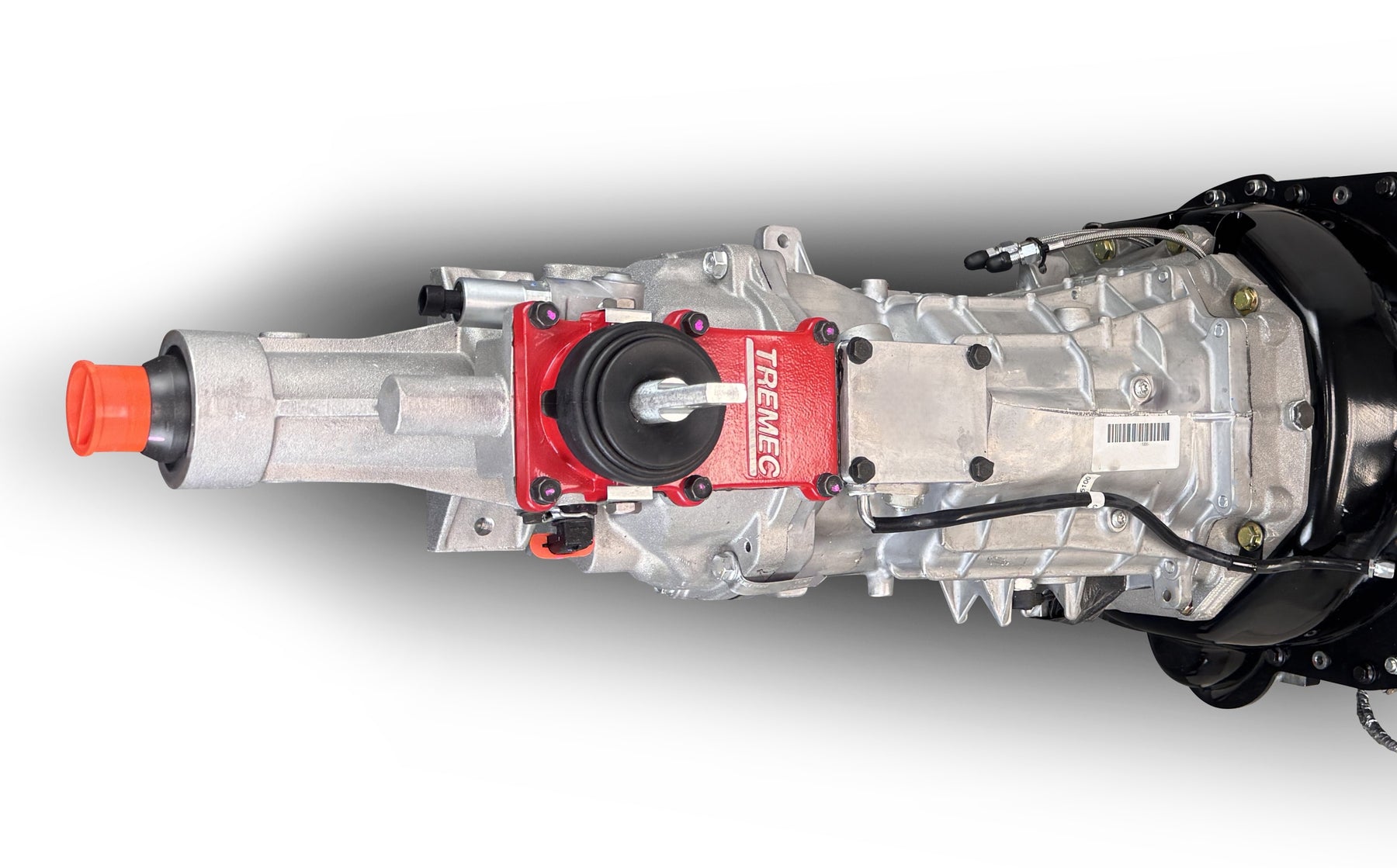

Assembled with Complete T56 Six Speed Transmission Package:

Includes the following:

  • McLeod Super Steel Pro Dual Disk Clutch
  • Steel Bell Housing
  • Billet Flywheel
  • Engine Guard
  • Starter
    • First Gear Ration: 2.66:1
    • Second Gear Ratio: 1.78:1
    • Third Gear Ration: 1.30:1
    • Fourth Gear Ration: 1.00:1
    • Fifth Gear Ration: 0.80:1
    • Sixth Gear Ration: 0.63:1

Notes:

  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
    Not for use in pollution-controlled vehicles or in dry sump applications.
  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
  • Engine/Trans Package Ships assembled


Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BLS4273KT56

Fuel Delivery Type: Electronic Fuel Injected

Spark Plug: AC Delco 41-985

Spark Plug Gap: .040"

Harmonic Balancer: Non-Weighted

Flexplate/Flywheel: Non-Weighted

Stall Converter: 2200+

Intake Manifold: LS3 Car

Fuel Recommendation: 91- 93 Octane

Timing (Initial/Total Advance): Ignition timing and spark advance are controlled by Powertrain Control Module

Firing Order: 1,8,7,2,6,5,4,3

Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710, Not for EGR Universal fit oil pan, drive by wire throttle body and matching throttle pedal. Also includes sensors, coil packs and wiring harness, and a new ECM with our custom tune installe

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.
