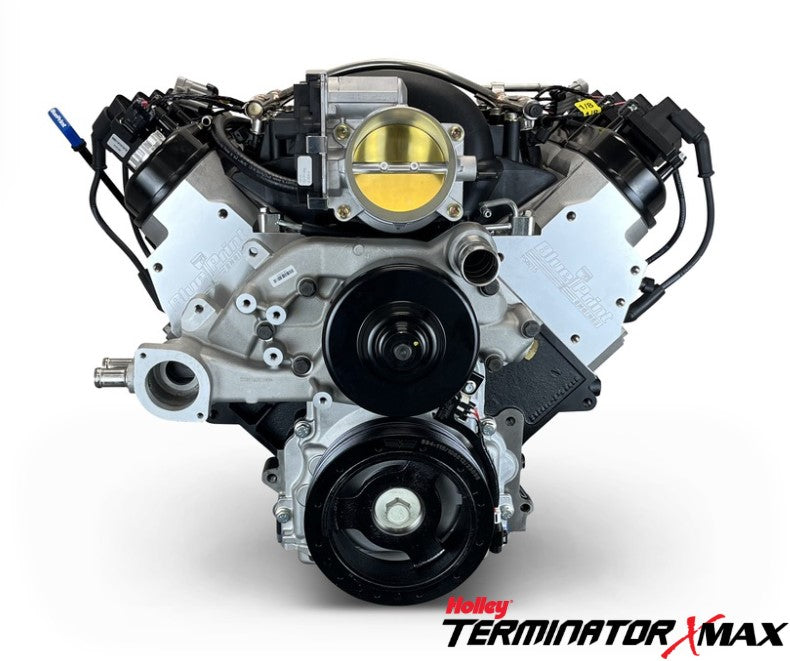

GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI
GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI
GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI
GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI

GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI

SKU: BLS4273TKX

GM LS Compatible 427 c.i. Engine and TKX Manual Transmission - 605 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI

SKU: BLS4273TKX

Horsepower & Torque: 605 Horsepower / 565 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 – 114 LSA

Pistons: Forged

Crankshaft: Forged Crank – 4.125" Stroke and Forged 6.125" Rods

Fuel Injection: Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System

/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 605 Horsepower / 565 FT LBS
  • Compression Ratio: 11:1
  • BluePrint Engines LS3 Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron (LSX Style) Block
  • Increased Deck Thickness and Strength Webbing
  • Utilizes OEM LS3 Front and Rear Covers
  • Improved Water Jacket Design
  • Extended Cylinder Skirt
  • 1-Piece Rear Main Seal
  • Priority Main Oiling
  • 4.0665" Bore
  • 6-Bolt Main

Rotating Assembly:

  • Forged Crankshaft
  • 4.125" Stroke
  • Forged 6.125" Connecting Rods
  • Forged Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 70cc Chamber
  • 2.165" Intake / 1.600" Exhaust Valves
  • 259cc Intake / 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .624 Intake / .624 Exhaust Lift
  • 239 Intake / 255 Exhaust Duration
  • @.050-114 Degree Lobe Separation

Ignition Timing:

  • ECM supplied with calibration

Holley Terminator X Max Specific Features and Benefits:

  • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
  • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
  • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
  • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
  • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
  • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
  • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
  • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Also Includes:

  • LS Swap Oil Pan - Windage Tray - Pick Up Screen
  • BluePrint Engines Fuel Injectors and Rail
  • DBW Throttle Body - BPP12191019
  • Water Pump - BPPLS126WP
  • Throttle Pedal, and Sensors
  • GM Plastic Intake Manifold
  • Spark Plugs & Wires
  • Harmonic Balancer
  • Coil Packs

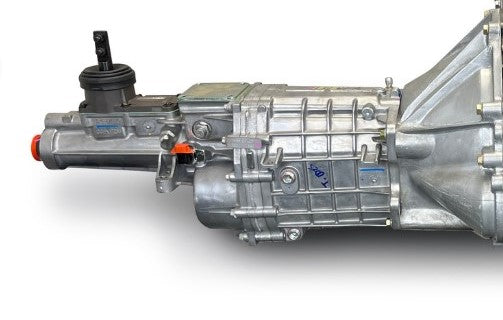

Assembled with Complete TKX Transmission Package:

  • Mcleod Super Street Pro Twin Disc Clutch
  • Hydraulic Throw Out Bearing
  • Bell Housing
  • Billet Flywheel
  • Starter
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Fourth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.68:1

Notes:

  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
    Not for use in pollution-controlled vehicles or in dry sump applications.
  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
  • Engine/Trans Package Ships assembled


Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BLS427KTKX

Fuel Delivery Type: Electronic Fuel Injected

Spark Plug: CCH9405

Spark Plug Gap: .040"

Harmonic Balancer: Non-Weighted

Flexplate/Flywheel: Non-Weighted

Stall Converter: 2200+

Intake Manifold: LS3 Car

Fuel Recommendation: 91- 93 Octane

Timing (Initial/Total Advance): Ignition timing and spark advance are controlled by Powertrain Control Module

Firing Order: 1,8,7,2,6,5,4,3

Recommended Oil Filter: BPPB160

Recommended Break in Oil: BPP710

Recommended Oil: BPP10W30

Notes: Not for EGR Universal fit oil pan, drive by wire throttle body and matching throttle pedal. Also includes sensors, coil packs and wiring harness, and a new ECM with our custom tune installed
