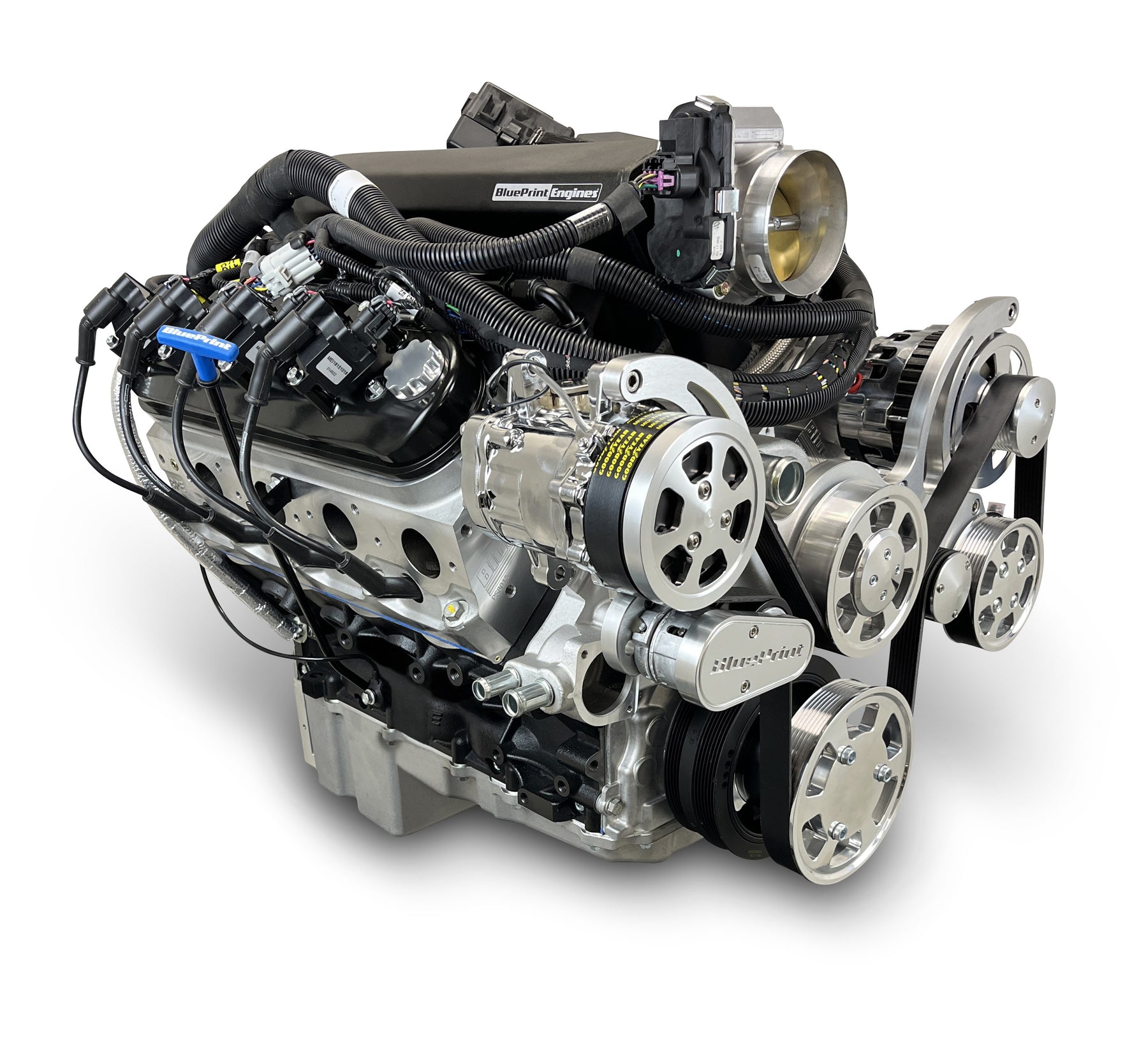

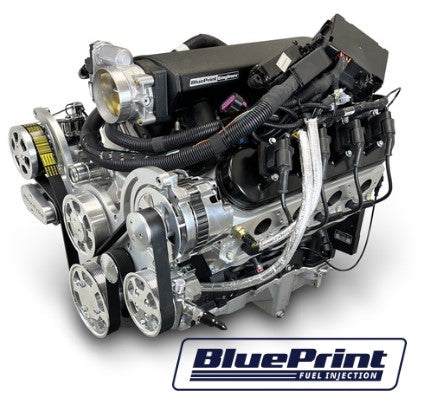

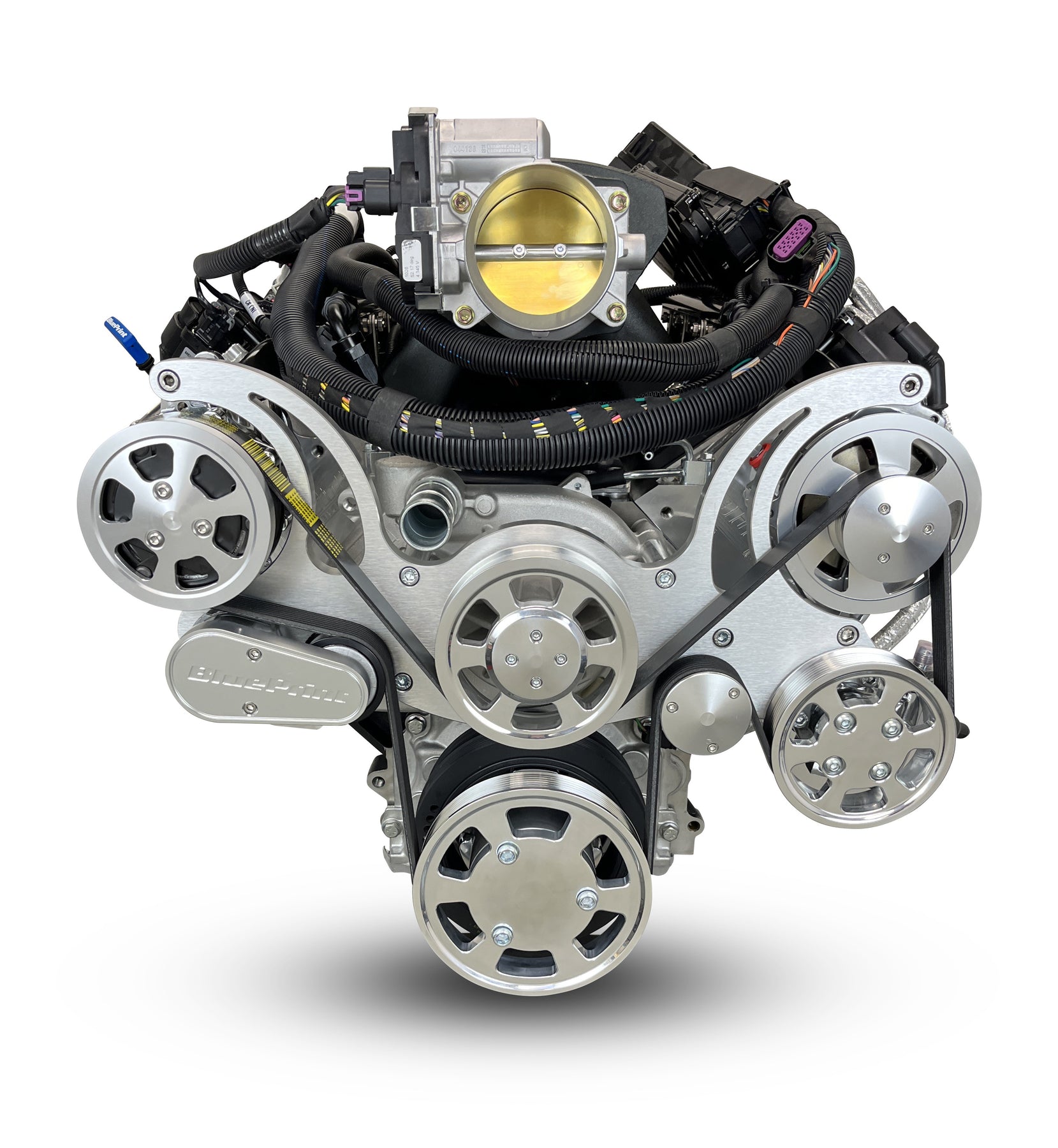

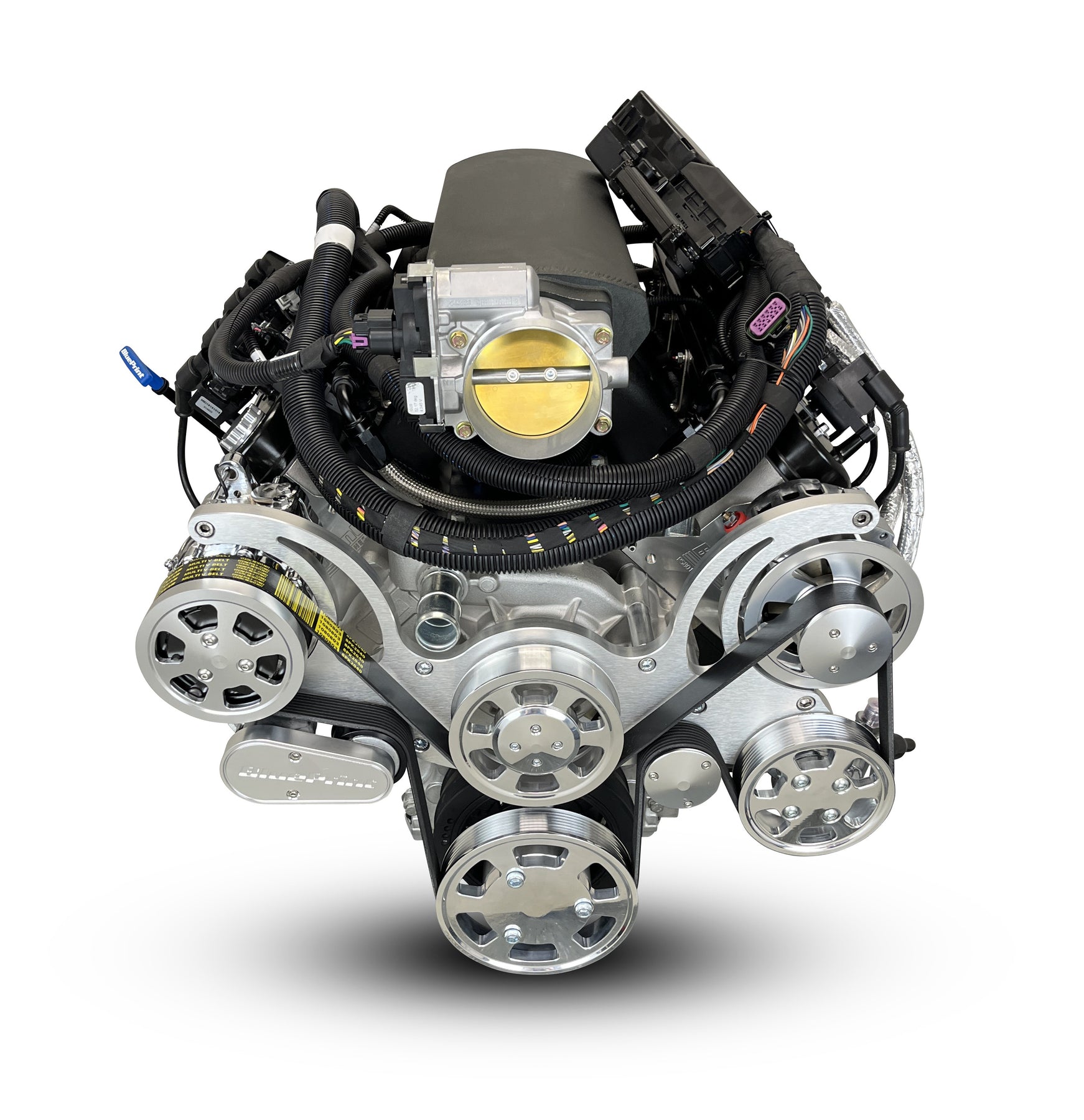

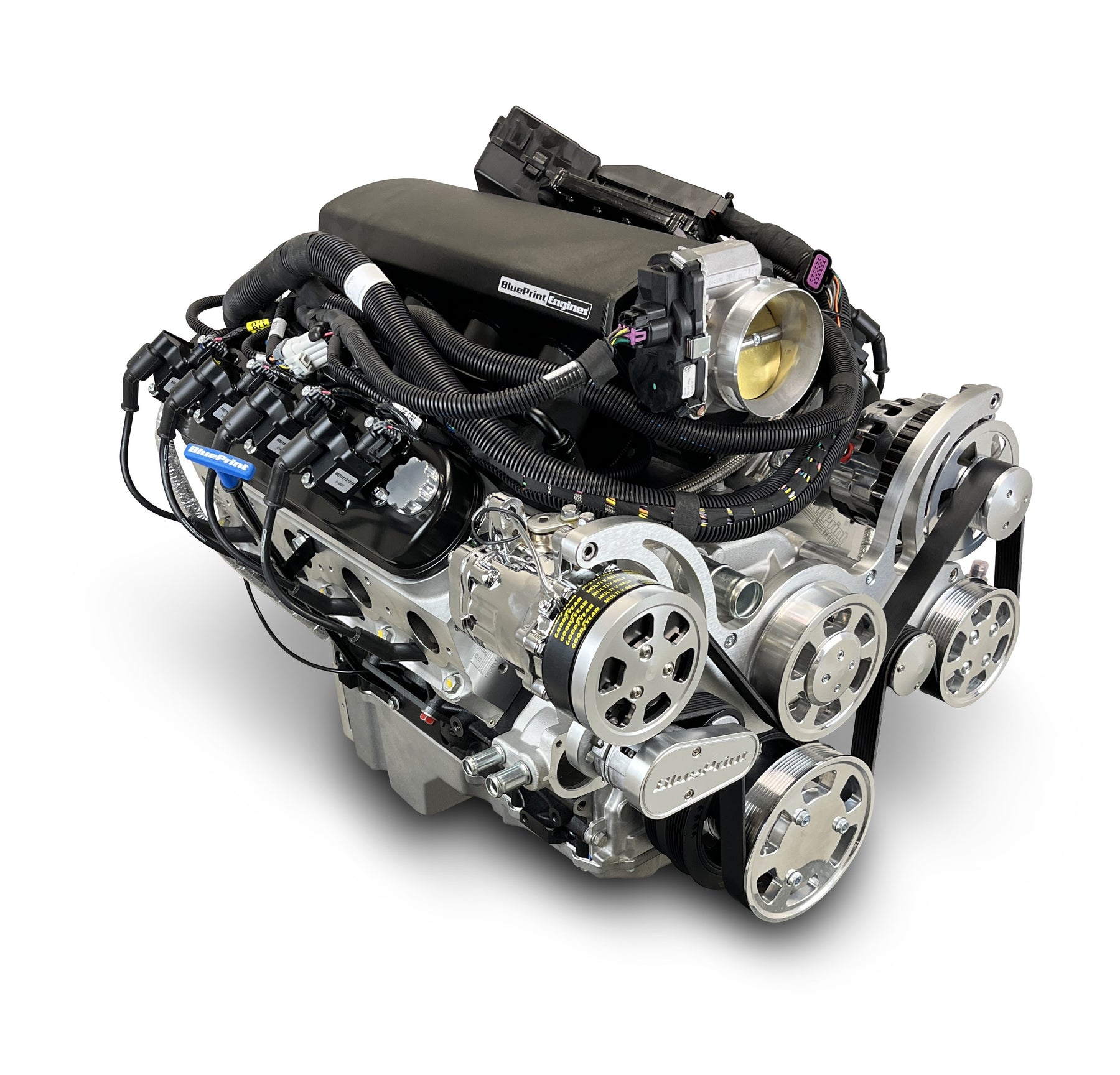

GM LS Compatible 376 c.i. ProSeries Engine - 525 HP - Deluxe Dressed with Engine Controller and Polished Pulley Kit - Fuel Injected

SKU: PSLS3765CTFK

GM LS Compatible 376 c.i. ProSeries Engine - 525 HP - Deluxe Dressed with Engine Controller and Polished Pulley Kit - Fuel Injected

SKU: PSLS3765CTFK

Horsepower & Torque: 525 Horsepower / 460 FT. LBS. Torque

Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads

Compression Ratio: 10.7:1

Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust Lift and 225 Intake / 238 Exhaust Duration @ .050 - 113° LSA - Three Bolt Cam

Pistons: Hypereutectic

Crankshaft: Nodular Iron Crank - 3.622" Stroke and 6.125" Rods

/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 525 Horsepower / 460 FT LBS
  • Compression Ratio: 10.7:1
  • BluePrint LS3 Aluminum Heads
  • Hydraulic Roller Cam

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 4.0622" Bore
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • Nodular Iron Crankshaft
  • 3.622" Stroke
  • 6.098" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint LS3 Aluminum Cylinder Heads - PS8015
  • 69cc Chamber
  • 2.165" Intake / 1.590" Exhaust Valves
  • 259cc Intake / 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .612 Intake / .585 Exhaust Lift
  • 225 Intake / 238 Exhaust Duration
  • @.050-113 Degree Lobe Separation

Ignition Timing:

  • Ignition Timing and Spark Advance are Controlled by BluePrint Engine Calibrated ECU
  • Transmission Controller Required (ECU Does Not Offer Transmission Control)

Also Includes:

  • Valve Covers
  • LS Swap Oil Pan
  • Timing Cover
  • Drive by Wire Throttle Body
  • Complete Engine Harness and ECU Kit
  • LS3 Fabricated Aluminum Intake Manifold
  • Injectors and Fuel Rail Kit
  • Coil Packs
  • Spark Plugs and Wires
  • Wiring Harness
  • Water Pump
  • Harmonic Balancer
  • Throttle Pedal
  • Front Accessory Drive with Water Pump, Alternator, Power Steering Pump, and A/C Compressor

Notes:

  • This engine requires a non-weighted flex plate/flywheel.
  • Recommended fuel: 91 Octane.
  • BluePrint Engines recommends a 2200+ RPM stall converter.
  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
  • Not for use in pollution-controlled vehicles or in dry sump applications.
  • The Included BluePrint Engines LS controller package contains a fully tested, calibrated, locked ECU, optimized for this specific engine. This package has undergone extensive testing for performance, reliability and the safety of you and your engine.


Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: PSLS3765CTFK

Fuel Delivery Type: Electronic Fuel Injection

Spark Plug: Champion 3015

Spark Plug Gap: .040"

Harmonic Balancer: Non Weighted

Flexplate/Flywheel: Non Weighted

Stall Converter: 2200+

Intake Manifold: GM LS3 Fabricated Aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Controlled by BluePrint Engines ECU

Firing Order: 1,8,7,2,6,5,4,3

Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
