SKU: BLS4279SCTKT56

GM LS Compatible 427 c.i. Pro Series Engine and T56 Manual Transmission - 830 Horsepower -Standard Edition Builder Series - Natural Pulley Kit - Holley Terminator X EFI System

SKU: BLS4279SCTKT56

Horsepower & Torque: 830 Horsepower / 800 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.5:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 – 114° LSA

Pistons: Forged

Crankshaft: Forged Crank – 4.125" Stroke and Forged 6.125" Rods

Supercharger: Magnuson TVS2650

Fuel Recommendation: 91+ Octane

Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System

/
  • Secure payments
  • Financing available at checkout with Affirm

Overview:

BluePrint Engines brings modern muscle to the forefront with this 830-horsepower LS 427 Builder Series package paired to the rock-solid T56 manual transmission. Designed for drivers who want brutal power with everyday reliability, this setup features Holley’s Terminator X EFI system for dead-on fuel control, crisp throttle response, and easy tuning. The engine is built with premium internals, meticulous machining, and pro-series durability to handle hard launches, high rpm, and anything else you can throw at it. Finished with a clean natural pulley kit for a purposeful, performance-first look, this 427/T56 combo is the ultimate turnkey LS solution for serious street or strip builds.

Description:

  • Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
  • Compression Ratio: 9.5:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • New Forged Crankshaft
  • 4.125" Stroke
  • Forged 6.125" Connecting Rods
  • Forged Pistons
  • Front and Real Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 70cc Chamber
  • 2.165" Intake / 1.590" Exhaust Valves
  • 259cc Intake / 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .624 Intake / .624 Exhaust Lift
  • 239 Intake / 255 Exhaust Duration
  • @.050-114 Degree Lobe Separation

Ignition Timing:

  • ECM Supplied with Calibration

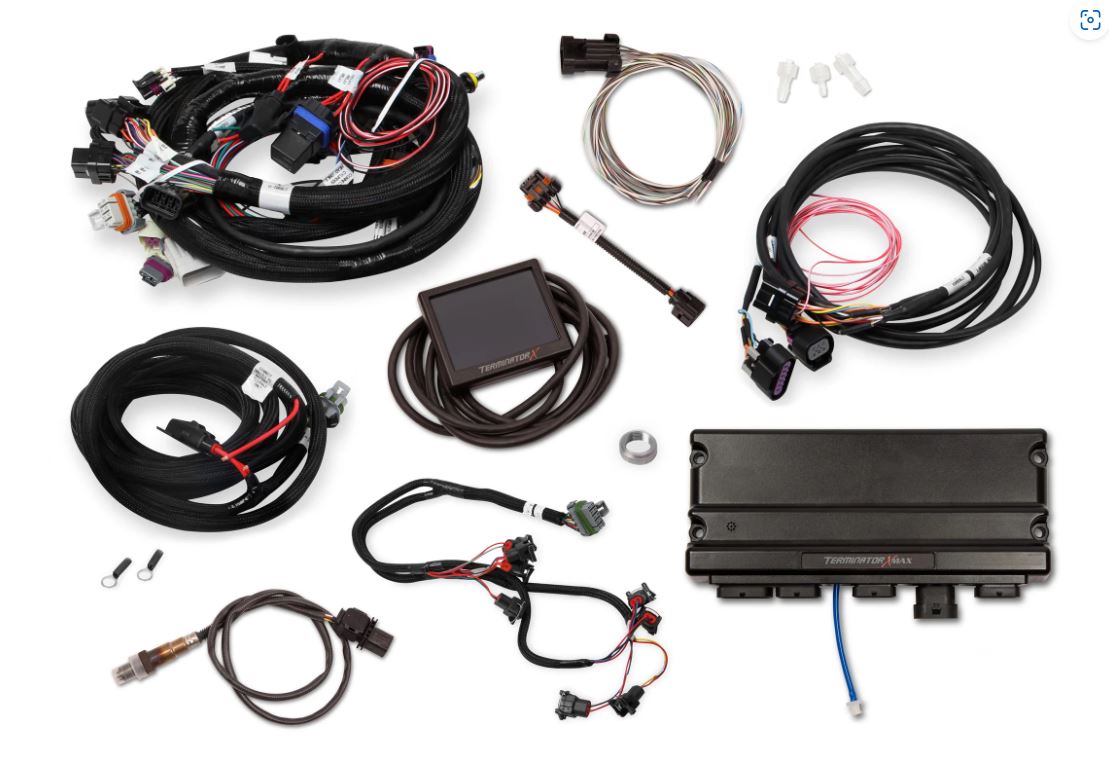

Holley Terminator X Max Specific Features and Benefits:

  • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
  • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
  • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
  • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
  • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
  • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
  • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
  • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

  • 2.3L Magnuson TVS Super Charger
  • Upgraded Motor tron S107 Injectors
  • Electronic Fuel Injection
  • Coil Packs
  • Valve Covers
  • Oil Pan
  • Drive by Wire Throttle Body
  • Timing Cover
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Natural Front Accessory Drive
    • LT1 Style 150-amp Alternator
    • LT1 Style Water Pump
    • Type II Power Steering Pump
    • Compact Style A/C Compressor

Assembled with Complete T56 Six Speed Transmission Package:

       Includes the following:

  • McLeod Super Steel Pro Dual Disk Clutch
  • Steel Bell Housing
  • Billet Flywheel
  • Engine Guard
  • Starter
    • First Gear Ration: 2.66:1
    • Second Gear Ratio: 1.78:1
    • Third Gear Ration: 1.30:1
    • Fourth Gear Ration: 1.00:1
    • Fifth Gear Ration: 0.80:1
    • Sixth Gear Ration: 0.63:1

Notes:

  • This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
    Not for use in pollution-controlled vehicles or in dry sump applications.

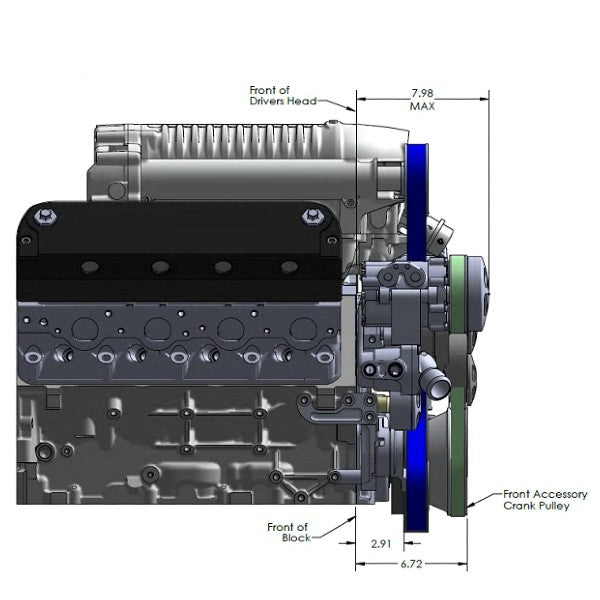

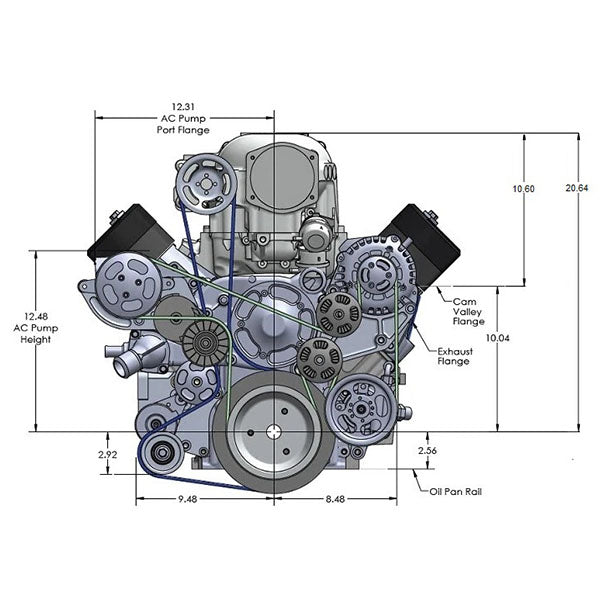

  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
  • Engine/Trans Package Ships assembled

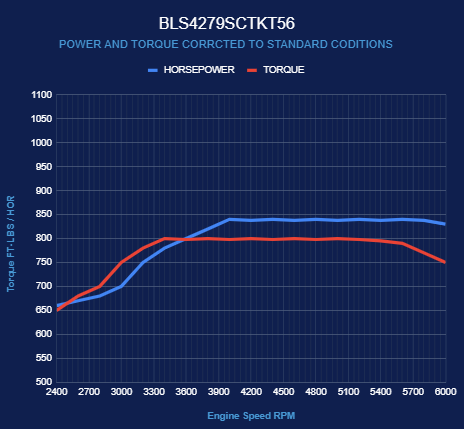

    Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet

    Part Number: BLS4279SCTKT56

    Fuel Delivery Type: Supercharged

    Spark Plug: AC Delco 41-985

    Spark Plug Gap: .040"

    Harmonic Balancer: Non-Weighted

    Flexplate/Flywheel: Non-Weighted

    Stall Converter: 3200+

    Intake Manifold: Magnuson TVS2650

    Fuel Recommendation: 91+ Octane

    Timing (Initial/Total Advance): Ignition timing and spark advance are controlled by Powertrain Control Module

    Firing Order: 1,8,7,2,6,5,4,3

    Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710, Not for EGR Universal fit oil pan, drive by wire throttle body and matching throttle pedal. Also includes sensors, coil packs and wiring harness, and a new ECM with our custom tune installed
