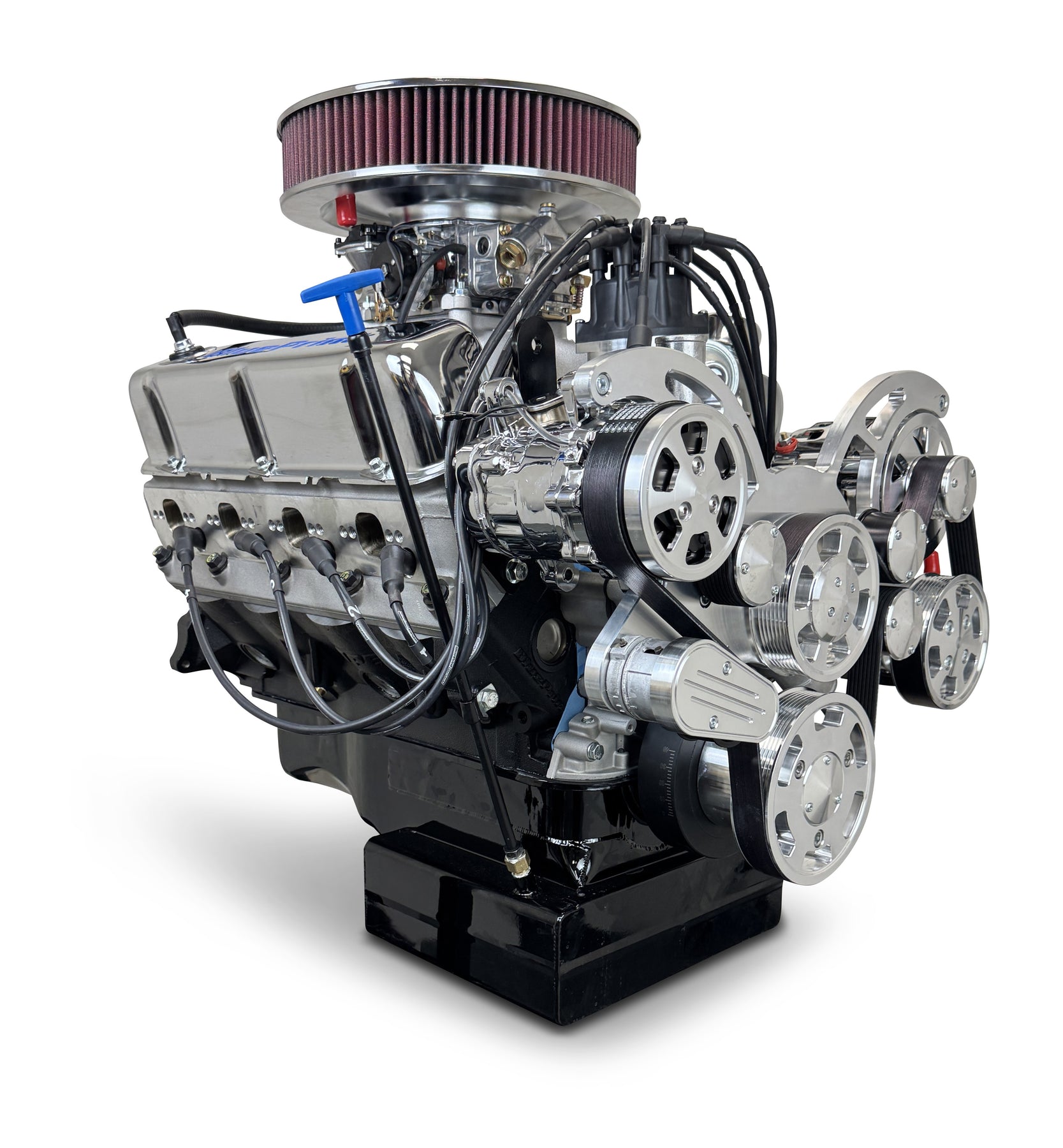

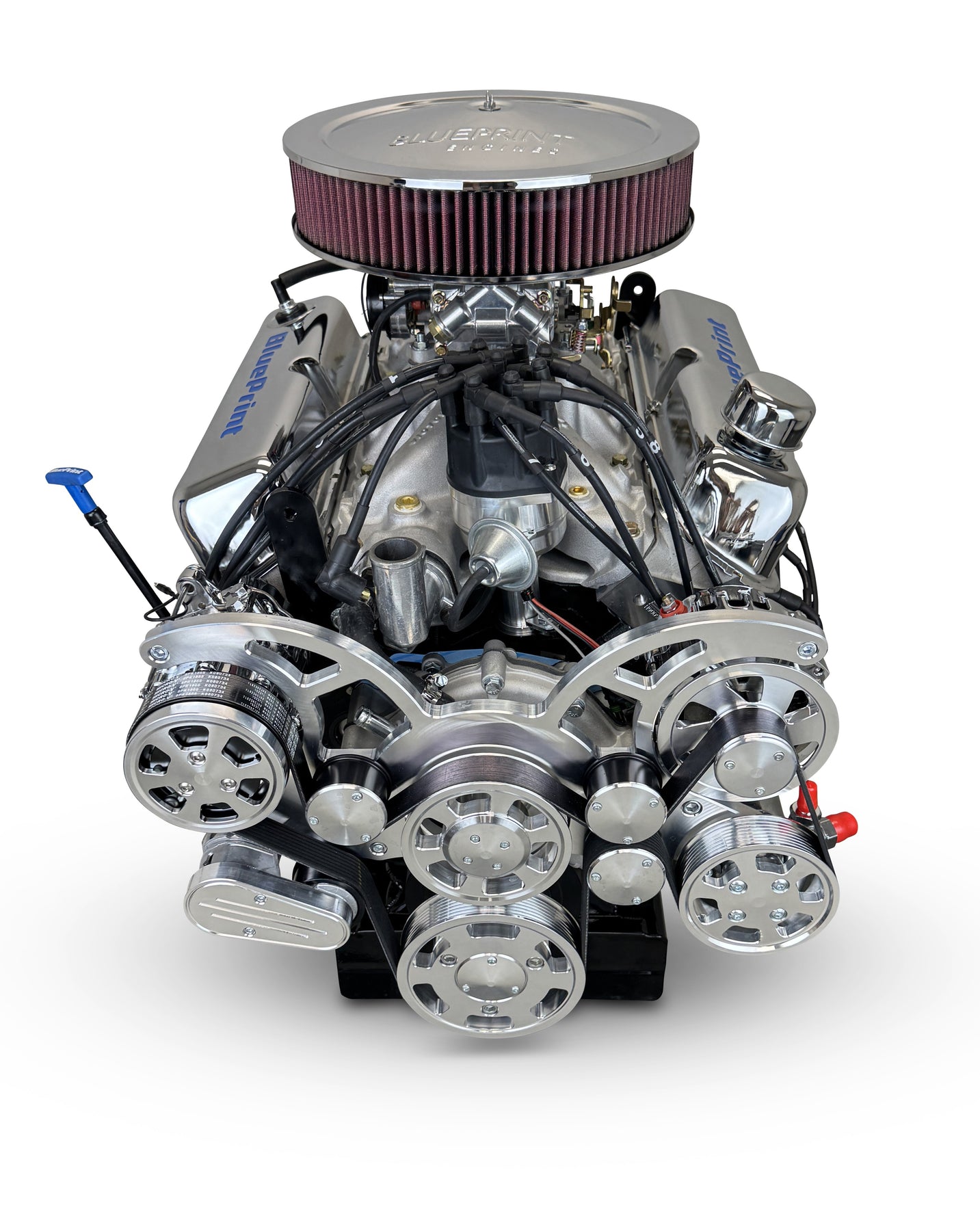

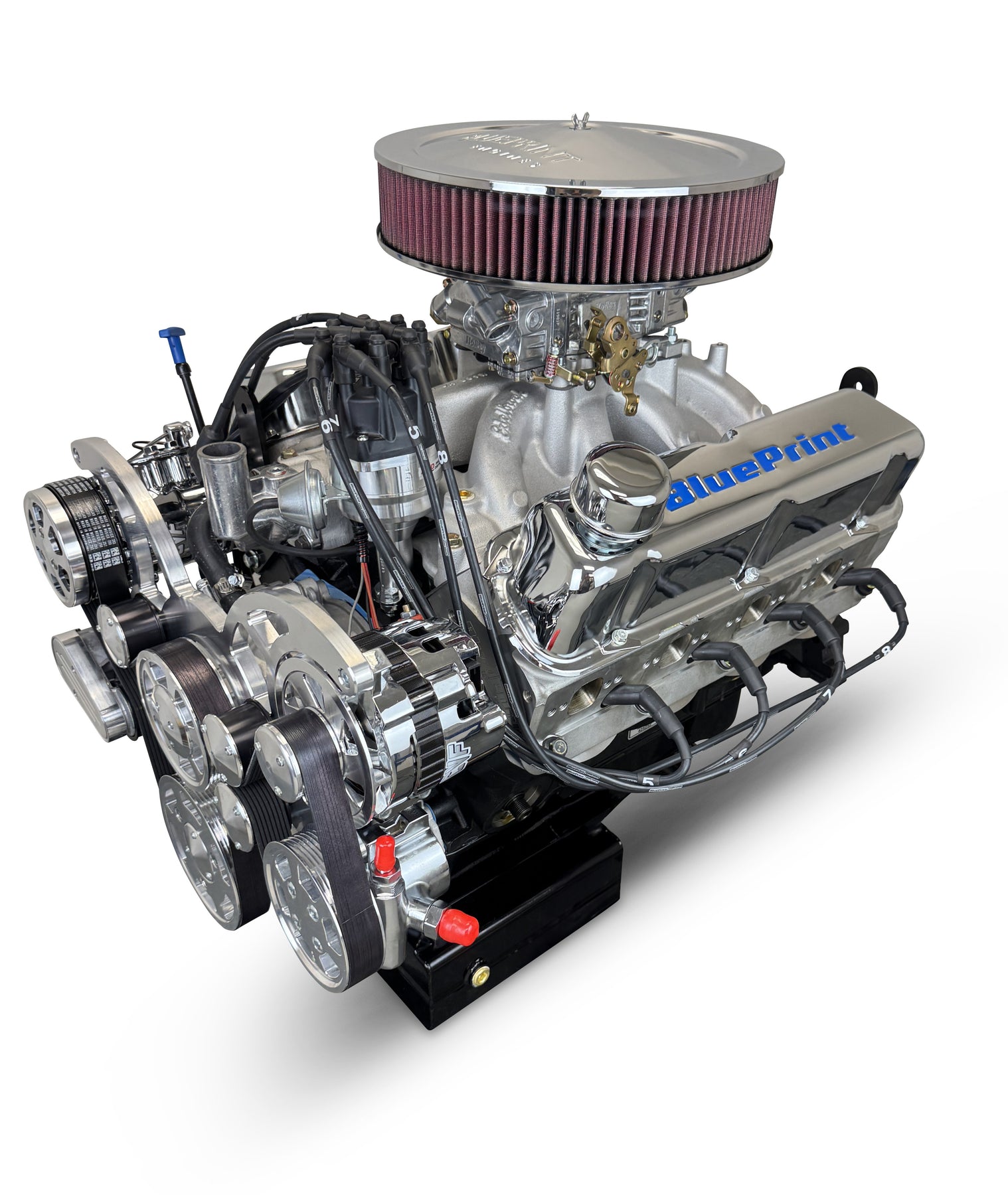

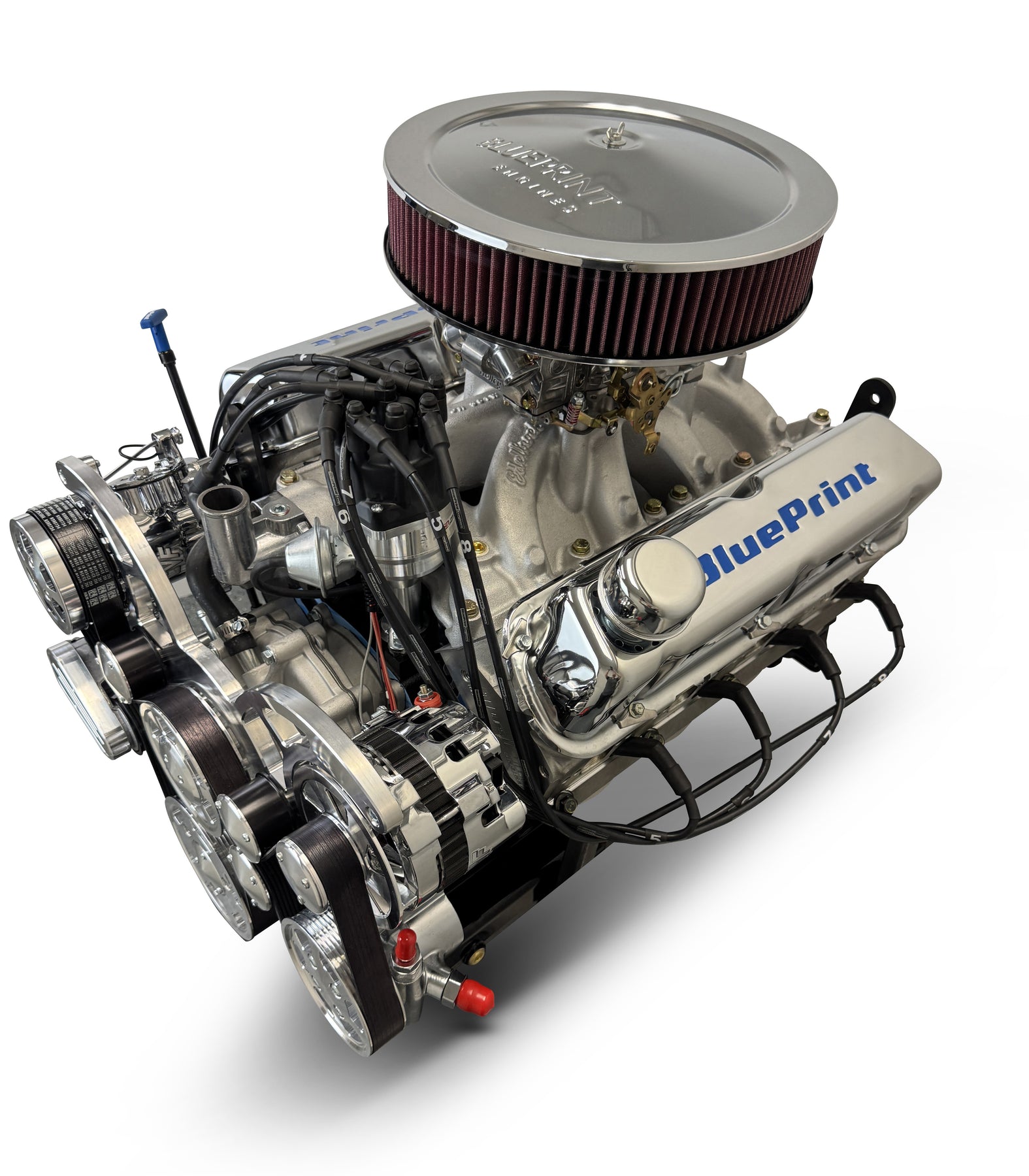

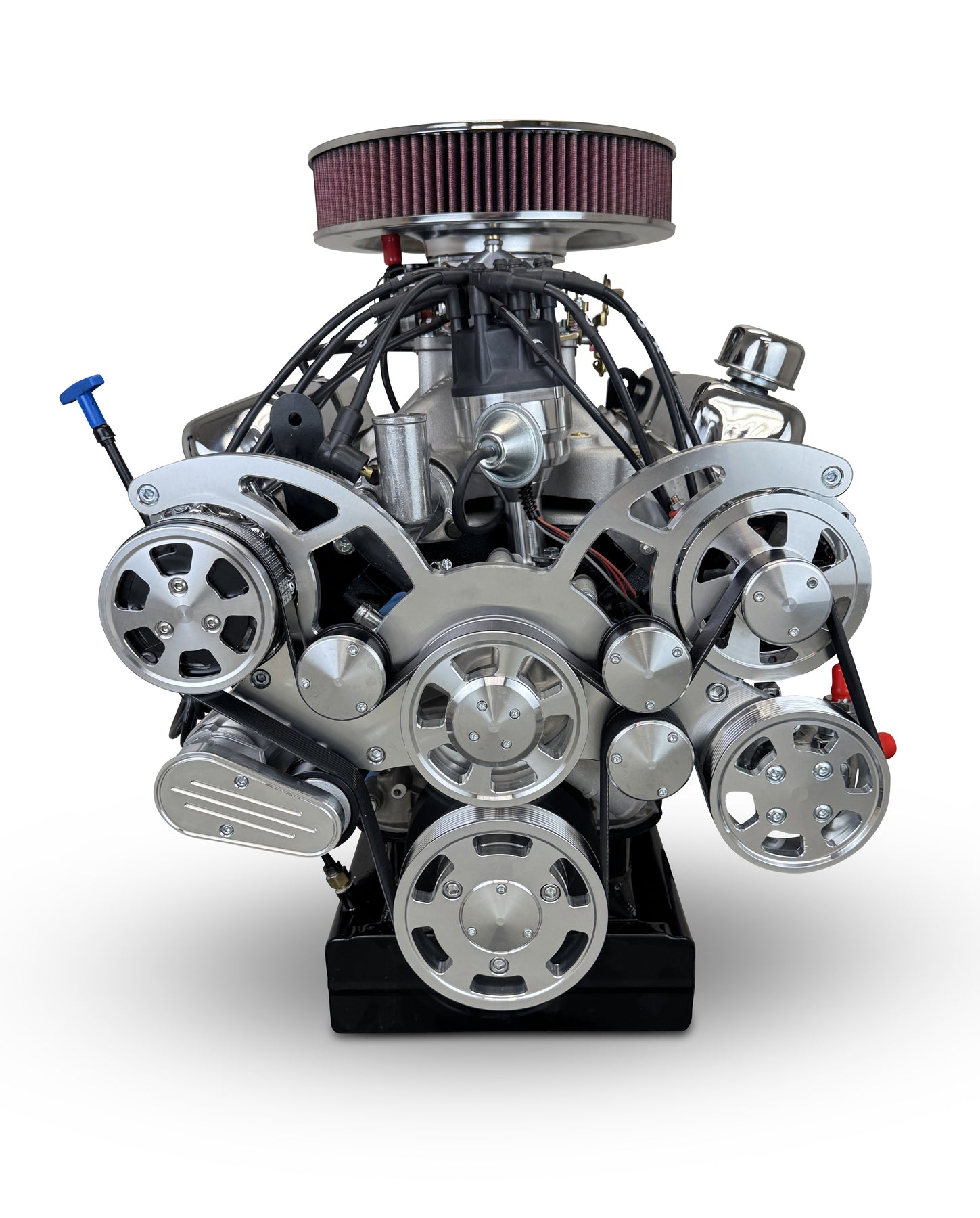

Name: Ford Small Block Compatible 427 c.i. Pro Series Engine - 541 Horsepower - Deluxe Dressed - Polished Pulley Kit- Front Sump -Carbureted
Brand: Blueprint Engines
SKU: PSF4271CTCK
Price: 17599.0 USD
Availability: InStock

Ford Small Block Compatible 427 c.i. Pro Series Engine - 541 Horsepower - Deluxe Dressed - Polished Pulley Kit- Front Sump -Carbureted

Horsepower & Torque: 541 Horsepower / 519 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .608 Intake / .608 Exhaust and 248 Intake / 258 Exhaust Duration @ .050 – 114 LSA

Pistons: Forged

Crankshaft: Forged Crank - 4.000" Stroke and Forged 6.250" Rods

Fuel Recommendation: 91+ Octane

Price

Secure payments

Financing available at checkout with Affirm

Ford Small Block Compatible 427 c.i. Pro Series Engine - 541 Horsepower - Deluxe Dressed - Polished Pulley Kit- Front Sump -Carbureted

PSF4271CTCK

Description:

Horsepower & Torque: 541 Horsepower / 519 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

Block:

NEW BluePrint Engines' High Strength Cast Iron Block
4-Bolt Main
4.125" Bore
1-Piece Rear Main Seal

Rotating Assembly:

New Forged Crankshaft
4.000" Stroke
Forged 6.2" Connecting Rods
Forged Pistons
Internal Engine Balance

Cylinder Heads:

Aluminum Cylinder Heads
2.08" Intake/1.60" Exhaust Valves
205cc Intake/70cc Exhaust Runners

Cam Specs:

Cam Type: Roller
.608 Intake .608 Exhaust
248 Intake / 258 Exhaust duration
@ .050 - 114-degree lobe separation

Also Includes:

870cfm Carburetor
Single Plane Intake Manifold
Pro Series Distributor
Valve Covers, Oil Pan and Timing Cover
Harmonic Balancer
Spark Plugs
Polished Front Accessory Drive - BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor

Notes:

The Front Accessory Drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: PSF4271CTCK

Fuel Delivery Type: Carbureted, 850cfm

Spark Plug: BPP7938 NGK 7938 BKR5E

Spark Plug Gap: .035"

Harmonic Balancer: Non-Weighted

Flexplate/Flywheel: Non-Weighted

Stall Converter: 2200+

Intake Manifold: Single plane, satin aluminum

Fuel Recommendation: 91+ Octane Approved

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,3,7,2,6,5,4,8

Recommended Break in Oil: BPP710 (Click Here)

Recommended Service Oil: BPP10W30 (Click Here)

Recommended Oil Filter: BPP21085 or BPP51515 (Click Here)

Header Partners:
HUSLER: 770-664-8880
Sanderson: 650-583-4590
Lemons: 805-239-8998

Click here for more Header Info.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
