Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

SKU: B302K4R7

Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

SKU: B302K4R7

Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.5:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .544 Exhaust and 215 Intake / 228 Exhaust Duration @ .050 - 112 LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank - 3.000" Stroke and OEM Type 5.090" Rods

Fuel Recommendation: 87+ Octane

Regular price $18,499.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
  • Compression Ratio: 9.5:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Hypereutectic Pistons
  • BluePrint Engines Cast Crank

Block:

  • BluePrint Engines High-Strength cast Iron Block
  • Increased Deck Thickness & Strength Webbing
  • Improved Water Jacket Design
  • 1-Piece Rear Main Seal
  • Priority Main Oiling
  • 4.000" Bore
  • 4-Bolt Main

Rotating Assembly:

  • Ford, Machined and Balanced by BluePrint Engines
  • 3.000" Stroke
  • OEM Type 5.090” Connecting Rods
  • Hypereutectic Pistons
  • 50oz External Balance Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP9009
  • 60cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 190cc Intake / 60cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .543 Intake / .554 Exhaust Lift
  • 218 Intake / 226 Exhaust Duration
  • @.050-112 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Holley 600 CFM Street Warrior Carburetor - BPP080457SA
  • Thermostat and Thermostat Housing
  • Dual Plane Intake Manifold - BPP302INT
  • MSD Pro Billet Distributor - BPP3023BK
  • Harmonic Balancer - BPP50
  • Ignition Coil - BPP82021BK
  • Spark Plugs and Wires
  • Fuel Pump - BPP6588
  • Painted Oil Pan
  • Valve Covers
  • Air Cleaner
  • Dipstick

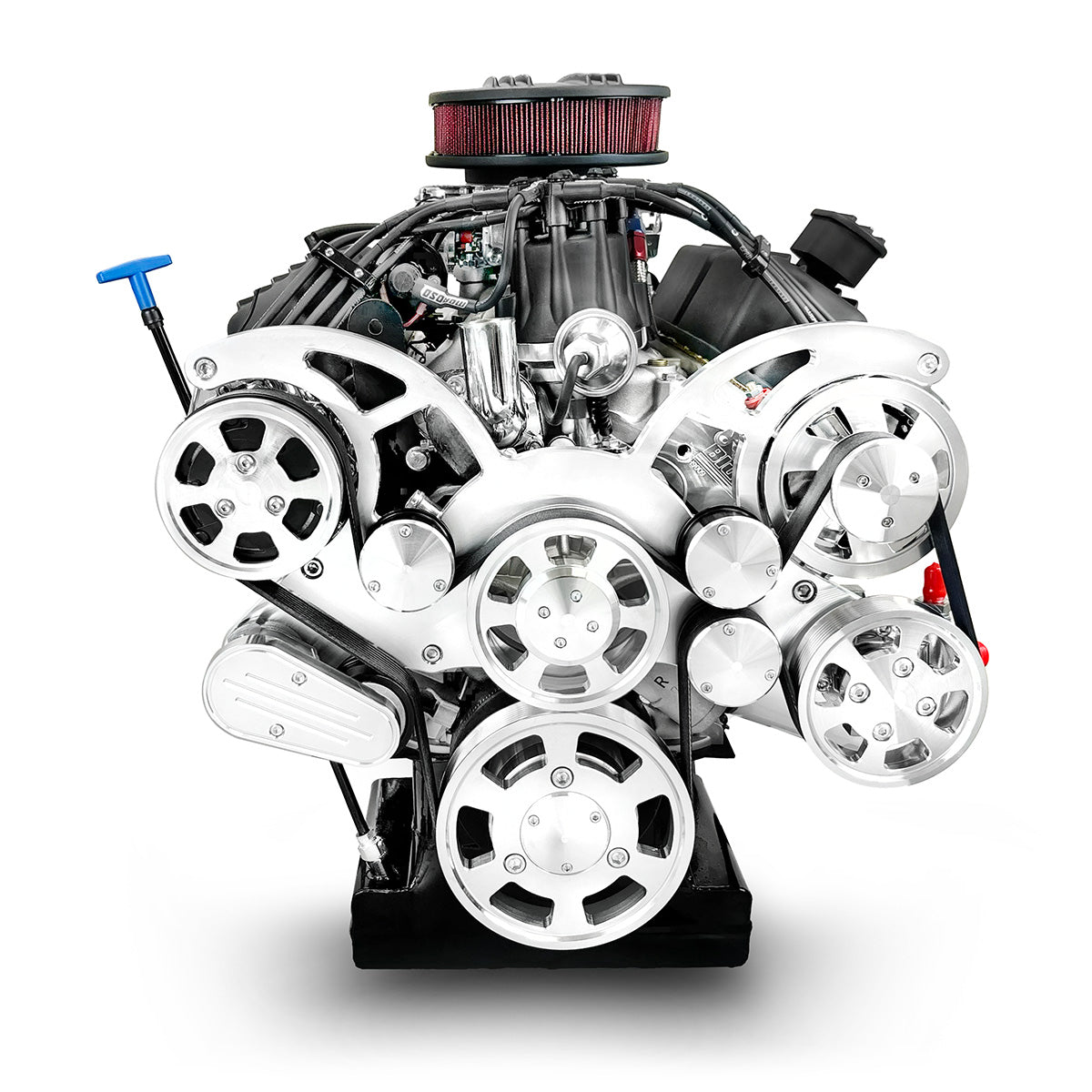

  • Polished Front Accessory Drive - BPP302FDACPS4
    • Driver Side Standard Rotation Water Pump
    • Type II Power Steering Pump
    • Remote Power Steering Pump Reservoir
    • 140amp 1-wire Alternator
    • 7B10 Peanut Air Conditioning Compressor

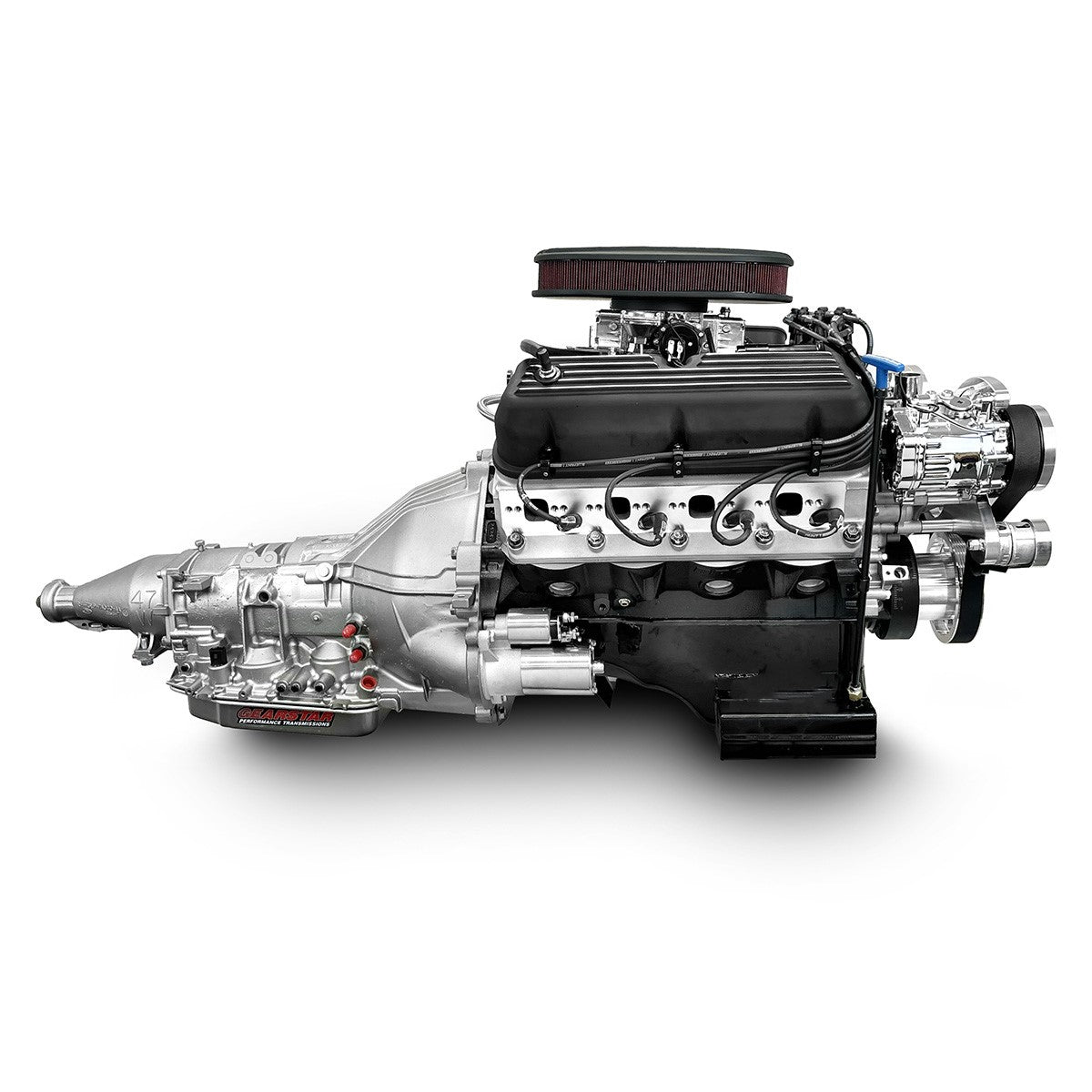

Assembled with Complete 4R70W Automatic Transmission Package:

  • Includes Electronic Transmission Controller
  • Transmission Built to 650 Horsepower
  • 2200-2600 Stall Torque Converter
  • Flex Plate
  • Starter
  • 4 Speed, Overdrive Transmission w/ Lockup
  • GEAR RATIOS
    • First: 2.84 :1.
    • Second: 1.55 :1.
    • Third: 1.00 :1.
    • Overdrive: 0.70 :1.
    • Reverse: 2.32 :1.

Notes:

  • Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
  • Not for use in pollution-controlled vehicles.
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Does not include TPS, as varies with carb or EFI type.

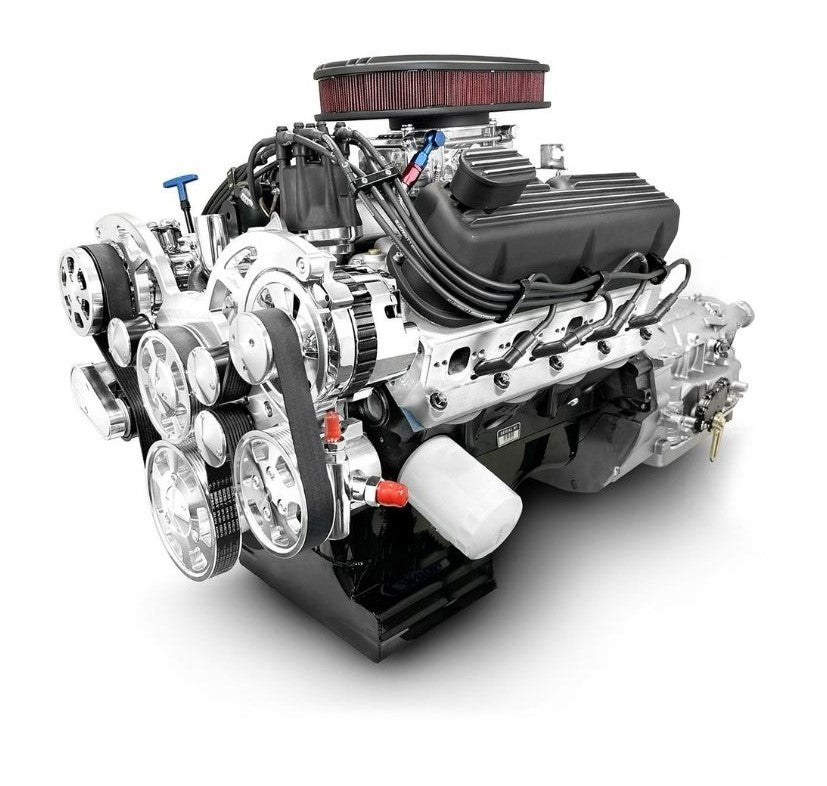

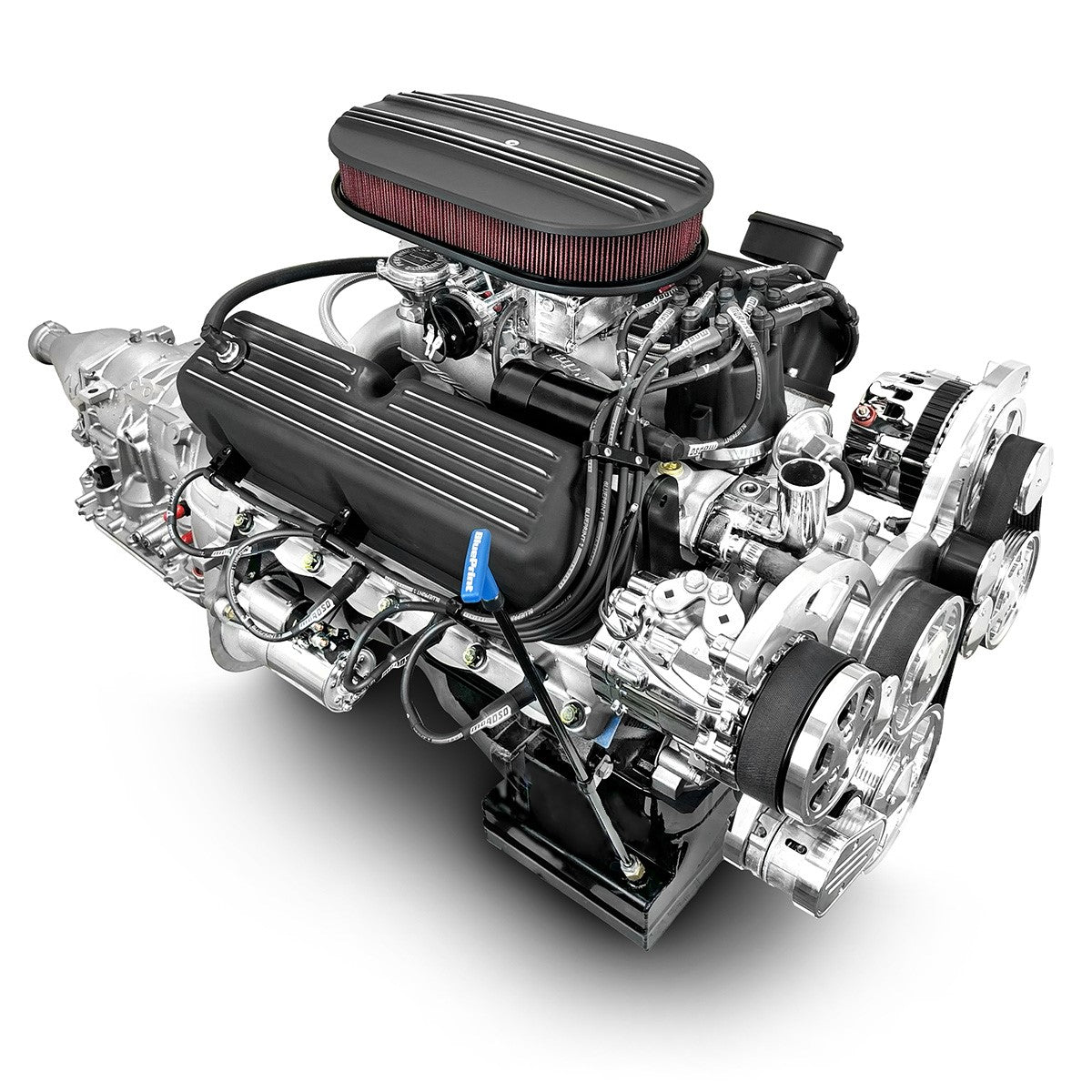

  • PACKAGE SHIPS ASSEMBLED AS PICTURED.
  • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
  • STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

*A bronze distributor gear is NOT recommended on this engine


Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: B302K4R7

Fuel Delivery Type: Carbureted, 600cfm

Spark Plug: BPP7938 NGK 7938 BKR5E (.750-inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP50 - 50 Ounce, 6.4" Diameter

Flexplate/Flywheel: 50 Ounce Weighted

Stall Converter: 1800-2200 rpm

Intake Manifold: Dual Plane, Satin Aluminum

Fuel Recommendation: 87+ Octane Approved

Timing (Initial/Total Advance): Initial Timing - 10-16° and Total Timing 32-34°

Firing Order: 1,3,7,2,6,5,4,8

Recommended Break in Oil: BPP710 (Click Here)

Recommended Service Oil: BPP10W30 (Click Here)

Recommended Oil Filter: BPP21085 or BPP51515 (Click Here)

Header Partners:
Click here for our Header Partners and recommendations.

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

BETTER THAN THE REST.

At BluePrint Engines, customer satisfaction is our highest priority. Every engine is built using high-quality components, with each rotating assembly balanced to within two grams of specification. Before shipment, every crate engine is dyno tested and certified to ensure it is ready to deliver the horsepower and torque you expect.

To stand behind that level of quality, BluePrint Engines offers industry-leading warranty coverage, providing confidence and peace of mind whether the engine is installed by an individual or a professional installer. Our standard warranty is fully transferable, adding long-term value and reassurance for our customers.

Warranty Coverage Details:

  • BluePrint Engines (including Builder Series)- Standard Warranty 30 months or 50,000 miles (parts and labor)*
  • BluePrint Engines Extended Warranty- 48 months or unlimited miles (parts and labor)*
  • Race / Motorsports Engines -No warranty
  • Marine Engines- 12 months (parts and labor)
  • Short Blocks-12 months (parts only)
  • Bare Blocks- 6-Month Unaltered
  • International Sales- Warranty coverage is handled by the in-country distributor

*Applies to eligible engine part numbers beginning with “B” or “P.” Warranty coverage is subject to terms and conditions. Proper installation and maintenance are required.

Please refer to full warranty documentation for complete details click here.

IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
