SKU: B383FK4WD

GM Small Block Compatible 383 c.i. Engine and 700R4 Automatic Transmission 4WD Ready - 405 Horsepower - Truck Edition Builder Series - Polished Pulley Kit - Fuel Injected

SKU: B383FK4WD

Horsepower & Torque: 405 Horsepower / 458 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050 – 114° LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank – 3.750" Stroke and 5.700" Rods

Fuel Recommendation: 91+ Octane

Regular price $18,999.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

  • Horsepower & Torque: 405 Horsepower / 458 FT. LBS. Torque
  • Compression Ratio: 10.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Cast Crank
  • BluePrint Engines Hypereutectic Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.000" Bore

Rotating Assembly:

  • Cast Crankshaft
  • 3.750" Stroke
  • OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .495 Intake / .502 Exhaust Lift
  • 220 Intake / 224 Exhaust Duration
  • @ .050-114 Degree Lobe Separation

Also Includes:

  • Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
  • Pro Series Ready Run Distributor - BPP3503BK
  • Holley Sniper 2 EFI System - BPP550-510-3XX
  • Thermostat Housing - BPP10108470
  • EFI Fuel Pump Kit - BPP5267
  • Air Cleaner - BPP4304BK
  • Thermostat - BPP180TS
  • Spark Plugs - BPP7938
  • Plug Wire Separators
  • Spark Plug Wires
  • Timing Cover
  • Valve Covers
  • Oil Filter
  • Oil Pan
  • Polished Front Accessory Drive - BPP350FDACPS4
    • Reverse Rotation Short Water Pump
    • Type II Power Steering Pump
    • Remote Power Steering Pump Reservoir
    • 140amp 1-wire Alternator
    • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete Transfer Case Ready 700r4 Automatic Transmission Package:

  • 700R4 Complete Package. Features 4wd 27 Spline Stub Shaft, and Transfer Case Ready, 4wd Case.
  • (Accepts common GM 4 Bolt Transfer Case)
  • 2200-2400 Stall Torque Converter
  • Flex Plate
  • Starter

Notes:

  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • Package Ships assembled as pictured.
  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear or sender housing.
  • Does not include a 2wd tail housing. Will have extended 4wd output shaft, designed for transfer case to bolt directly to transmission case.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

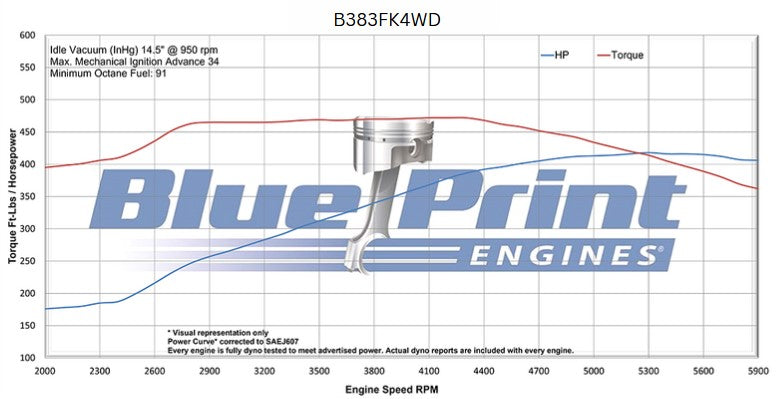

    Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    Part Number: B383FK4WD

    Fuel Delivery Type: Fuel Injected

    Spark Plug: BPP7938 NGK 7938 BKR5E (.750-inch reach, 14mm thread, 5/8 hex, plug)

    Spark Plug Gap: .035"

    Harmonic Balancer: BPP400L - Weighted, 8" Diameter

    Flexplate/Flywheel: Weighted, 1 pc RMS

    Stall Converter: 2400+

    Intake Manifold: Dual Plane, Satin Aluminum

    Fuel Recommendation: 91+ Octane

    Timing (Initial/Total Advance): Initial Timing - 10-16° and Total Timing 32-34°

    Firing Order: 1,8,4,3,6,5,7,2

    Recommended Break in Oil: BPP710 (Click Here)

    Recommended Service Oil: BPP10W30 (Click Here)

    Recommended Oil Filter: BPP51061 (Click Here)

    Total Oil Capacity with Production Oil Pan, and Filter: 5 Quarts

    Header Partners:
    Click here for our Header Partners and recommendations.

    Click here to download a copy of the Installation Guide that came with your BluePrint engine.

    BETTER THAN THE REST.

    At BluePrint Engines, customer satisfaction is our highest priority. Every engine is built using high-quality components, with each rotating assembly balanced to within two grams of specification. Before shipment, every crate engine is dyno tested and certified to ensure it is ready to deliver the horsepower and torque you expect.

    To stand behind that level of quality, BluePrint Engines offers industry-leading warranty coverage, providing confidence and peace of mind whether the engine is installed by an individual or a professional installer. Our standard warranty is fully transferable, adding long-term value and reassurance for our customers.

    Warranty Coverage Details:

    • BluePrint Engines (including Builder Series)- Standard Warranty 30 months or 50,000 miles (parts and labor)*
    • BluePrint Engines Extended Warranty- 48 months or unlimited miles (parts and labor)*
    • Race / Motorsports Engines -No warranty
    • Marine Engines- 12 months (parts and labor)
    • Short Blocks-12 months (parts only)
    • Bare Blocks- 6-Month Unaltered
    • International Sales- Warranty coverage is handled by the in-country distributor

    *Applies to eligible engine part numbers beginning with “B” or “P.” Warranty coverage is subject to terms and conditions. Proper installation and maintenance are required.

    Please refer to full warranty documentation for complete details click here.

    IT ALL COMES DOWN TO RESULTS.

    We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

    BRAGGING RIGHTS INCLUDED!

    A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!

    This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
