- HP & Torque: 415 HP / 415 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Steel Crank
- Forged Pistons
NEW BluePrint cast iron block
1-Piece rear main seal
- New BluePrint Cast steel crankshaft
- 3.400" Stroke
- Forged I-beam 5.400" connecting rods
- Forged pistons
- 28oz External balance
- BluePrint Aluminum Cylinder Heads -HP9009
- 60cc chamber
- 2.02" intake/1.60" exhaust valves
- 190cc intake/65cc exhaust runners
- Cam Type: Roller
- .543 Intake
- .554 Exhaust & 218 Intake
- 226 Exhaust duration @ .050 - 112-degree lobe separation
- 34 Degrees Total at 3500 RPM
- Dual plane, satin aluminum intake manifold
- 600 CFM Carburetor
- Pro Billet Distributor
- Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
- 7 Quart oil pan
- Electric Fuel Pump
- Installed Complete Front Accessory Drive With A/C, P/S, Alternator, WP, Belts, Pulleys.
- Thermostat and thermostat housing
Assembled with Complete 4R70W Automatic Transmission Package:
- Includes Electronic Transmission Controller
- Transmission built to 650 HP
- 2200-2600 Stall Torque Converter
- Flex plate
- 4 Speed, Overdrive transmission w/Lockup
- GEAR RATIOS
- 2.75 1st
- 1.55 2nd
- 1.00 3rd
- .070 4th
- Does not include TPS, as varies with carb or EFI type. Recommend Caspers Electronics TPS Breakout Harness PN 108103 for use with Sniper.
- Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.

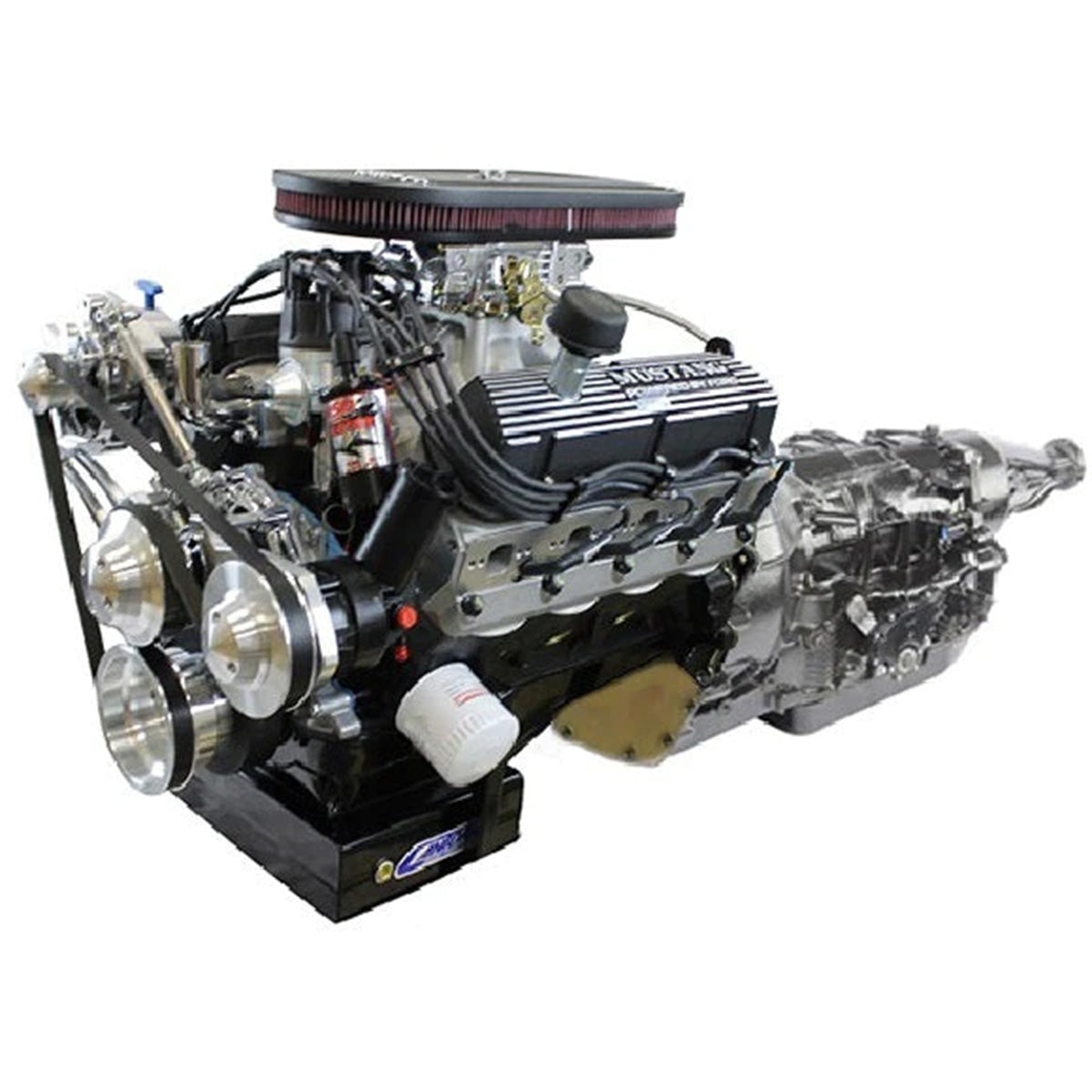

- Package Ships assembled as pictured.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
Engine Accessory Specifications
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
