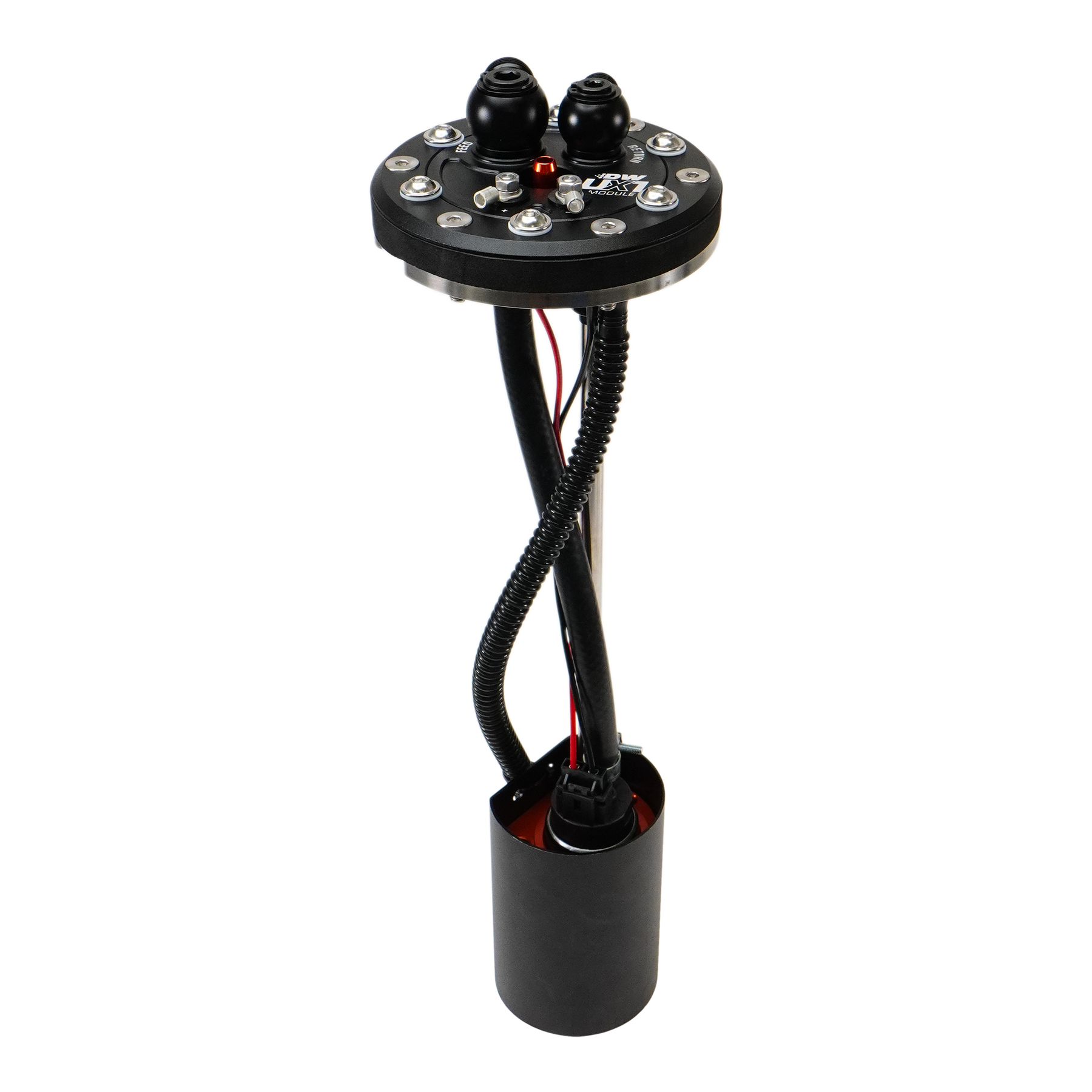

BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style
BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style
BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style
BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style

BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style

SKU: BPP12130

BluePrint Engines EFI In-Tank Retrofit Fuel Pump - 340 LPH - Return Style

SKU: BPP12130
Regular price $549.00
/
  • Secure payments
  • Financing available at checkout with Affirm

Description:

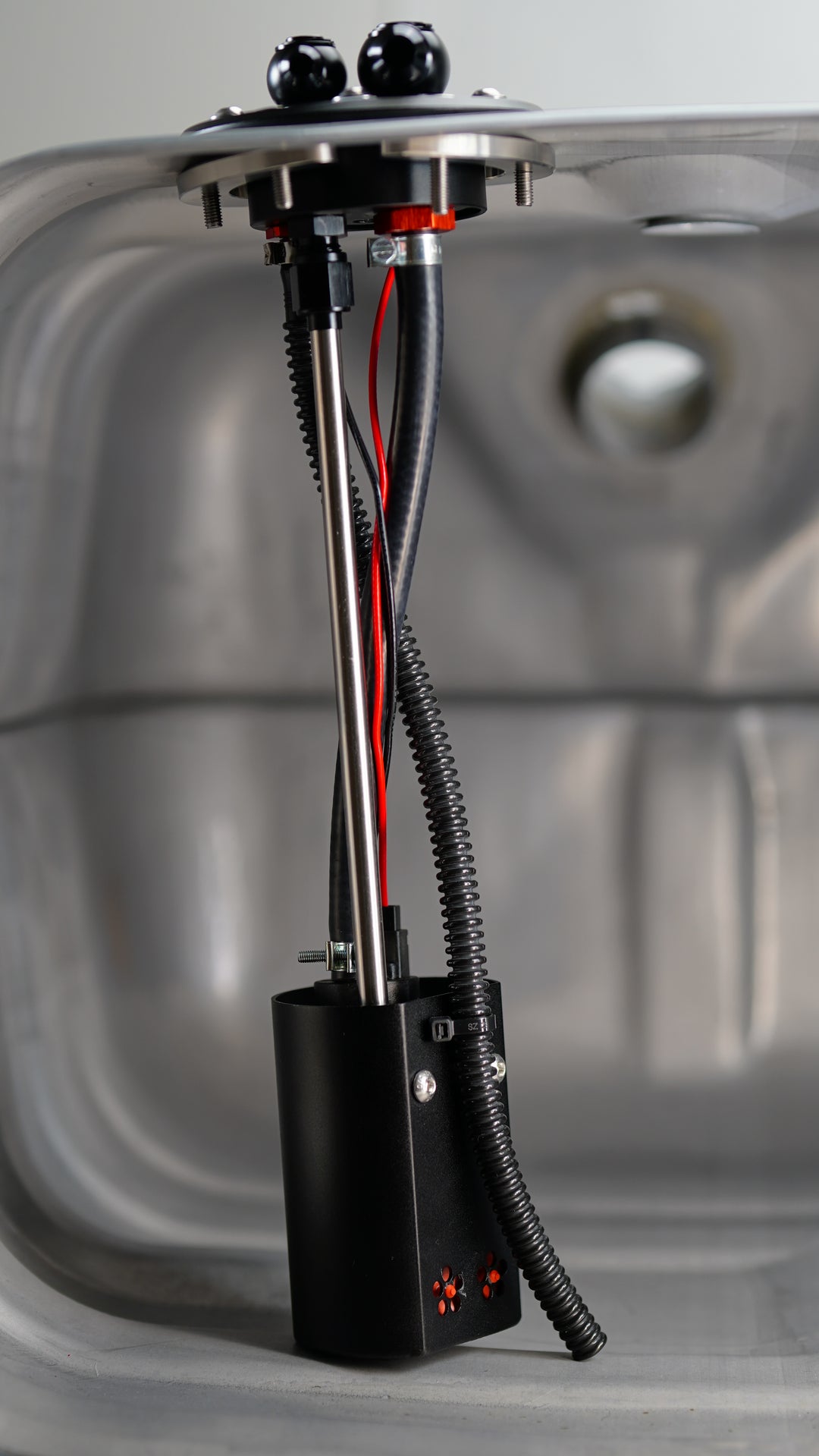

Make fueling your BluePrint engine swap a breeze with our in tank retrofit modules. These simply install into your existing fuel tank, without having to purchase an expensive EFI conversion tank or convert to a fuel cell. Featuring a new design, AN fittings vs inferior NPT threads, and an industry leading depth option from 7-20 inches, these powerful and quality manufactured units are suitable for high horsepower EFI and carbureted engines.  Must be installed with quality return style regular, such as BluePrint Engines regulators BPP13101BK, BPP13109BK for EFI applications, or BPP13206BK for carbureted applications. Excellent for muscle car/truck applications the originally featured a carbureted engine, and you’re upgrading to something like a BluePrint LS, or gen III Hemi. Overall protrusion height from the tank has been reduced with unique swivel banjo style AN fittings to add maximum tank to body clearance.


    Features and Benefits:

    • Free Flow Rate: 340 LPH / 90 GPH
    • Maximum Pressure (psi): 100 psi
    • Outlet Attachment: Male Threads
    • Outlet Size: 8AN Flare
    • Outlet Quantity: One
    • Return Attachment: Male Threads
    • Return Size: 6AN Flare
    • Return Quantity: One

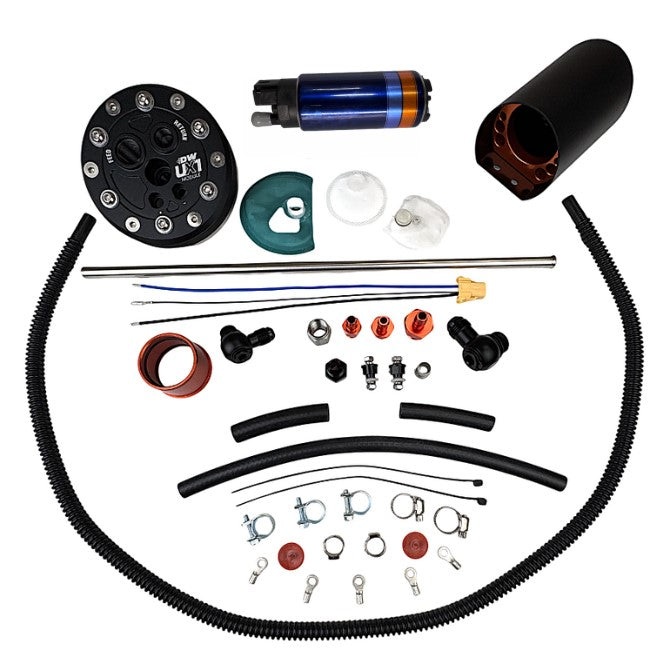

    • Quantity: Sold as a Kit
    • Install Depth: Designed for use with 7.00 in. to 20.00 in. deep tank.
    • Supports up to 780 HP EFI on Pump or Race Gas
    • Supports 600HP EFI on E85
    • Supports up to 850 HP carb on Pump or Race Gas
    • Supports 680HP carb on E85
    • Must be used with a Return Style Regulator such as BPP13101BK, BPP13109BK or BPP13206BK
